How To Choose Dialyzer Production Line

Transitioning from manual or semi-automated processes to a fully automated manufacturing setup represents a massive, capital-intensive decision. Medical compliance standards remain absolute. Production yield targets cannot be compromised. Facility managers face distinct engineering hurdles every day. Producing modern dialyzers introduces unique challenges regarding delicate fiber bundle handling. Precision potting mechanisms dictate product viability. Sterile barrier integrity requires flawless execution across every step.

Plant managers and procurement teams require a pragmatic, vendor-neutral framework to evaluate complex systems. This guide delivers clear evaluation criteria for modern systems. We help you balance aggressive UPH (Units Per Hour) claims against real-world scrap rates. You will learn to navigate stringent validation requirements confidently. Our objective is straightforward. We want to ensure you select equipment prioritizing regulatory compliance and verifiable, long-term yield. You can critically assess every critical micro-process to secure lasting manufacturing success.

Key Takeaways

• High production speed (UPH) must be weighed against Overall Equipment Effectiveness (OEE) and strict scrap-rate guarantees.

• Choosing between a turnkey plant solution and modular dialysis assembly line equipment depends on existing infrastructure and cleanroom constraints.

• Vendor credibility is heavily tied to their ability to provide comprehensive validation documentation (IQ/OQ/PQ) compliant with FDA and MDR standards.

• Precision in micro-processes—such as bundle insertion and housing sealing—dictates the clinical safety and biological compatibility of the final dialyzer.

The High Stakes of Automated Dialysis Manufacturing

Scaling production to meet global renal care demand creates constant operational tension. Facilities must increase throughput aggressively. However, you must simultaneously maintain strict zero-defect quality control. Medical manufacturing leaves zero room for error. A single compromised dialyzer threatens patient safety directly. The business problem centers on balancing this high-speed output against absolute clinical reliability. Selecting a reliable dialyzer production line ensures you navigate this tension successfully.

Choosing subpar manufacturing equipment introduces severe hidden costs. The initial capital expenditure often masks the true operational burden. Poor equipment design leads to astronomical scrap rates. Delicate hollow fibers suffer damage during rough automated insertion. Micro-leaks develop during inconsistent potting phases. These failures force entire batches into quarantine. Cleanroom contamination issues cause unpredictable production halts. Substandard pneumatics release particulates into controlled environments. You pay for these failures through lost capacity and wasted raw materials.

A successful equipment investment requires a broader perspective. You must measure success by long-term Overall Equipment Effectiveness (OEE). Predictable maintenance cycles provide immense operational value. Seamless regulatory audits validate the equipment design choices. Initial CAPEX represents only a fraction of the story. Sustainable yield dictates the actual viability of your manufacturing strategy. We evaluate systems based on their ability to run continuously without degrading product quality.

Evaluating Core Capabilities in a Dialysis Assembly Line

Material handling represents the most critical mechanical challenge. The system must cut, weigh, and insert hollow fiber bundles perfectly. Hollow fibers feature fragile semi-permeable membranes. Rough handling crushes these microscopic pores. Gripper mechanisms must utilize precise force control. The automated insertion process cannot compromise structural integrity. Even minor fiber buckling reduces the effective clearance rate of the final medical device. We demand visual verification sensors at every insertion station.

Potting and curing precision directly impacts patient safety. Automated centrifuge systems must distribute polyurethane resin evenly across the fiber header. The chemical curing reaction is highly exothermic. Precise dispensing prevents structural leaks. It also ensures strict biological compatibility by preventing unreacted monomers from entering the blood pathway. Unbalanced centrifuge spinning causes micro-vibrations. These vibrations shear delicate fibers near the housing wall. You must verify centrifuge balance tolerances rigorously.

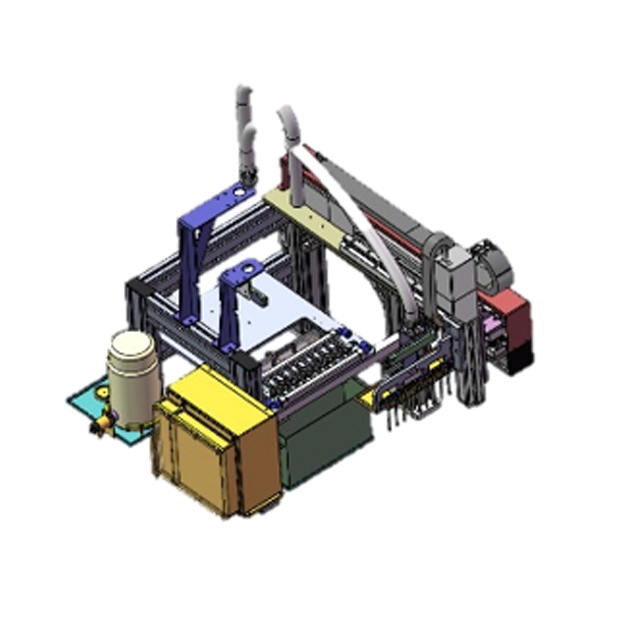

Coating processes demand microscopic precision. Many advanced dialyzers require specialized fiber treatments. Manufacturers frequently integrate an additive spraying machine to handle these steps. This equipment applies hydrophilic agents directly to the membrane. It dispenses exact doses of anticoagulants. Advanced fluid dispensing nozzles prevent dangerous overspray. Overspray causes housing contamination. Underspray compromises clinical efficacy. Strict environmental controls around the dispensing zone maintain chemical stability.

We demand automated, non-destructive testing at critical junctions. Relying on manual batch sampling is no longer acceptable. In-line quality control requires 100% testing coverage. Modern lines utilize specific automated inspection methods.

• Dry Leak Testing: Uses pressure decay methods to identify microscopic housing fractures.

• Visual Camera Inspections: Detects individual fiber occlusion and housing discoloration.

• Flow Rate Verification: Ensures the dialysate pathway remains completely unobstructed.

• Resin Penetration Scans: Checks potting depth to guarantee a secure fiber seal.

Turnkey Systems vs. Modular Dialyzer Automation Equipment

Facility managers face a fundamental architectural choice. You must choose between purchasing a complete turnkey plant or deploying modular dialyzer automation equipment. Turnkey solutions offer a single point of accountability. A single vendor guarantees systemic integration across all stages. Standardized control software runs the entire factory floor. Data flows seamlessly from the resin mixing station to final packaging. However, turnkey plants demand a significantly higher upfront investment. They offer less flexibility to retrofit around existing floor plans or structural columns.

Modular or phased automation provides a different strategic advantage. You deploy capital gradually based on immediate needs. Facilities can target specific production bottlenecks easily. You might automate only the potting phase while keeping packaging manual. This approach suits growing companies upgrading legacy facilities. Yet, modular systems carry higher integration friction. You risk communication failures between different OEM PLCs. Disparate data management systems often struggle to merge batch records cleanly. You must assign internal engineers to manage these handshake protocols.

Selecting the right path requires careful environmental and operational analysis. We rely on a specific decision matrix to guide this structural choice.

Technical and Regulatory Evaluation Dimensions

Cleanroom compatibility represents a non-negotiable evaluation dimension. Equipment design must actively minimize particulate generation. Medical guidelines demand pristine manufacturing environments. You must verify enclosed pneumatic systems. Exhaust air must vent outside the controlled space. Engineers must specify medical-grade stainless steel for all exposed surfaces. Operators require smooth, easy-to-clean machine profiles. Crevices and exposed wire harnesses trap dust and compromise cleanroom integrity.

Data traceability drives modern regulatory compliance. Industry 4.0 frameworks demand robust SCADA integration. The control system must track every parameter automatically. It logs specific resin lot numbers. It records exact centrifuge spin times for every batch. The database captures individual test results for CFR 21 Part 11 compliance. Electronic records demand strict access controls. Operators must authenticate using unique digital credentials. Audit trails cannot be altered. Regulatory bodies scrutinize these exact logs during facility inspections.

A credible vendor acts as a true compliance partner. They supply extensive validation support frameworks. The vendor executes exhaustive Factory Acceptance Testing (FAT) before shipment. They run full batches using your actual raw materials. Once delivered, they manage Site Acceptance Testing (SAT) on your floor. They provide comprehensive Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols.

Watch out for severe regulatory red flags. Vendors leaving validation entirely to the buyer pose enormous operational risks. Building an automated dialysis manufacturing environment requires shared engineering responsibility. Equipment suppliers lacking deep MDR or FDA knowledge will stall your market entry.

Implementation Risks and Operational Challenges

Equipment flexibility determines your actual daily capacity. You must assess realistic changeover times thoroughly. Moving between different dialyzer configurations takes time. Switching from an adult housing to a pediatric housing involves mechanical adjustments. Technicians swap robotic grippers. They recalibrate visual inspection cameras. They modify centrifuge holding fixtures. Lengthy changeovers destroy daily yield. We recommend systems featuring quick-release mechanisms. Tool-less changeovers keep scheduled downtime minimal and predictable.

Analyze reliance on proprietary spare parts. Custom-machined actuators create massive supply chain vulnerabilities. If a proprietary motor fails, your entire line stops until a shipment clears customs. We evaluate equipment based on standard component usage. Integration of commercially available parts from brands like Festo, SMC, or Siemens reduces maintenance delays drastically. Standardized pneumatics and PLCs keep lines running smoothly. Local distributors can supply these standard parts instantly.

High automation still requires highly skilled human oversight. Evaluate the vendor's operator training programs rigorously. Excellent medical consumables automation relies on clear human-machine interactions. Examine the HMI (Human-Machine Interface) usability carefully. Touchscreens must offer intuitive navigation. Alarm management systems need to provide exact troubleshooting steps, not just cryptic error codes. Proper ergonomics prevent operator fatigue during shift changes.

Avoid these common implementation mistakes:

1. Underestimating the facility's compressed air requirements for large pneumatic arrays.

2. Failing to map data handshake protocols between legacy ERP systems and new PLCs.

3. Ignoring ambient temperature fluctuations in the resin potting cleanroom zone.

Shortlisting Vendors: A Buyer’s Checklist

Moving from technical evaluation to vendor selection requires a structured approach. You must penetrate beyond marketing claims. Look for hard engineering data and verifiable field performance. Vendors must prove their mechanical expertise through historical success.

Take these actionable next steps when shortlisting potential equipment partners:

1. Request detailed OEE and scrap rate case studies. Ensure the data comes from similar, high-volume clinical installations.

2. Audit the vendor’s mechanical engineering background directly. Focus specifically on their expertise in fluid dynamics. Examine their historical capability in medical web handling and delicate fiber manipulation.

3. Require a clear, binding Service Level Agreement (SLA). It must detail post-installation support metrics. It should outline preventive maintenance schedules and emergency response times.

4. Review their software development life cycle. Verify their ability to issue secure firmware updates without breaking CFR 21 Part 11 audit trails.

Conclusion

Selecting a manufacturing system is a profound strategic partnership. It extends far beyond a simple hardware purchase. The right choice prioritizes unassailable regulatory compliance. It delivers verifiable, consistent yield across millions of units. It guarantees rigorous data traceability for every medical device produced. You must balance mechanical speed against the absolute necessity of clinical safety.

We encourage you to take immediate action. Start by mapping your exact cleanroom constraints and long-term capacity goals. Download a detailed vendor evaluation scorecard to standardize your procurement process. Contact your internal engineering team today. Schedule a comprehensive site capability assessment to determine whether a turnkey or modular approach fits your future production reality best.

FAQ

Q: What is the standard UPH (Units Per Hour) for an automated dialyzer production line?

A: Production speed varies between modular and full-line setups. Throughput typically ranges from 300 to over 1,200 UPH. However, actual yield depends heavily on curing times. In-line testing parameters also dictate final output. High UPH claims mean little if scrap rates rise proportionately.

Q: How does an additive spraying machine integrate into the assembly process?

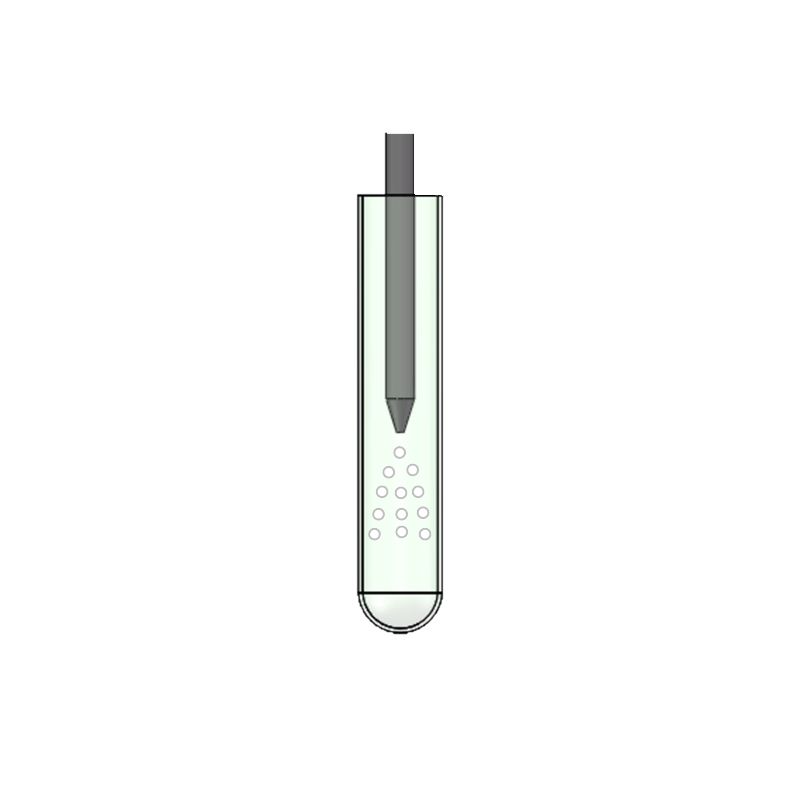

A: It typically positions pre-assembly or post-potting. The system applies precise micro-doses of performance-enhancing solutions directly to the fibers. This operation requires strict environmental controls. Proper integration prevents overspray and ensures uniform fiber coating.

Q: What documentation should a medical consumables automation vendor provide?

A: Credible vendors supply extensive validation paperwork. Essential documents include User Requirement Specifications (URS) mapping. You must receive full FAT and SAT reports. Material certificates for all wetted parts are mandatory. Complete IQ, OQ, and PQ execution frameworks ensure regulatory compliance.

Q: Can an existing manual line be upgraded to automated dialysis manufacturing?

A: Yes, upgrading is entirely possible through a phased modular approach. You might automate fiber insertion first. Dry leak testing is another excellent starting point. Your existing facility must meet necessary cleanroom classifications. Sufficient pneumatic infrastructure is also required to support the new equipment.
