Automatic Blood Collection Tube Assembly Machine

Automatic Blood Collection Tube Assembly Machine, namely the full-automatic blood collection tube assembly machine, is an advanced equipment specially used for assembling disposable vacuum and non-vacuum medical blood collection tubes, and plays a key role in the production process of blood collection tubes.

Quantity:
Availability:





Inquire Add to Basket

Automatic Vacuum Blood Collection Tube Assembly Production Line

Technical Information

1.Applicable Tube Size:
Dia.: 13×75mm; Dia.: 13×100mm

2.Working Speed
12000 – 15000 pcs/hour

3.Dosing Method and Accuracy
Additive name: Gel； Filling range:0.3g~2g ±0.03g； CPK:≥1.33

4.Drying Method
PTC heating with high pressure fan.

5.Cap Specification
The cap and rubber stopper are automatically assembled inline and then loaded into the jig.

Downward type or upward type cap according to customer's requirements.

6.Applicable Foam Tray
Interlaced type or rectangular type foam tray.

7.Power
380-415 V / 50 HZ, 20 KW

8.Compressed Air
Clean Compressed Air Pressure: 0.8 – 1.0 Mpa

Note: As products are constantly updated, please contact us for the latest specifications.

Product Category

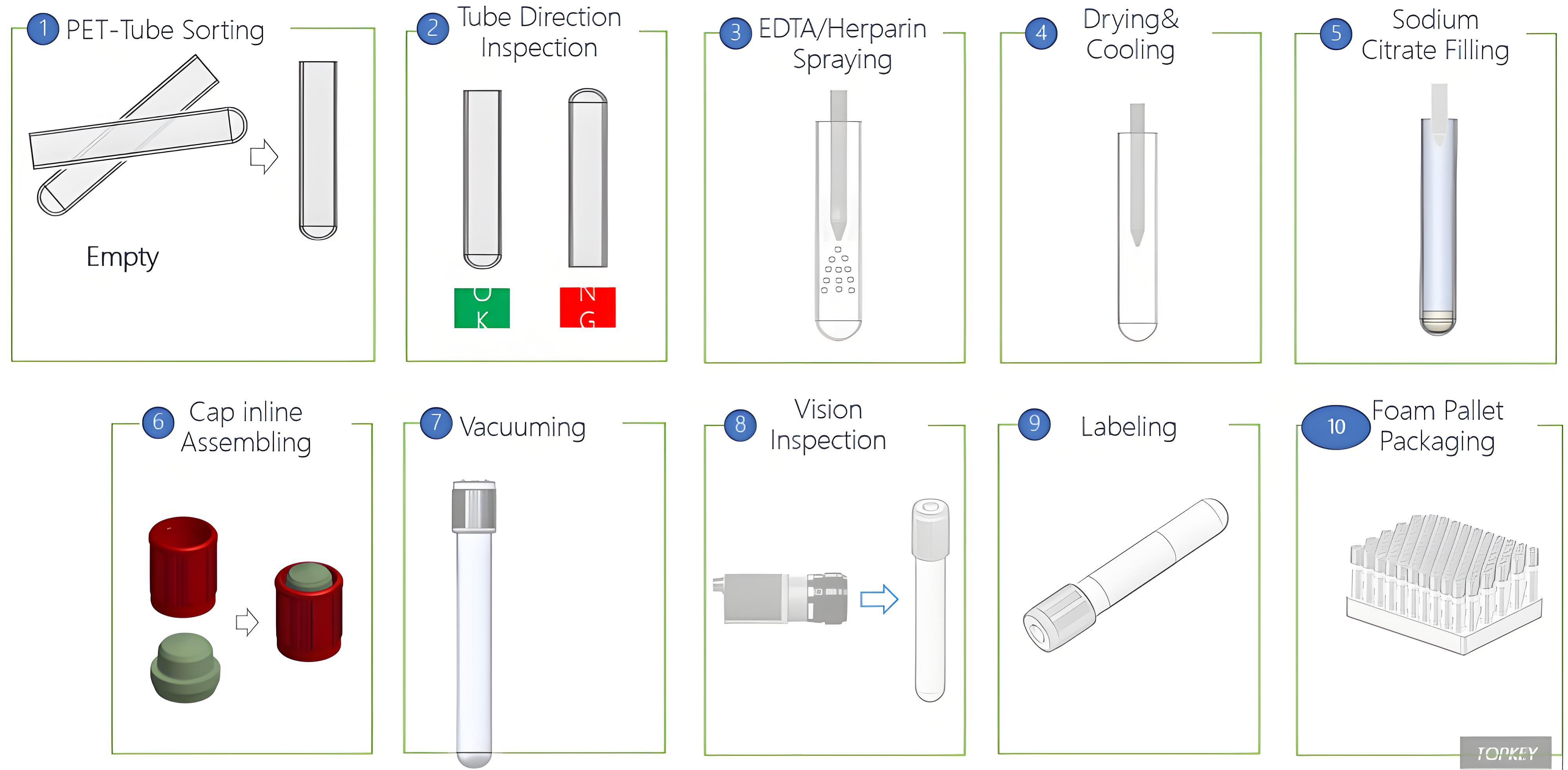

Flow Chart

Step1

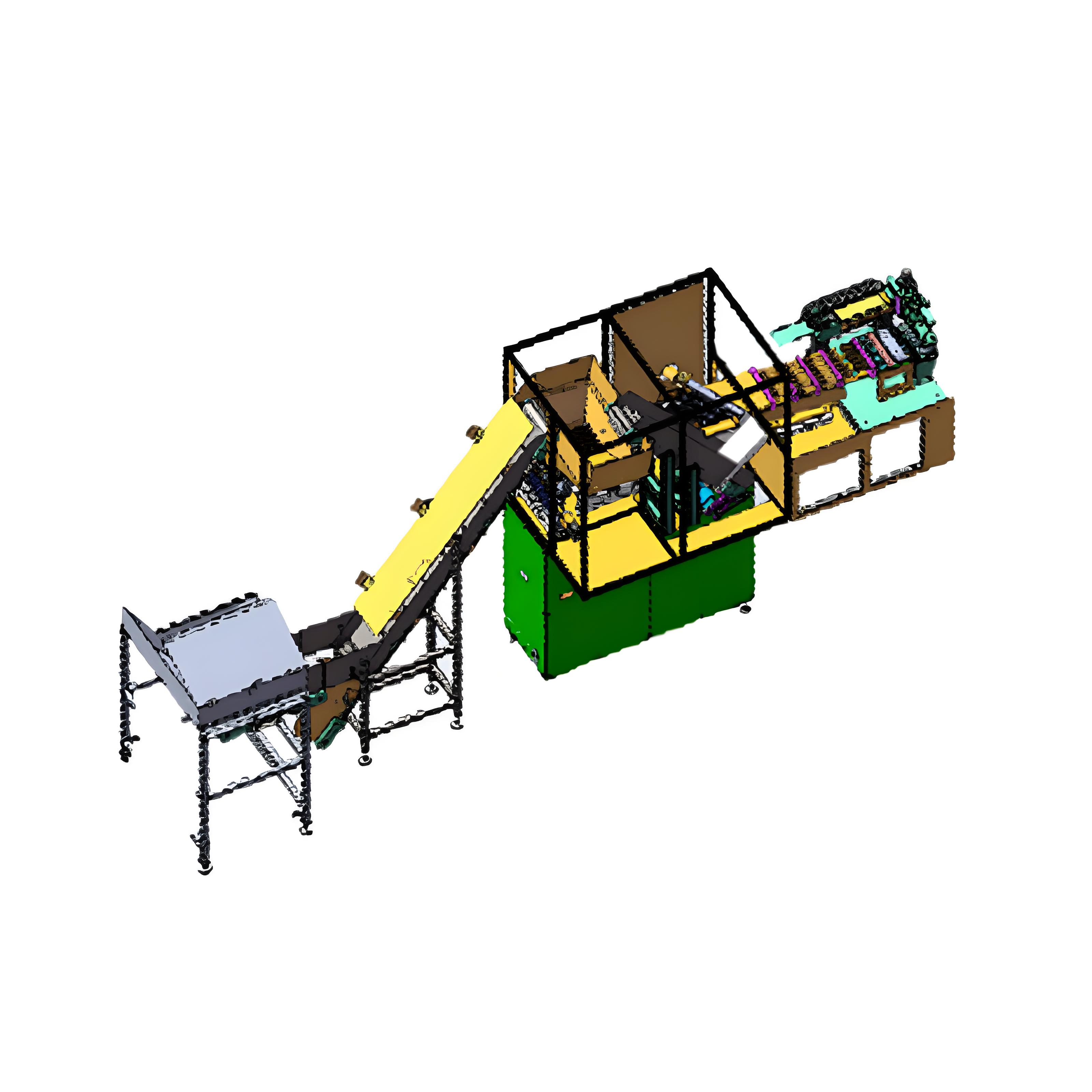

PET-Tube Automatic Sorting
Step 2

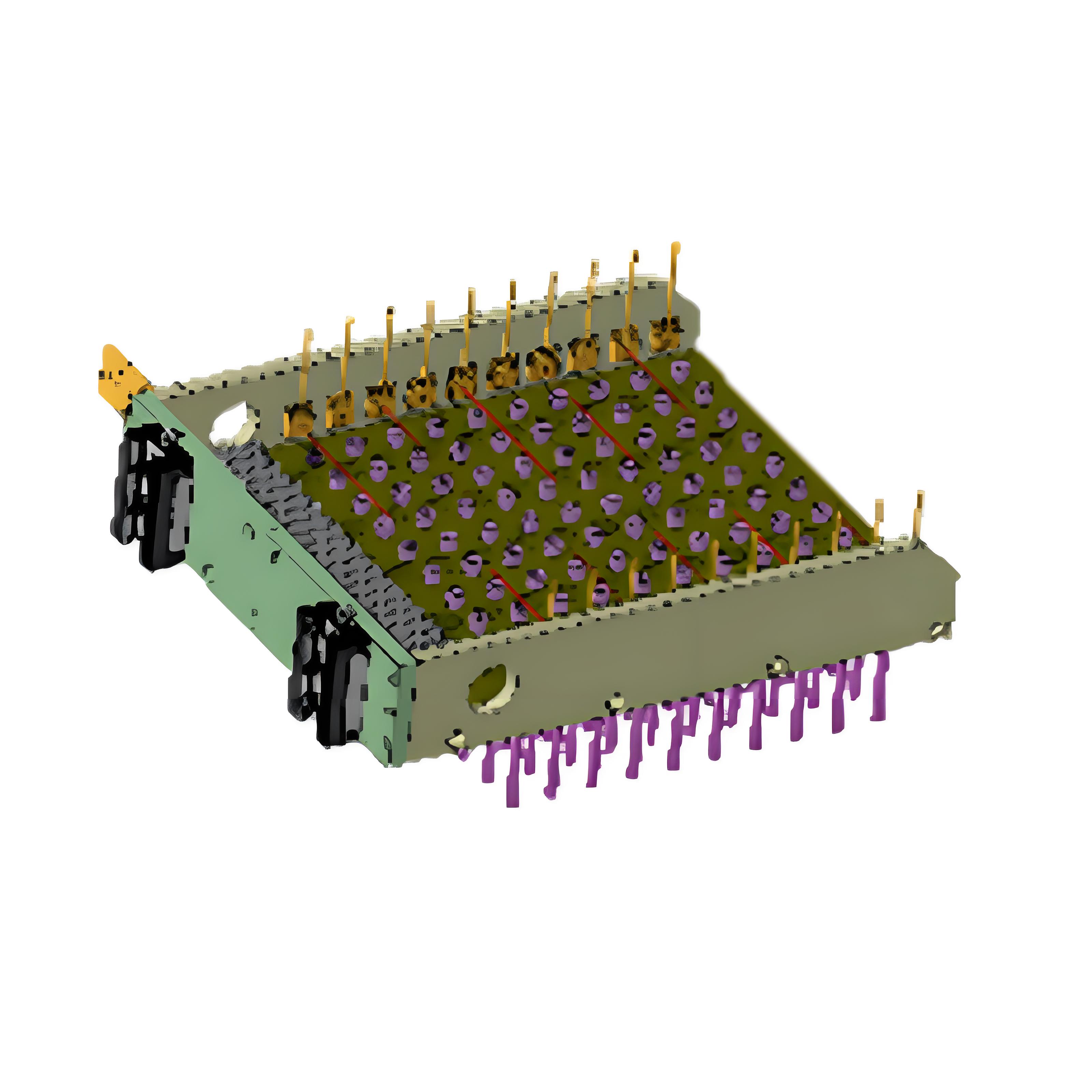

Tube direction Inspection
Step 3

Additive spraing Liquid filling
Step 4

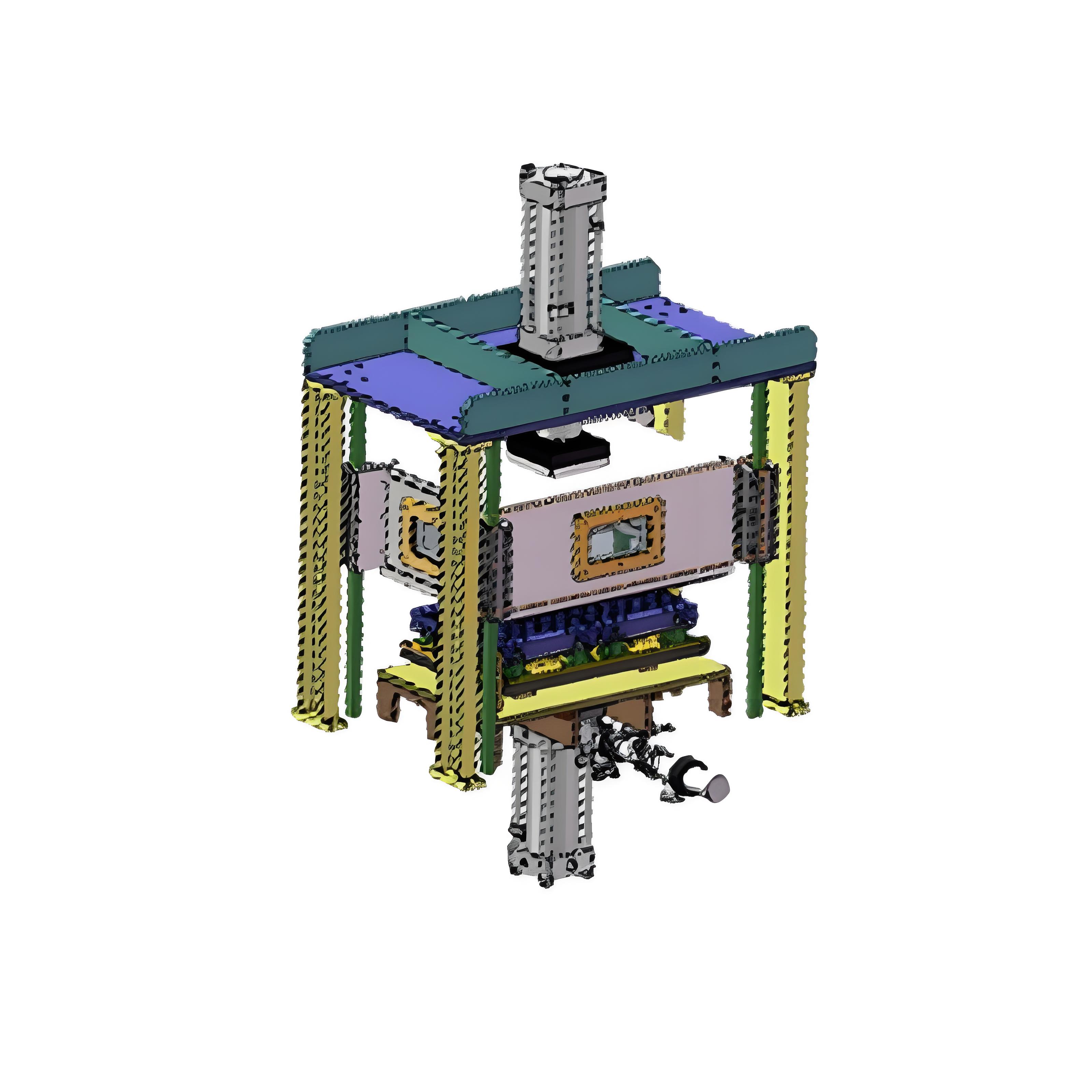

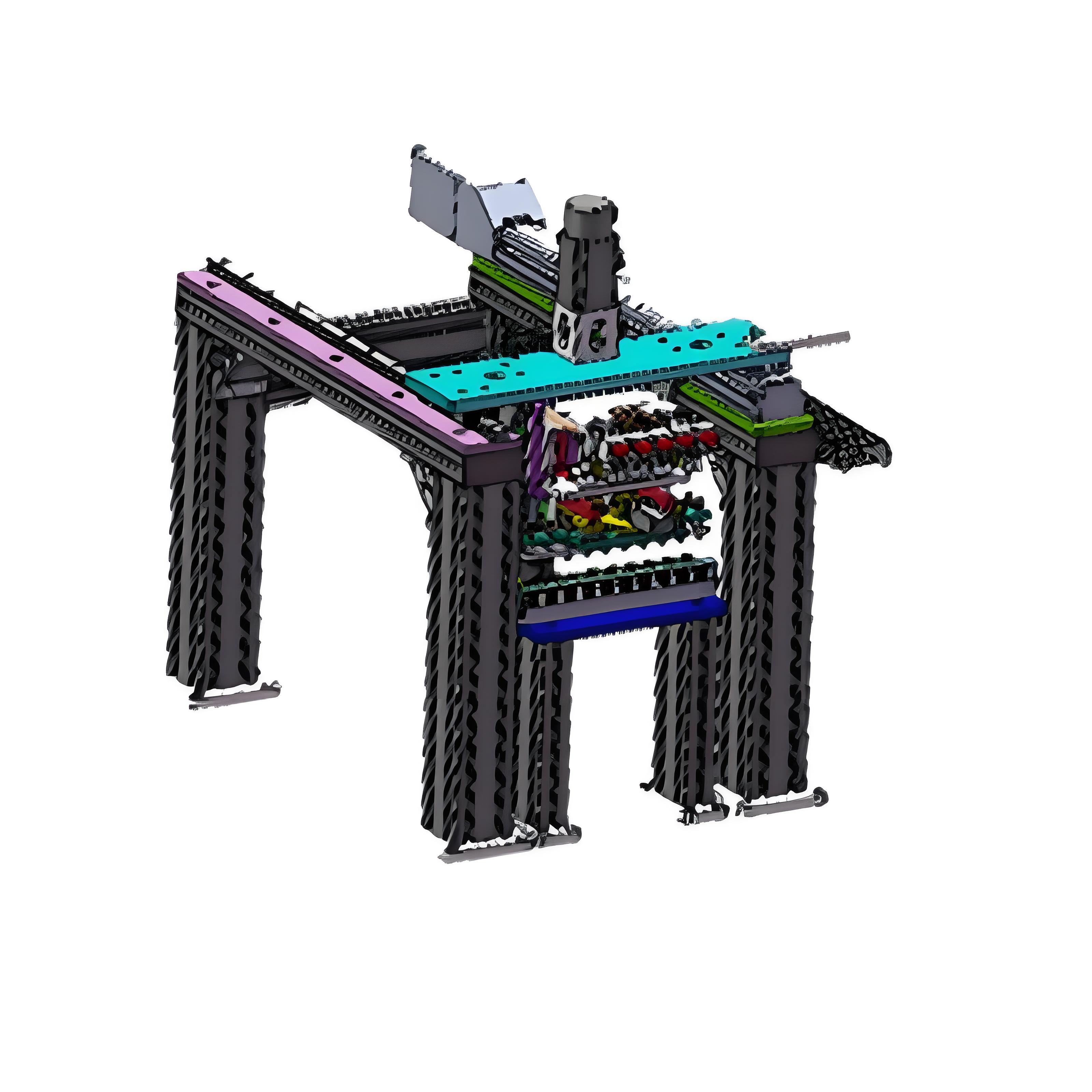

Cap assembling
Step 5

Vacuum system
Step 6

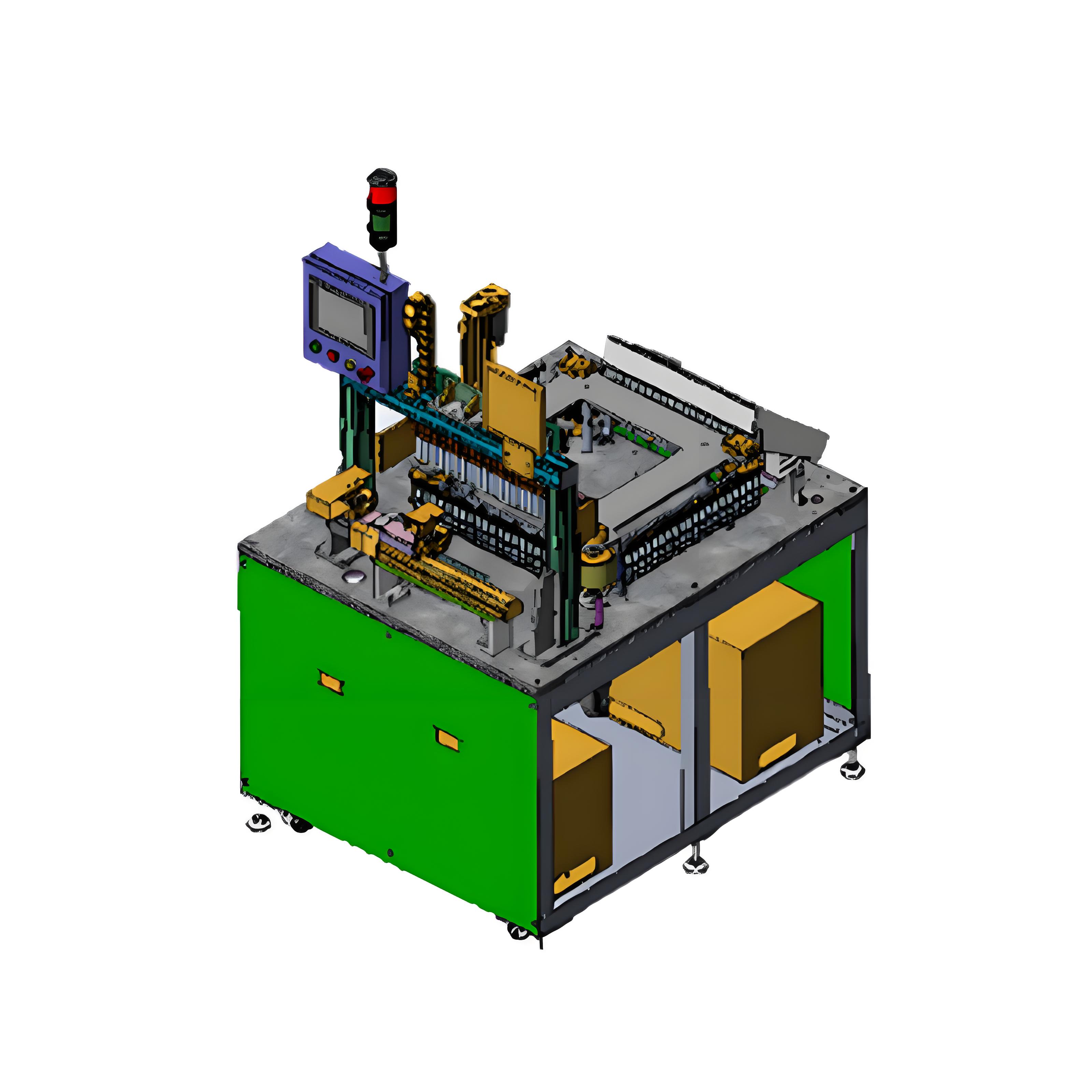

360° Vision Inspection
Step 7

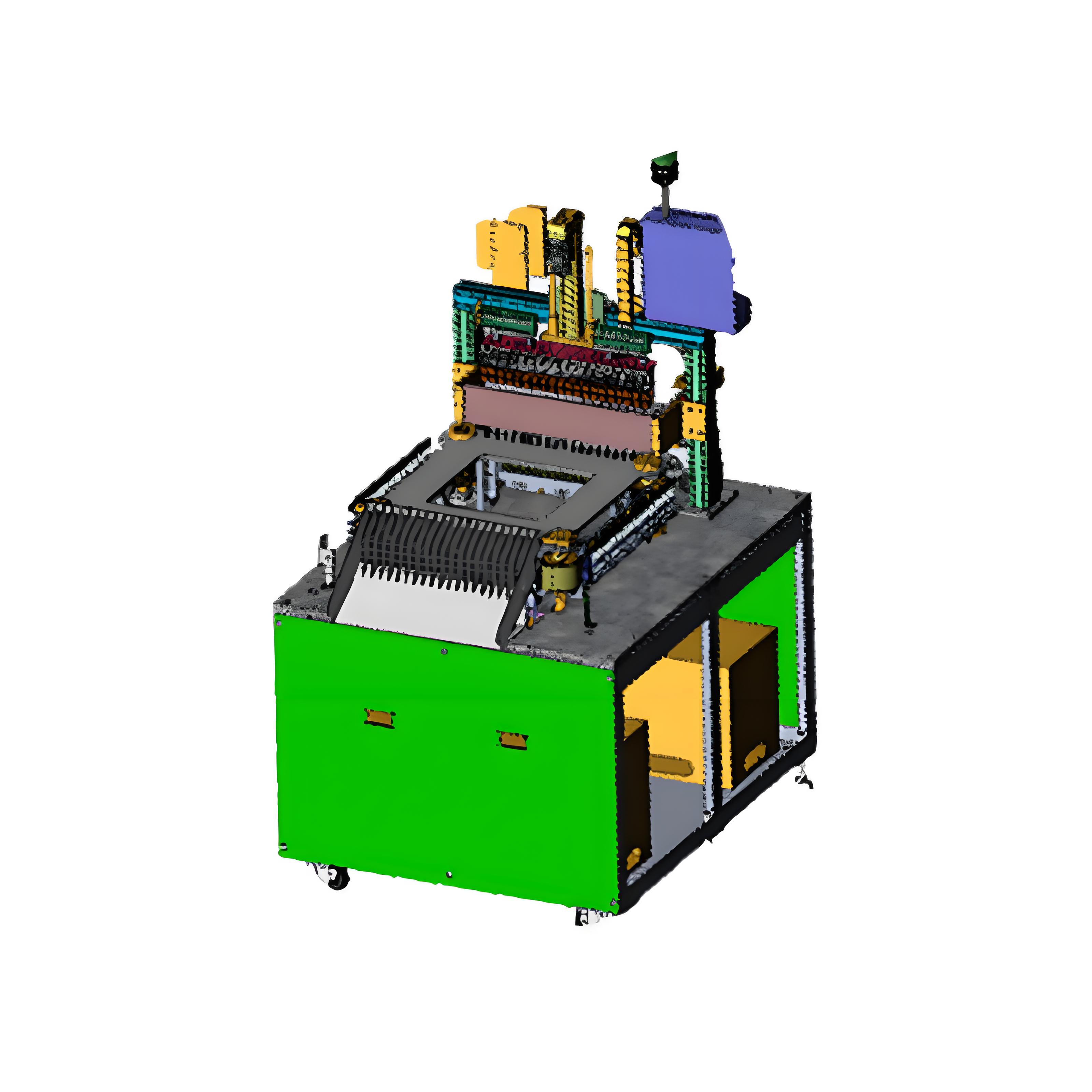

Rejection NG
Step 8

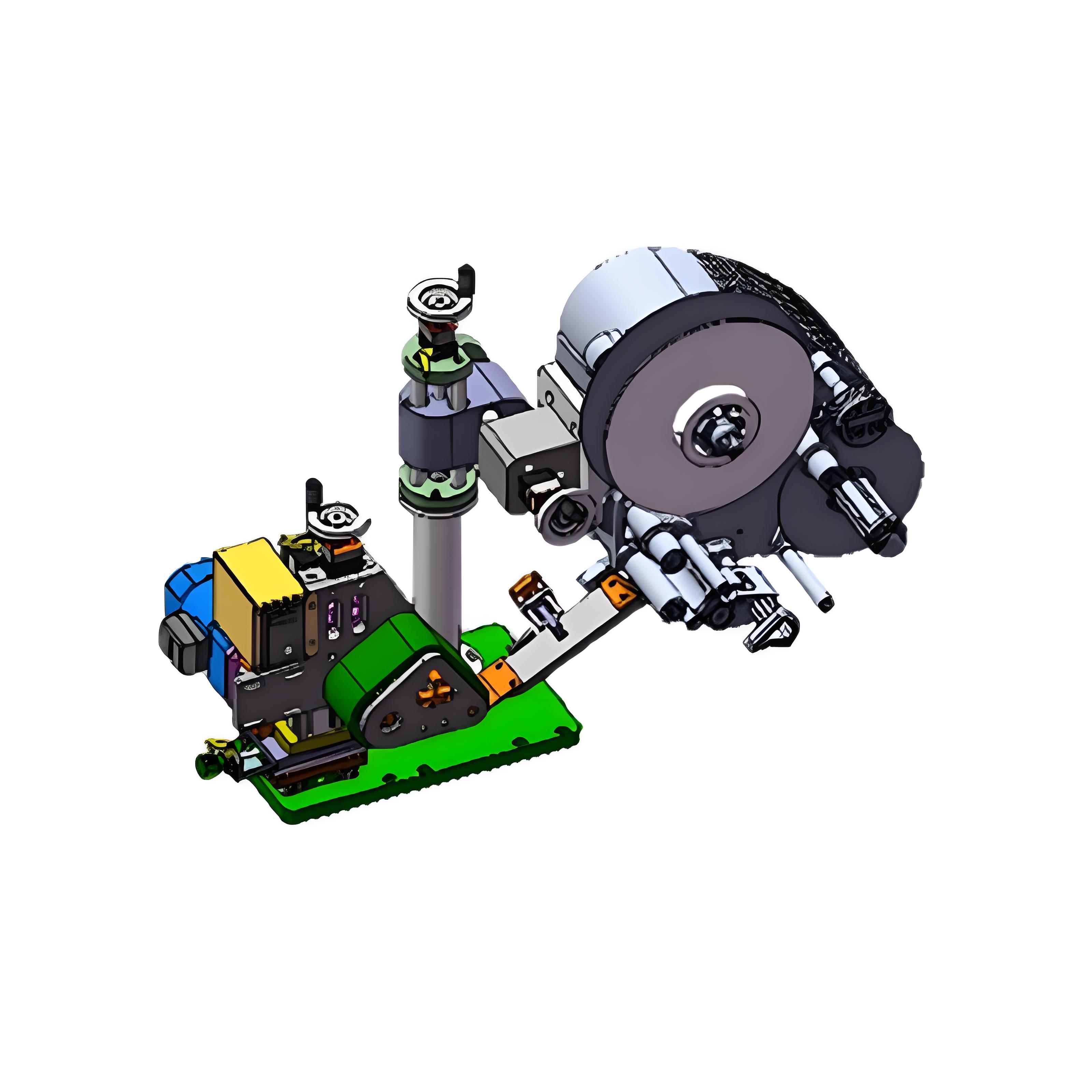

Labeling system
Step 9

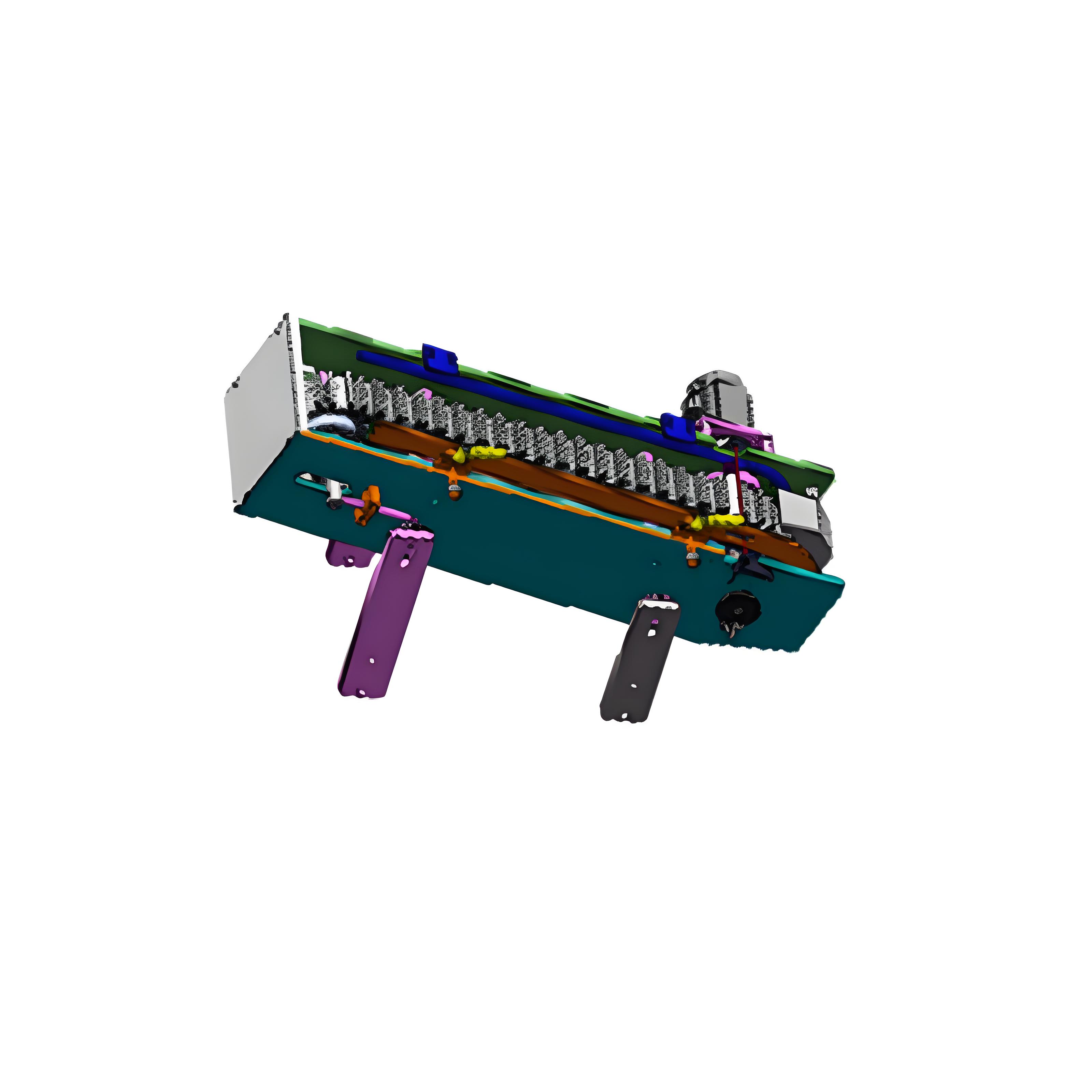

Label inspection
Step 10

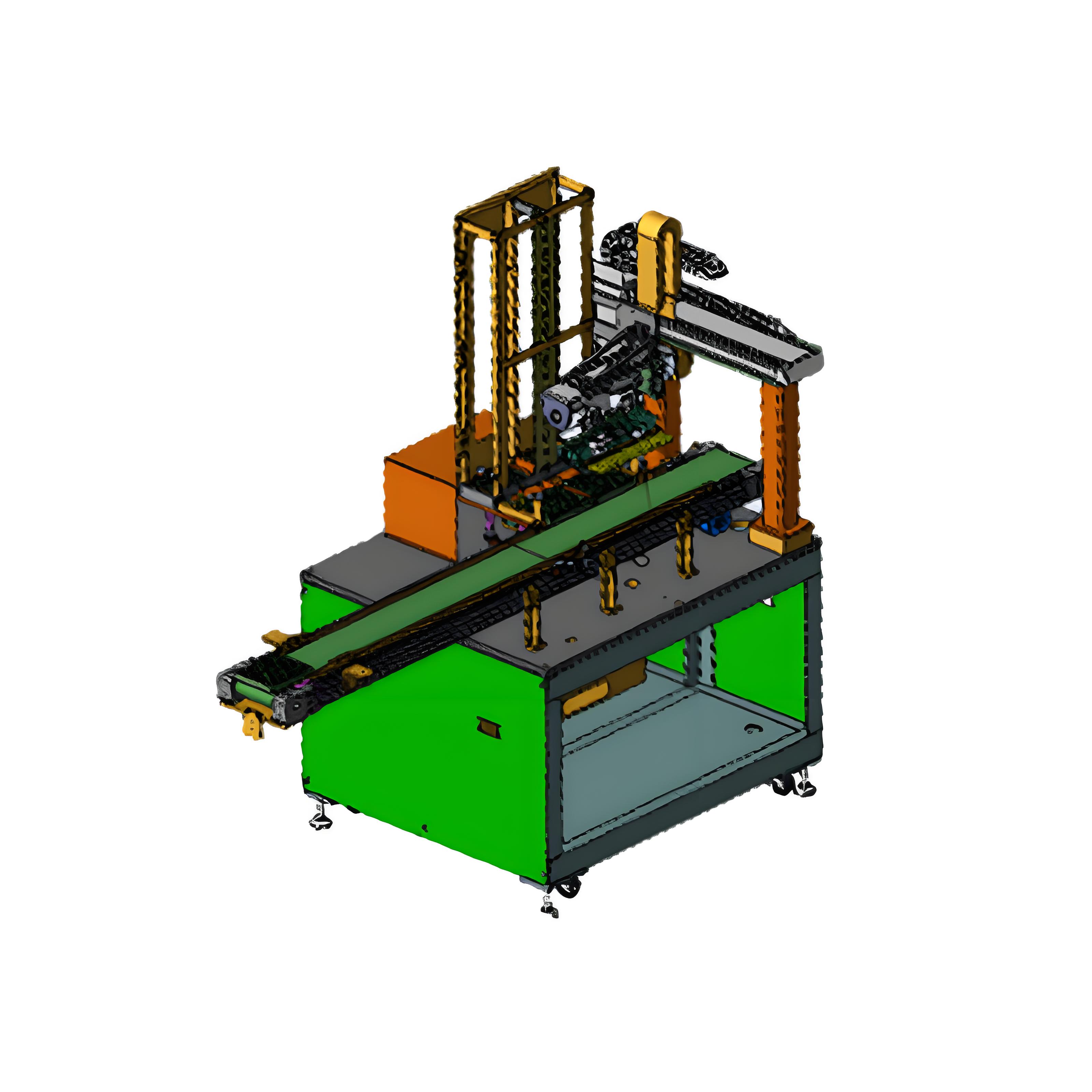

Foam pallet packaging

Core Strengths

1、PET tube soring full automaion
2、High spraying acuracy
3、High gel filling accuracy
4、High vacuum accuracy
5、360° Vision inspecion
6、Flexible labeling system
7、Package automation

Company Introduction

Our Technologies

With numerous qualifications and more than 20 years of continuous development, As a market leader in the automated medical consumables production equipment industry, Topkey-tech is committed to providing advanced smart manufacturing solutions for medical consumables factories.
Core Strengths

With numerous qualifications and more than 20 years of continuous development, As a market leader in the automated medical consumables production equipment industry, Topkey-tech is committed to providing advanced smart manufacturing solutions for medical consumables factories.
Vacuum Blood Collection Tube Assembly Machine

With numerous qualifications and more than 20 years of continuous development, As a market leader in the automated medical consumables production equipment industry, Topkey-tech is committed to providing advanced smart manufacturing solutions for medical consumables factories.

History Timeline

Our Work Statistics

Lorem Ipsum is simply dummy text of the printing and type setting industry.

293

Project Done
305

Happy Clients
2196

Cup Of Coffee
158

Awards Win

BCT Autoline（EDTA、Heparin、Sodium Citrate）

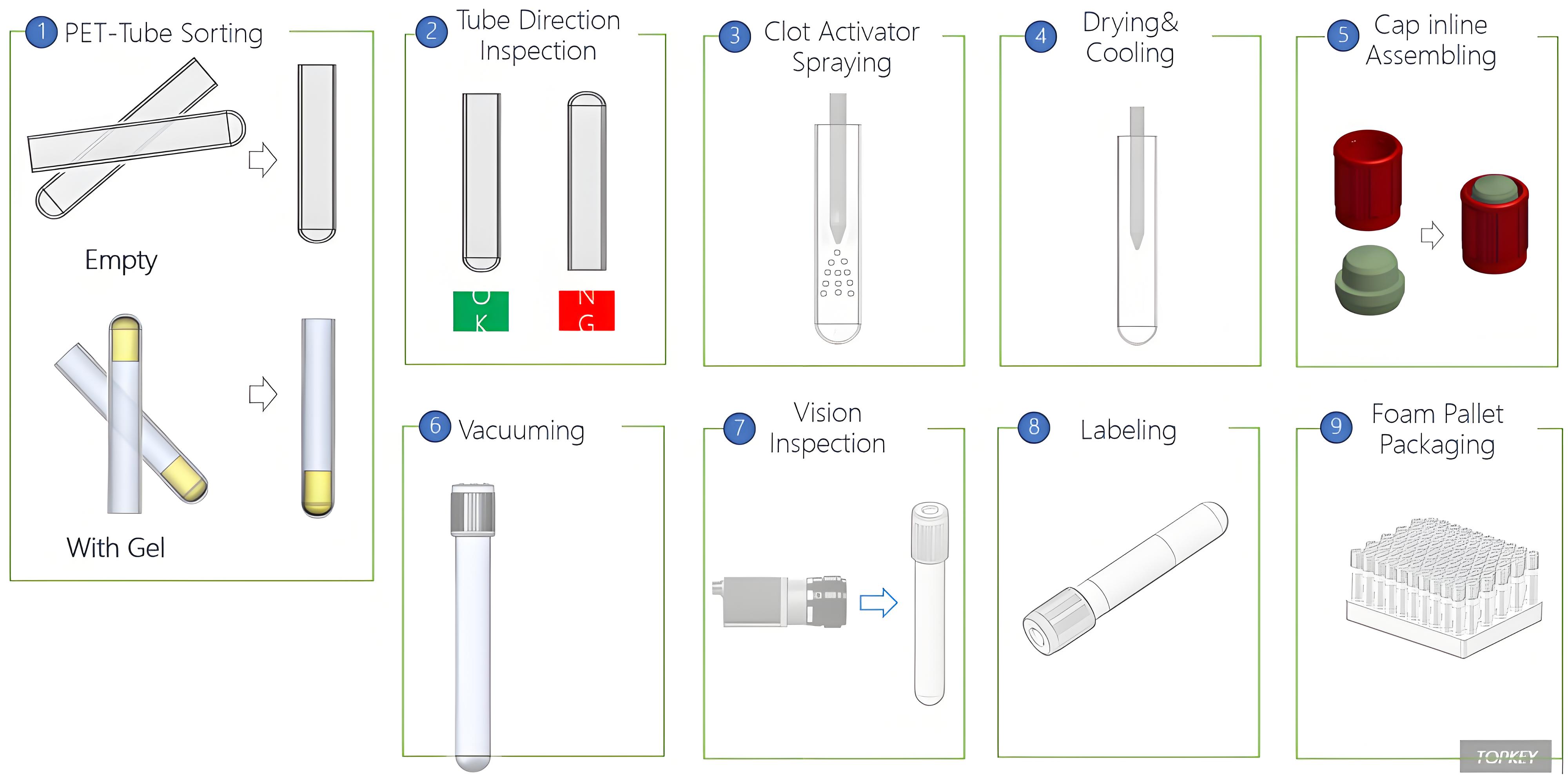

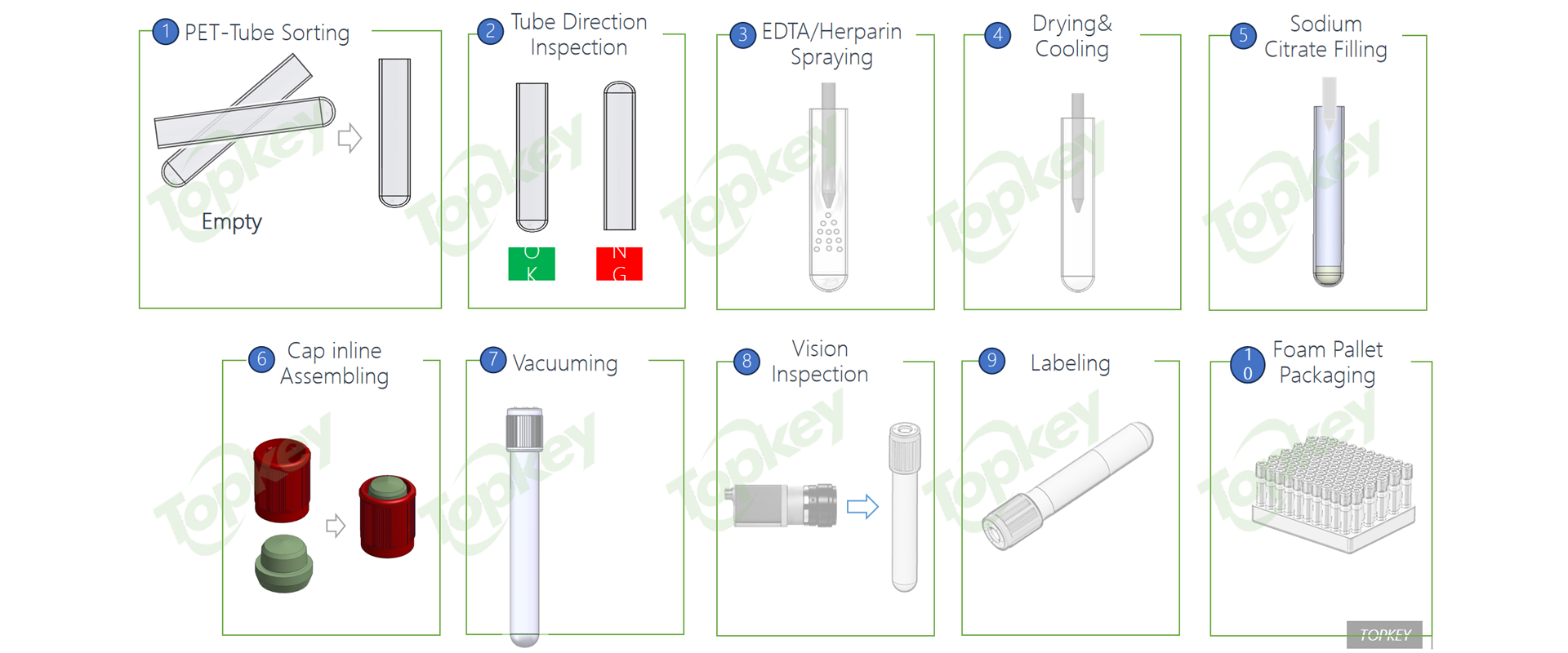

1. PROCESS

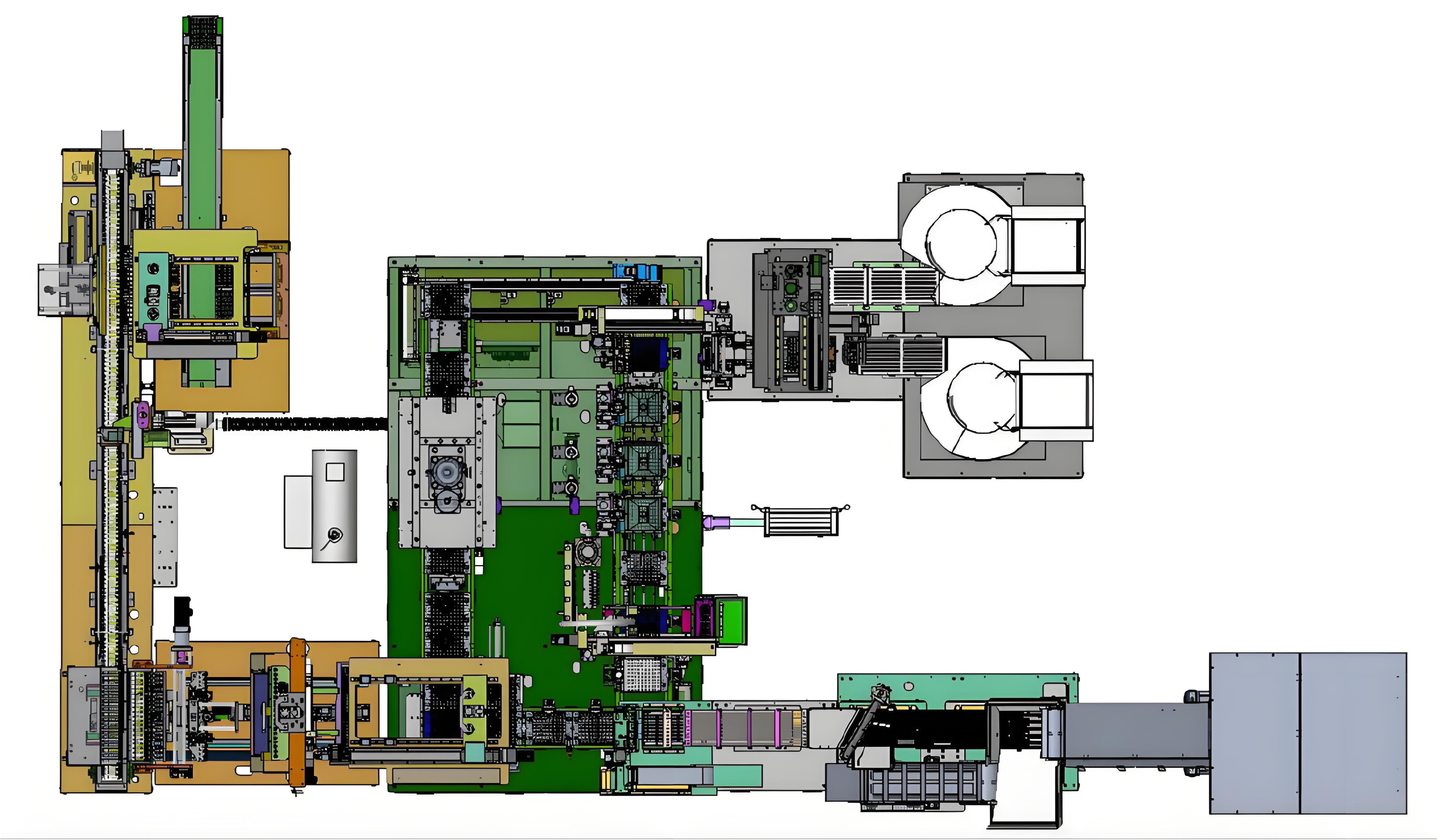

2. LAYOUT AND WORKSTATION

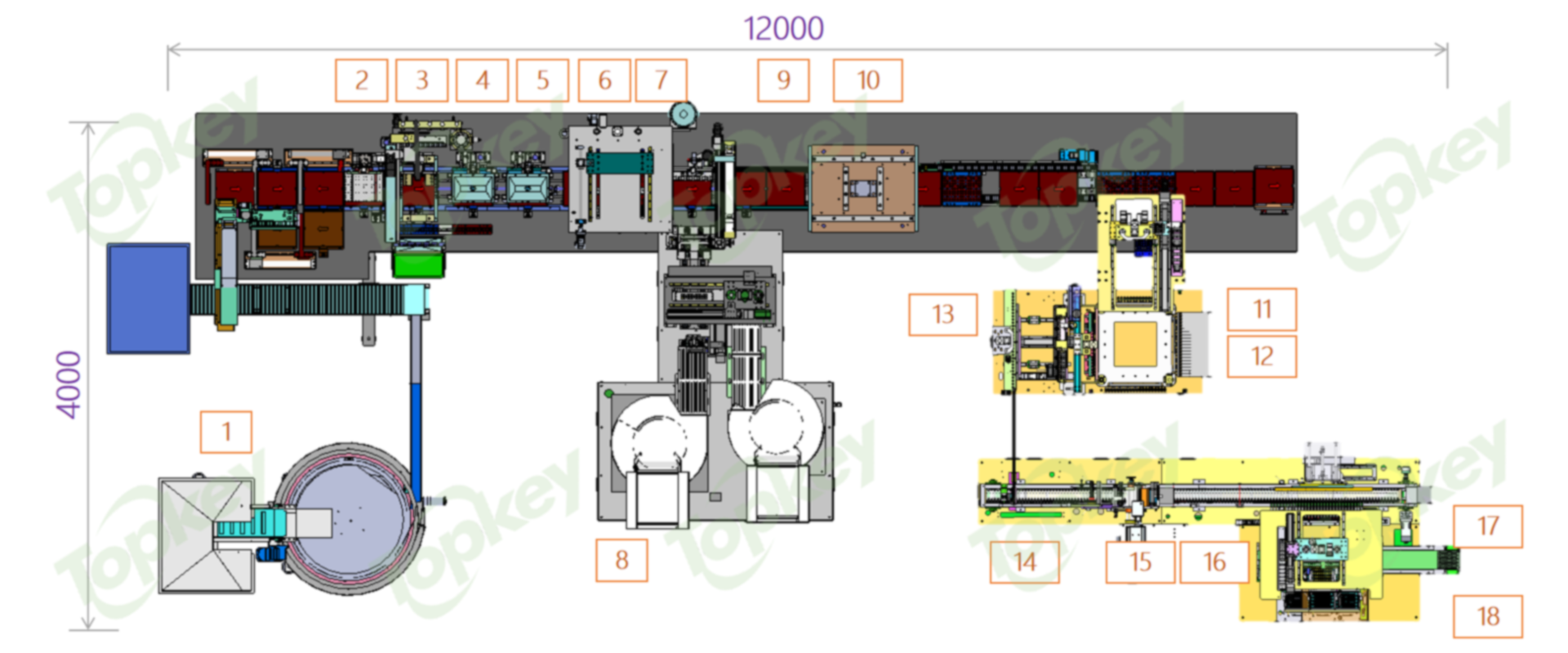

a. Capacity:15000 PCS/H ；Tube Specification：1375mm & 13100mm

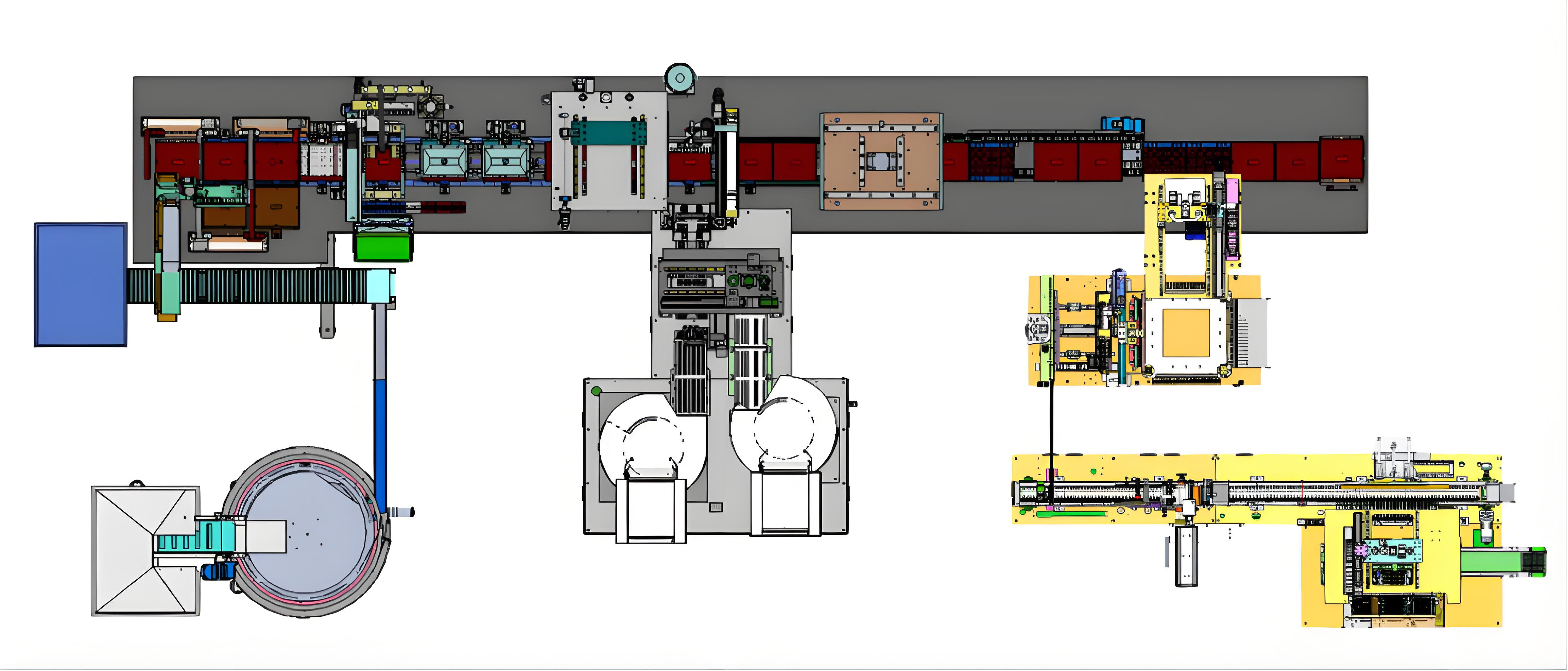

BCT1-15000

No	Workstation Name	Content
1	PET tube auto sorting	Disorganized tubes are automatically sorted and loaded into the jig
2	Tube direction checking	Check the loading direction of the tubes
3	EDTA & Heparin spraying	Spray additives（EDTA、HEPARIN）
4	Drying*1	Drying PET tube moisture
5	Air cooling*1	Cooling PET tube temperature
6	Sodium citrate filling	Filling of sodium citrate with pipette tips
7	Liquid vision inspection	Vision inspection of liquid filling level
8	Cap and rubber plug inline assembly	The cap and rubber stopper are automatically assembled inline and then loaded into the jig
9	Cap vision inspection A	Detecting caps color and quantity
10	Vacuuming	Inline record vacuum peak
11	Cap vision Inspection B	Check the assembly height and defects of the caps
12	Tube bottom vision Inspection	Check the bottom of the tube for foreign objects
13	Tube side vision Inspection	Check for additives and foreign objects in the tube wall
14	Tube loading	After NG products are removed, OK products are put on the labeling line
15	Labeling machine	Choice of inkjet or laser printing, and OCR visual inspection
16	Label vision inspection	Products without labels are automatically rejected
17	Tube unloading	Flip the labeled the tube 90° by motion control
18	Foam pallet loading	Tube loading to foam pallet

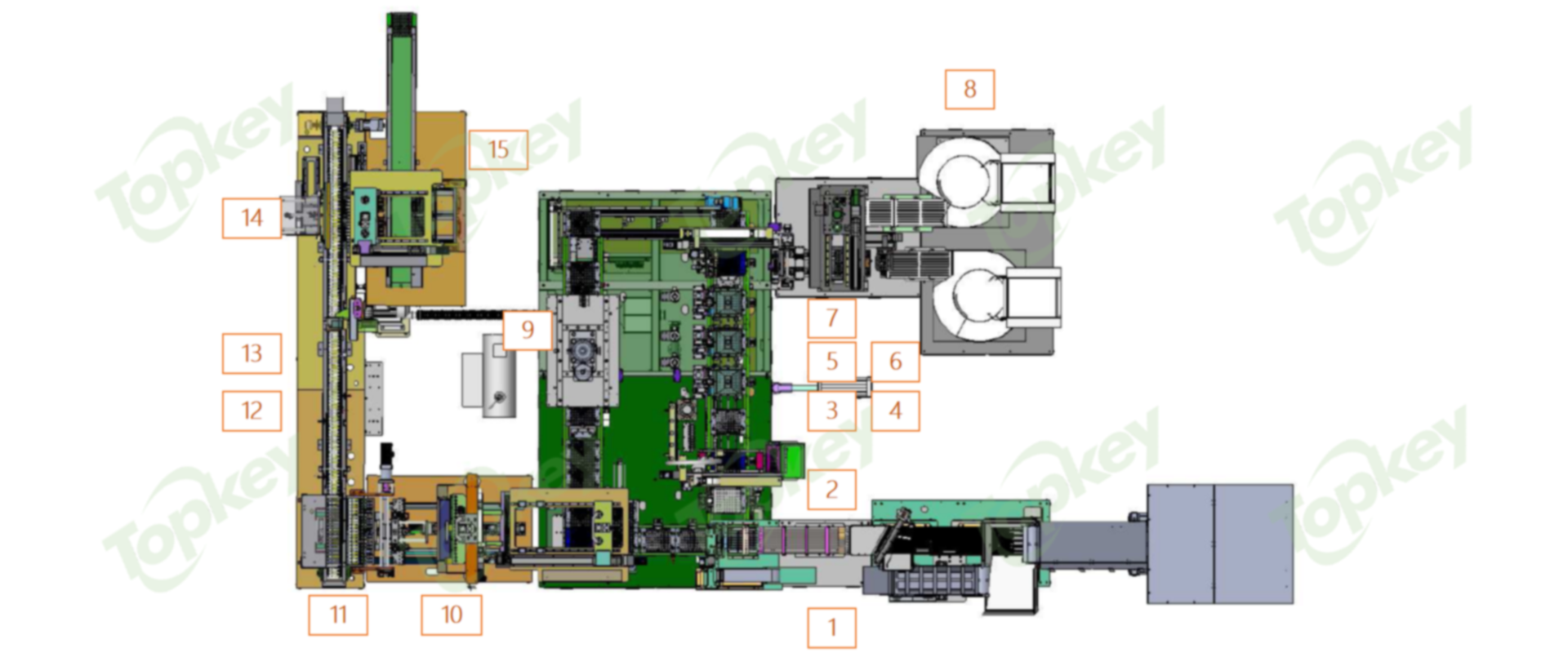

b.Capacity:12000 PCS/H ；Tube Specification：1375mm & 13100mm

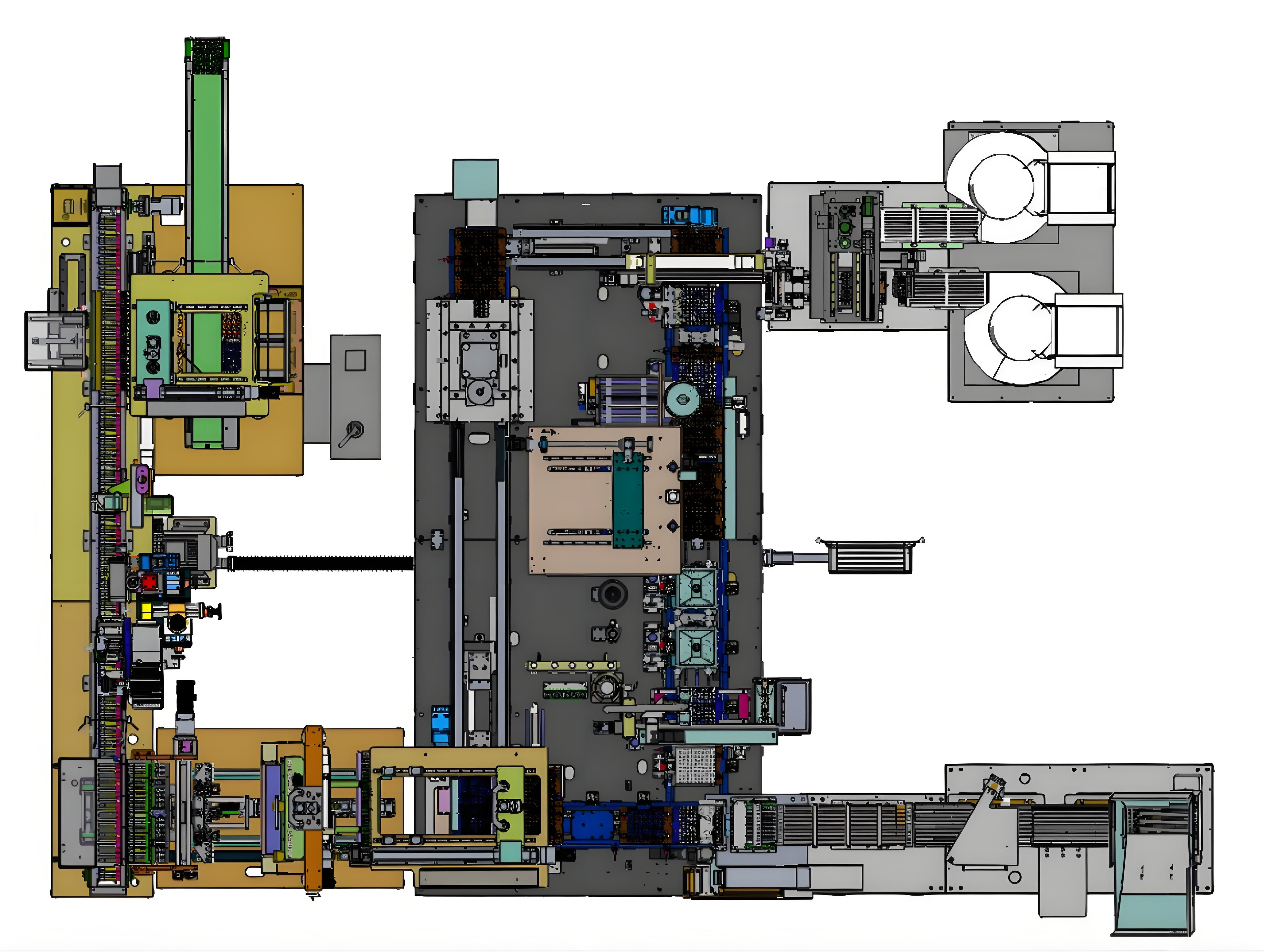

BCT1-12000

No	Workstation Name	Content
1	PET tube auto sorting	Disorganized tubes are automatically sorted and loaded into the jig
2	Tube direction checking	Check the loading direction of the tubes
3	EDTA & Heparin spraying	Spray additives（EDTA、HEPARIN）
4	Drying*1	Drying PET tube moisture
5	Air cooling*1	Cooling PET tube temperature
6	Sodium citrate filling	Filling of sodium citrate with pipette tips
7	Liquid vision inspection	Vision inspection of liquid filling level
8	Cap and rubber plug inline assembly	The cap and rubber stopper are automatically assembled inline and then loaded into the jig
9	Vacuuming	Inline record vacuum peak
10	Tube side vision Inspection	Check for additives and foreign objects in the tube wall
11	Tube loading	After NG products are removed, OK products are put on the labeling line
12	Labeling machine	Choice of inkjet or laser printing, and OCR visual inspection
13	Label vision inspection	Products without labels are automatically rejected
14	Tube unloading	Flip the labeled the tube 90° by motion control
15	Foam pallet loading	Tube loading to foam pallet

BCT Autoline（Clot Activator）

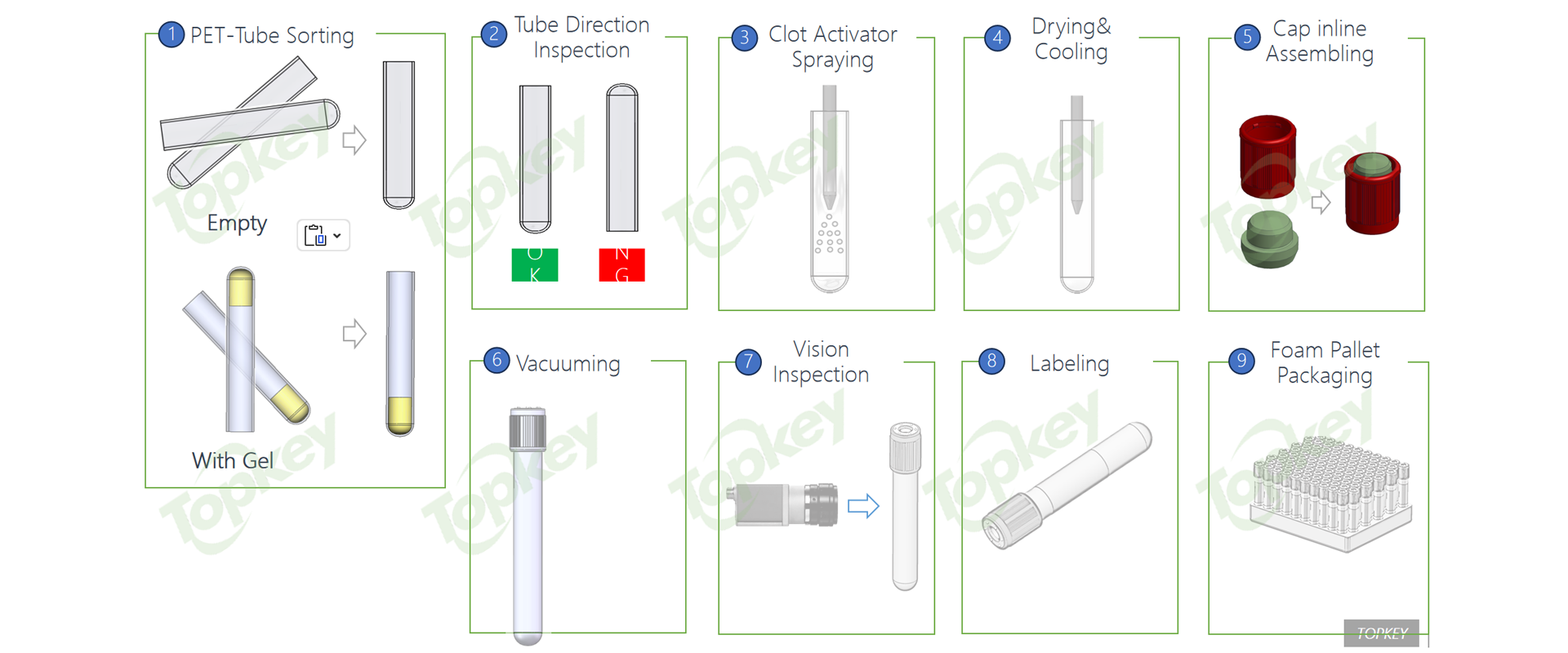

1. PROCESS

BCT process2

2. LAYOUT AND WORKSTATION

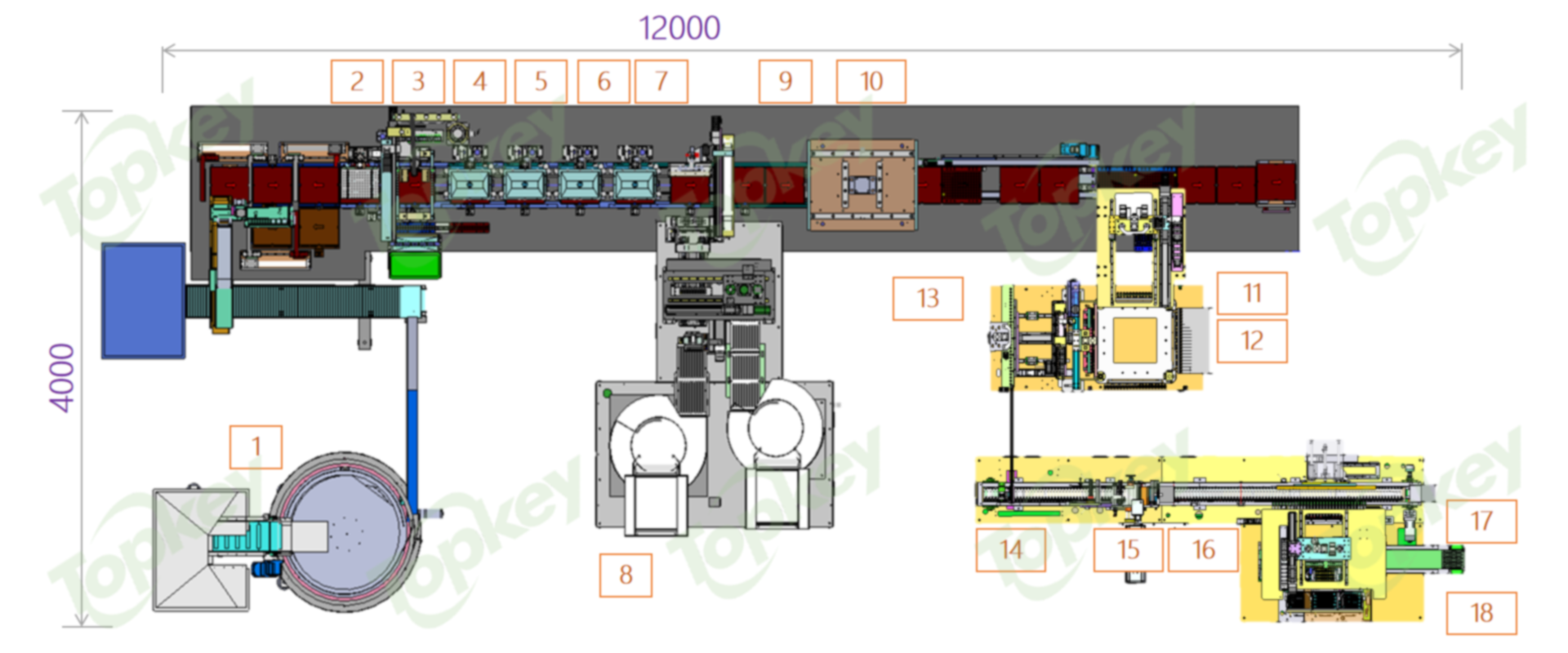

a. Capacity:15000 PCS/H ；Tube Specification：1375mm & 13100mm

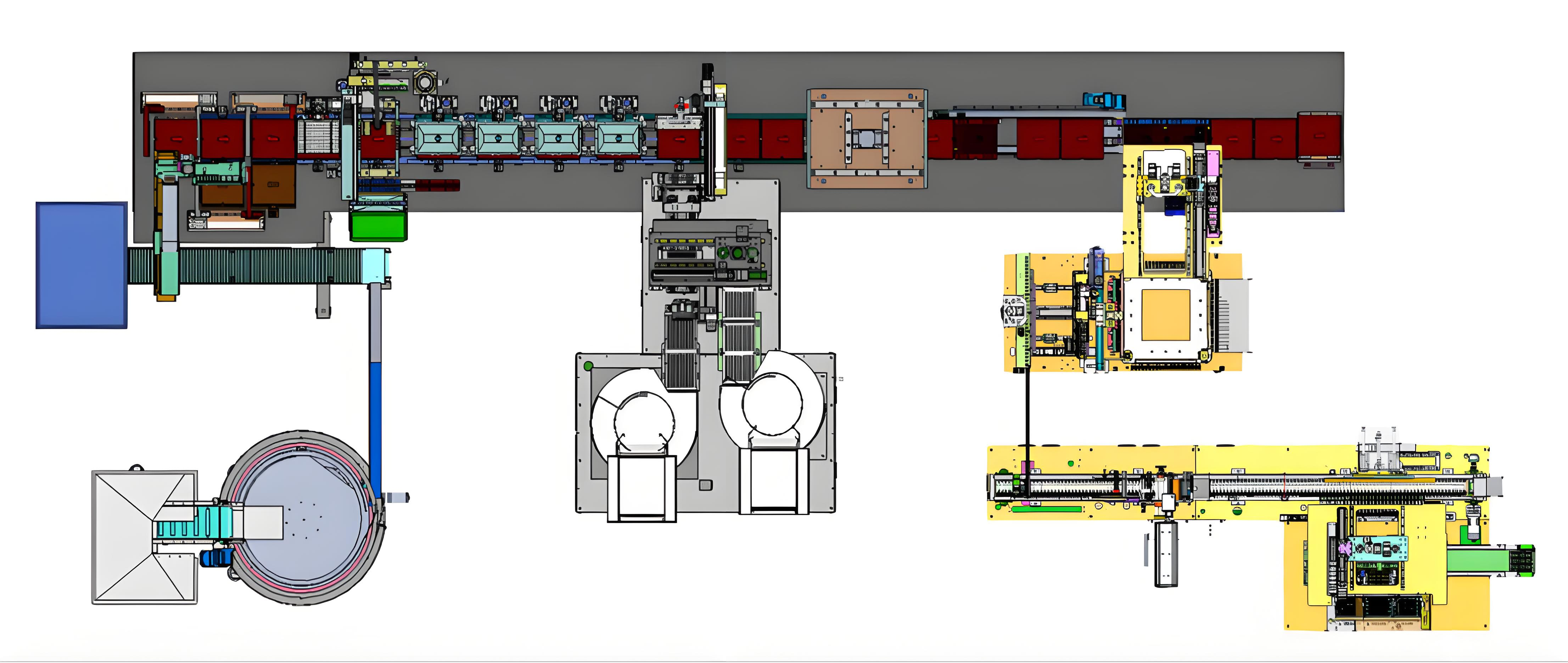

BCT2-15000

No	Workstation Name	Content
1	PET tube auto sorting	Disorganized test tubes are automatically sorted and loaded into the jig
2	Tube direction checking	Check the loading direction of the tubes
3	Clot activator spraying	Spraying with mixing liquids（Silicone + Clot activator）
4~6	Drying*3	Drying PET tube moisture
7	Air cooling*1	Cooling PET tube temperature
8	Cap and rubber plug inline assembly	The cap and rubber stopper are automatically assembled inline and then loaded into the jig
9	Cap vision inspection A	Check the assembly height and defects of the caps
10	Vacuuming	Inline record vacuum peak
11	Cap vision Inspection B	Check the assembly height and defects of the caps.
12	Tube bottom vision Inspection	Check the bottom of the tube for foreign objects and the height of the gel
13	Tube side vision Inspection	Check for additives and foreign objects in the tube wall
14	tube loading	After NG products are removed, OK products are put on the labeling line
15	Labeling machine	Choice of inkjet or laser printing, and OCR visual inspection
16	Label vision inspection	Products without labels are automatically rejected
17	Tube unloading	Flip the labeled the tube 90° by motion control
18	Foam pallet loading	Tube loading to foam pallet

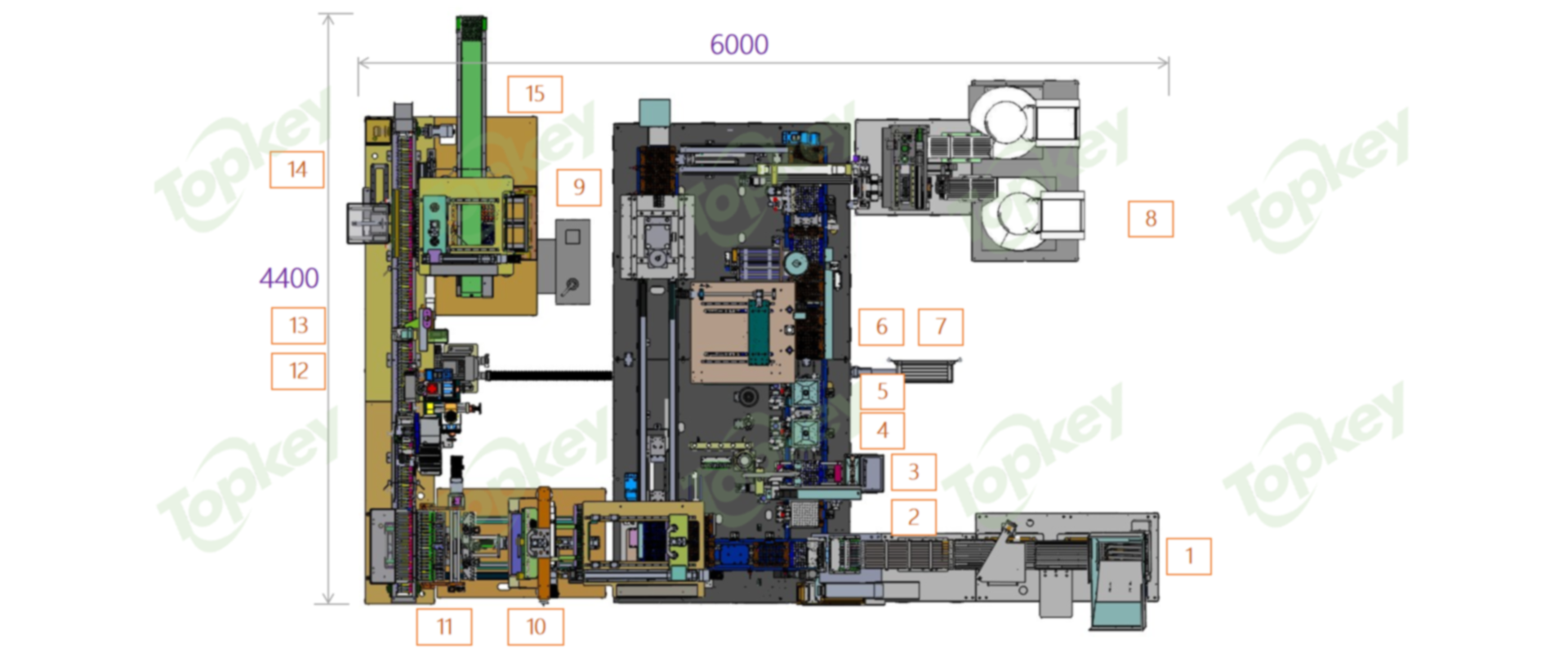

b. Capacity:12000 PCS/H ；Tube Specification：1375mm & 13100mm

BCT2-12000

No	Workstation Name	Content
1	PET tube auto sorting	Disorganized test tubes are automatically sorted and loaded into the jig
2	Tube direction checking	Check the loading direction of the tubes
3	Clot activator spraying	Spraying with mixing liquids（Silicone + Clot activator）
4~6	Drying*3	Drying PET tube moisture
7	Air cooling*1	Cooling PET tube temperature
8	Cap and rubber plug inline assembly	The cap and rubber stopper are automatically assembled inline and then loaded into the jig
9	Vacuuming	Inline record vacuum peak
10	Tube side vision Inspection	Check for additives and foreign objects in the tube wall
11	tube loading	After NG products are removed, OK products are put on the labeling line
12	Labeling machine	Choice of inkjet or laser printing, and OCR visual inspection
13	Label vision inspection	Products without labels are automatically rejected
14	Tube unloading	Flip the labeled the tube 90° by motion control
15	Foam pallet loading	Tube loading to foam pallet

Automatic Blood Collection Tube Assembly Machine
