Blood Collection Tube Gel Filling Machine

In the production process of blood collection tubes in the medical field, the Blood Collection Tube Gel Filling Machine is one of the key devices ensuring the quality and performance of blood collection tubes. It is specially designed for the precise filling of gel stratifying agents in blood collection tubes. Through automated and high-precision operations, it ensures uniform and quantitative filling of gel in blood collection tubes, providing a reliable stratification basis for subsequent testing of blood samples.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Blood Collection Tube Gel Filling Machine

Technical Information

1.Gel filling Speed Option

6500~28000 pcs/H,depending on machine configuration

2.Tube Specification

13*75mm&13*100mm

3.Machine options

1）20-Nozzles

Capacity:6500~8000PCS/H

2）40-Nozzles

Capacity:12000~16000PCS/H

3）80-Nozzles

Capacity:24000~30000PCS/H

Note:a.It can achieve gel filling for 16 test tubes, and further negotiation is needed.

b.The production capacity varies according to the viscosity of the gel.

4.Our Technology

Additive name: Gel
Filling range:0.3g~2g±0.02g
CPK≥1.33

5.Advantage
1) Gel filling accuracy ± 0.02g, high stability
2) High precision filling saves expensive gels
3)No need to centrifuge gels, air bubbles are automatically removed by standing after filling

6.Process

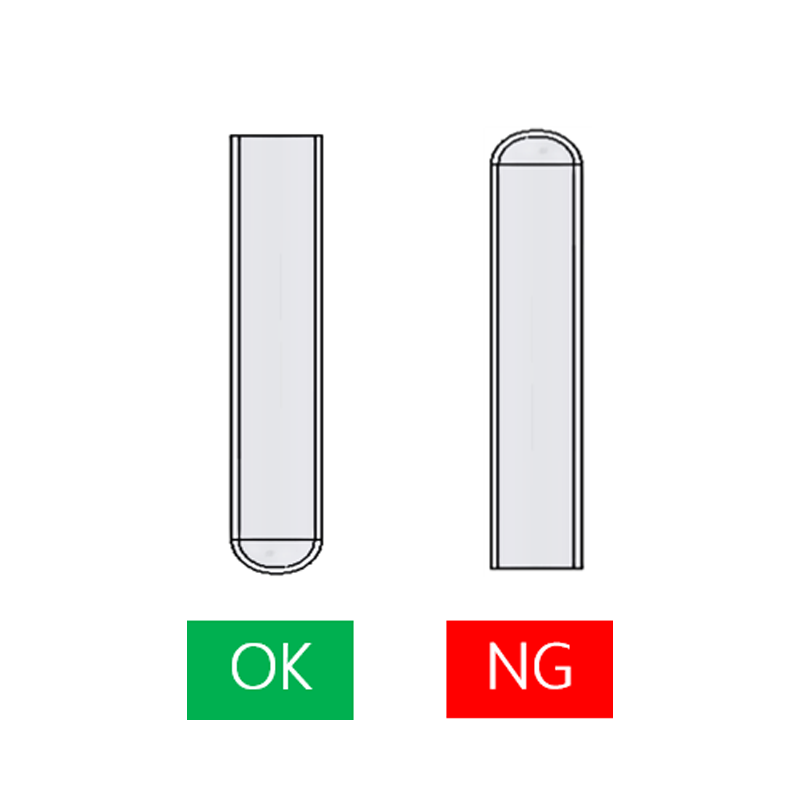

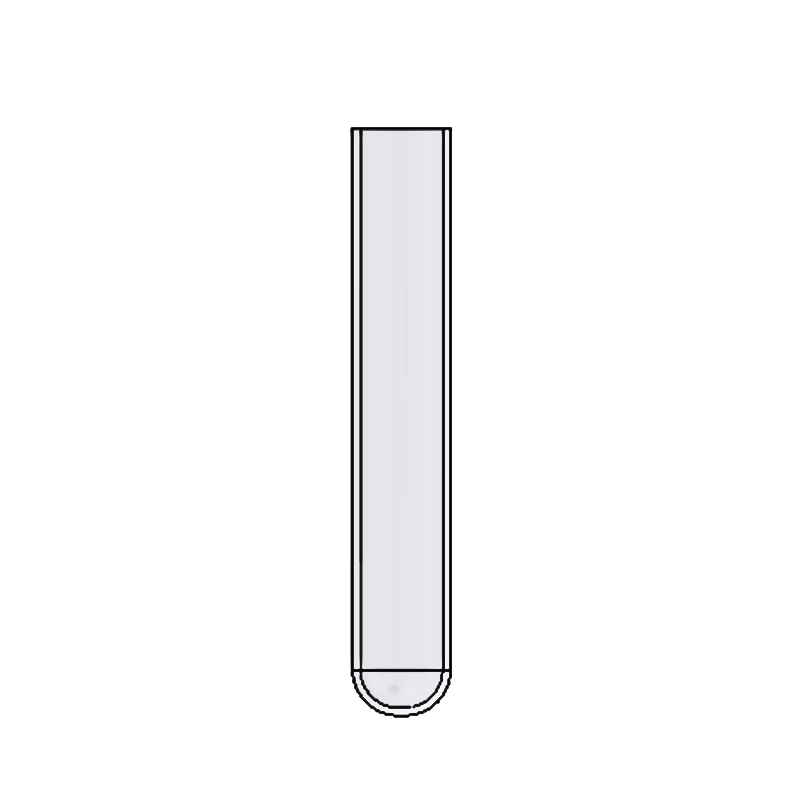

STEP1	Test tubes in the hopper are loaded into the tooling and pass the test tube orientation detection
STEP2	Static electricity on the inner walls of the test tubes is eliminated by a static elimination device
STEP3	Separation gel is transferred by two sets of pressure plate pumps, namely A and B

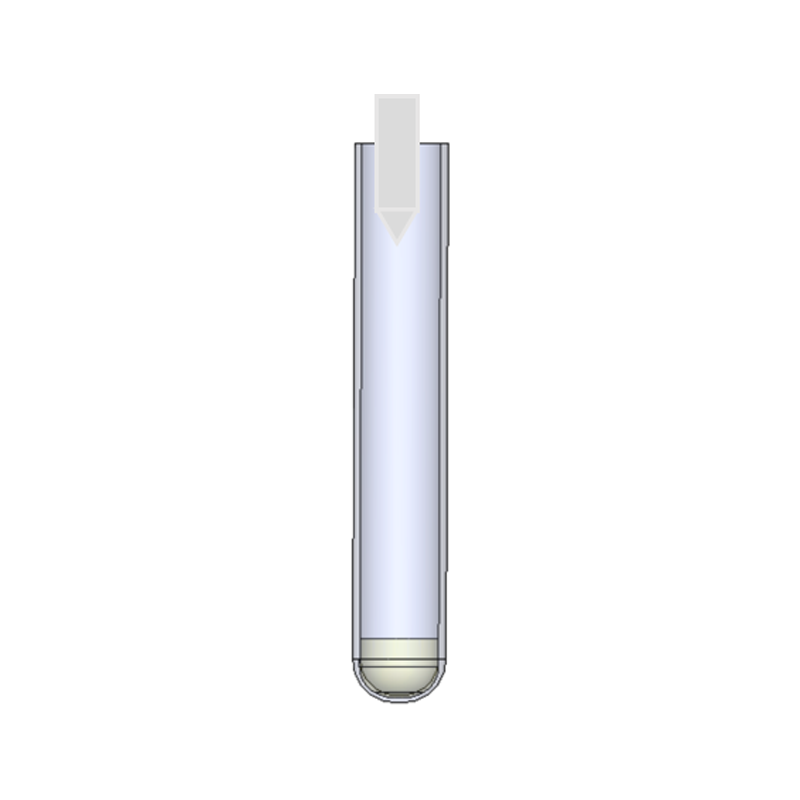

STEP4	Separation gel is first transferred to the gel preparation tank

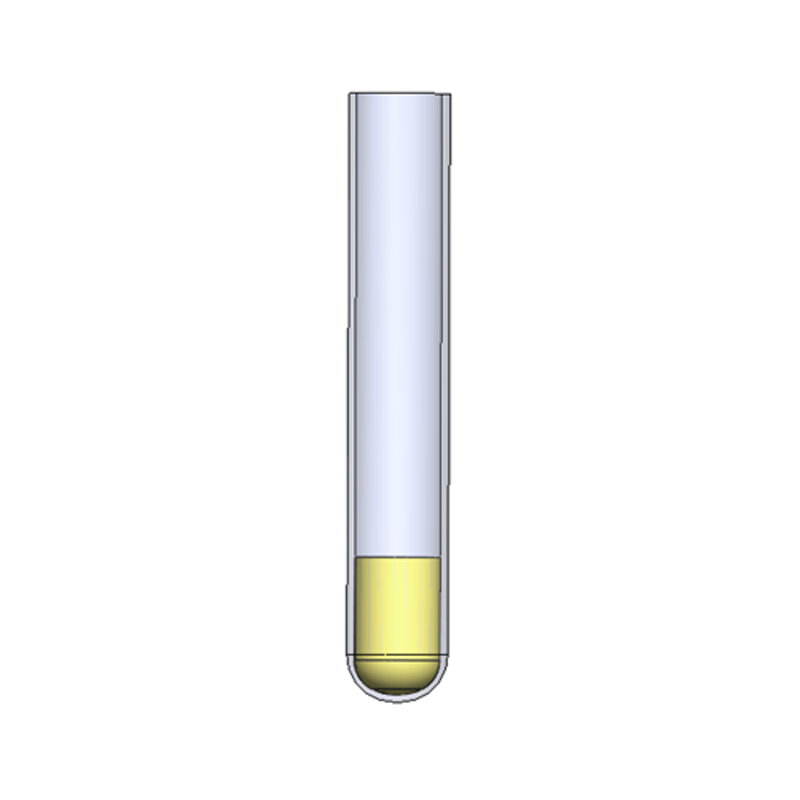

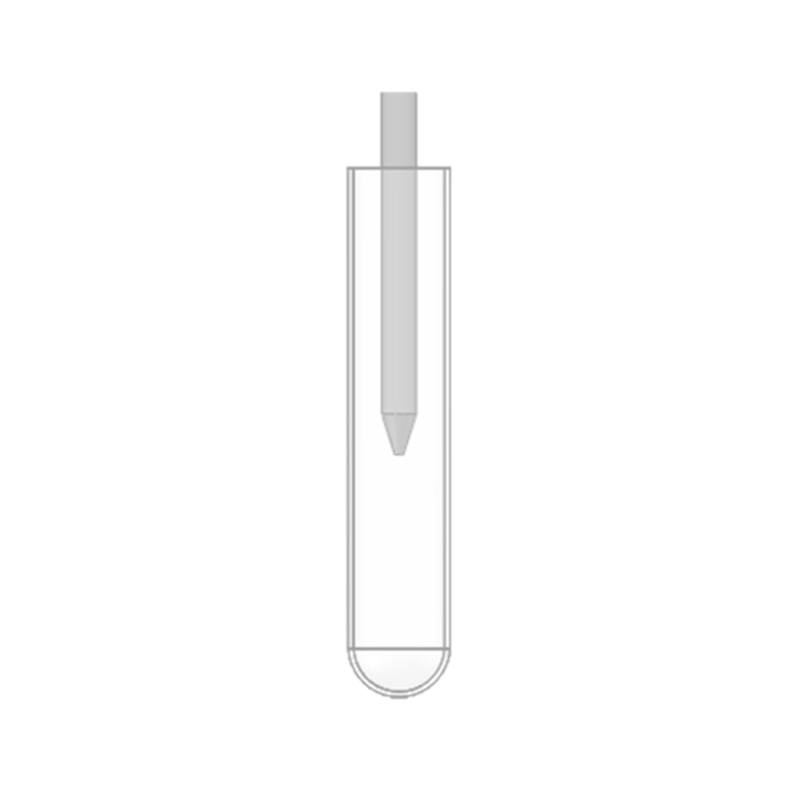

STEP5	High-precision gel filling

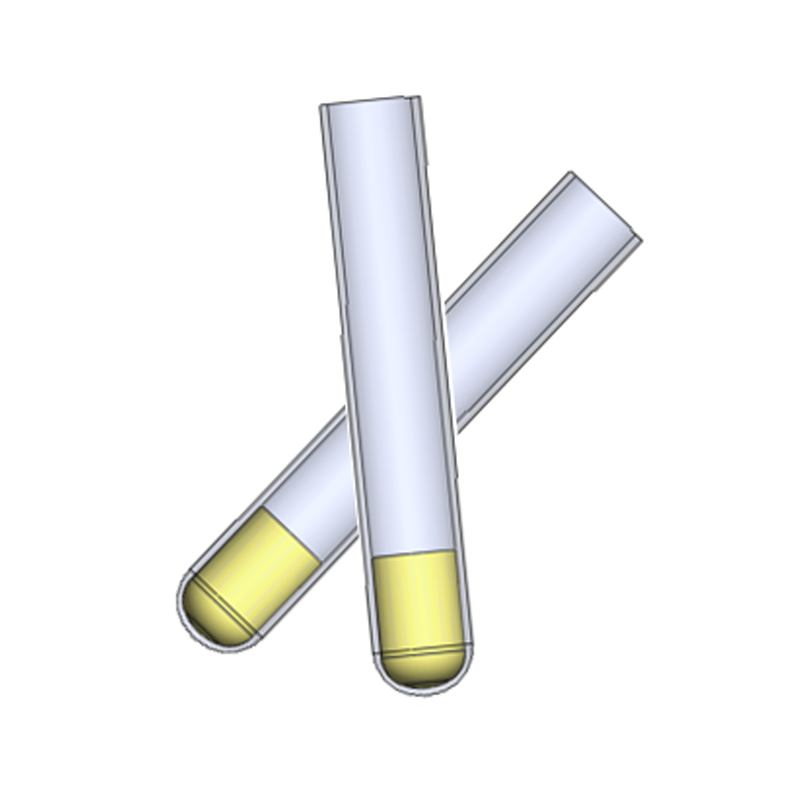

STEP6	The gel is cooled and solidified, maintaining the glue surface in a horizontal state
STEP7	Test tubes unloading

Flow Chat

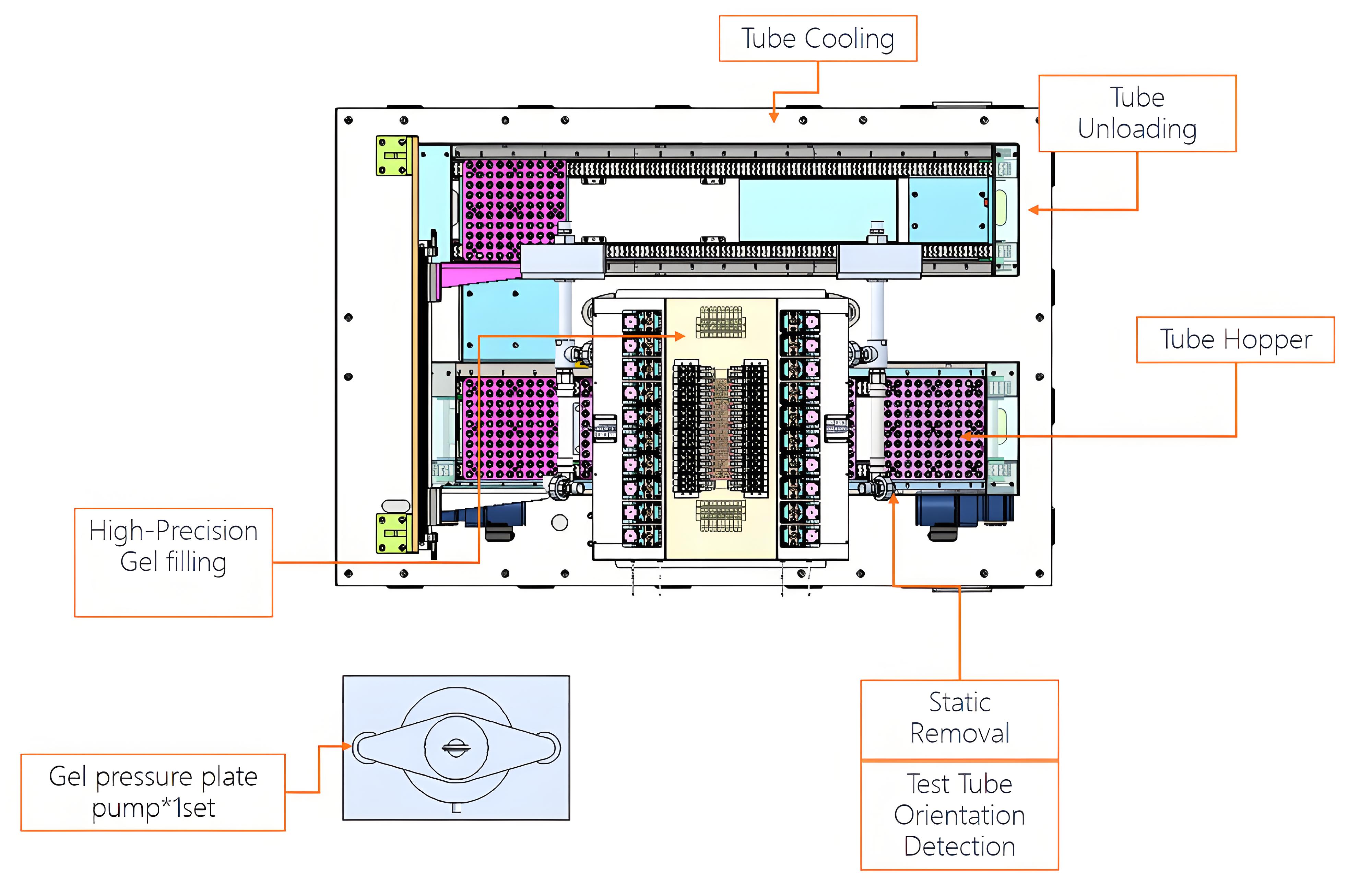

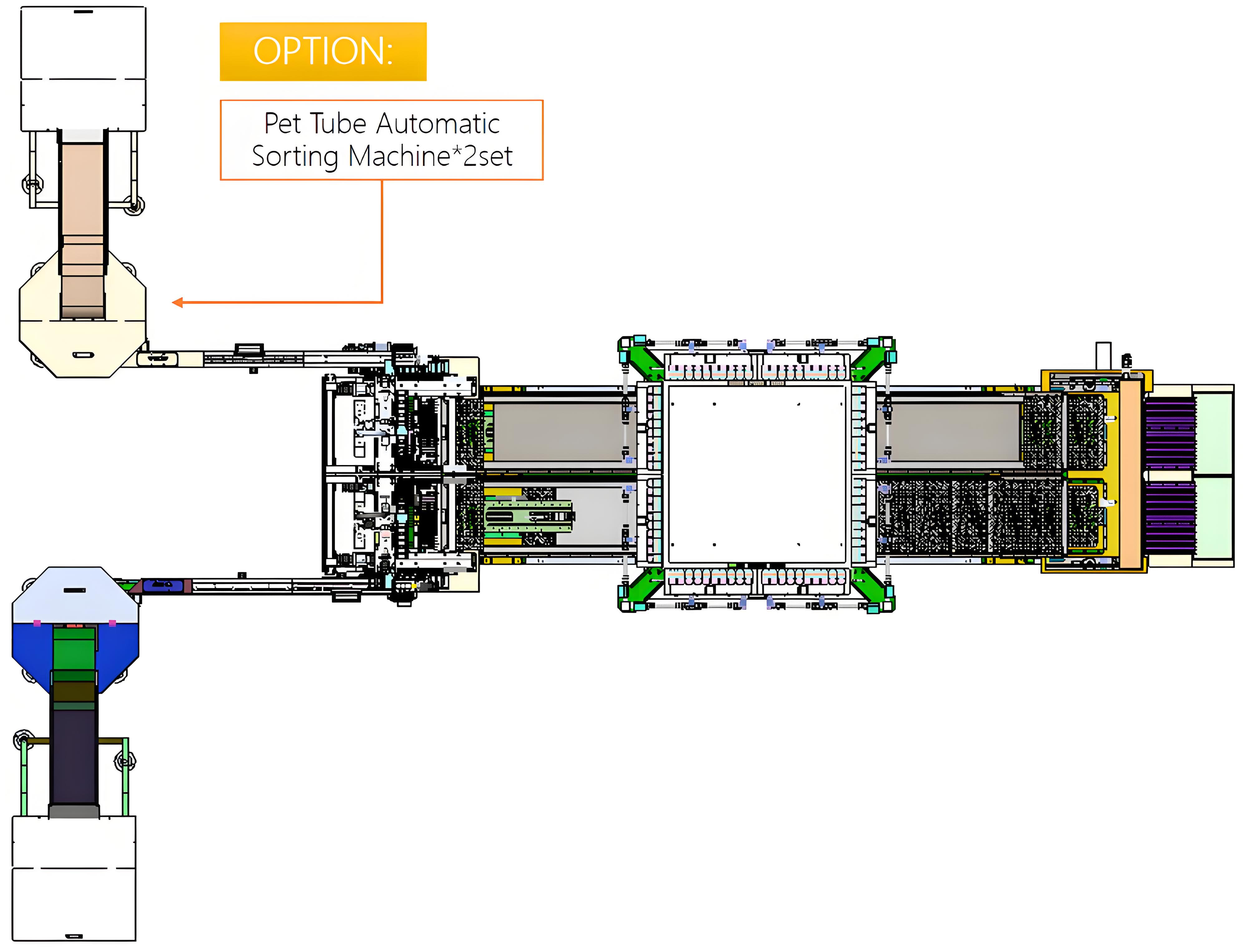

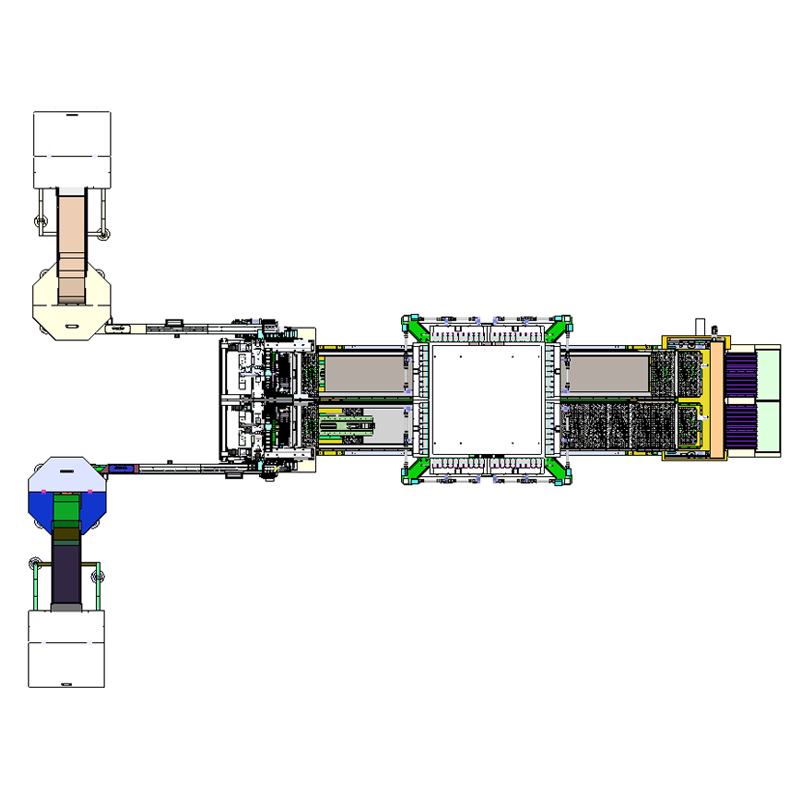

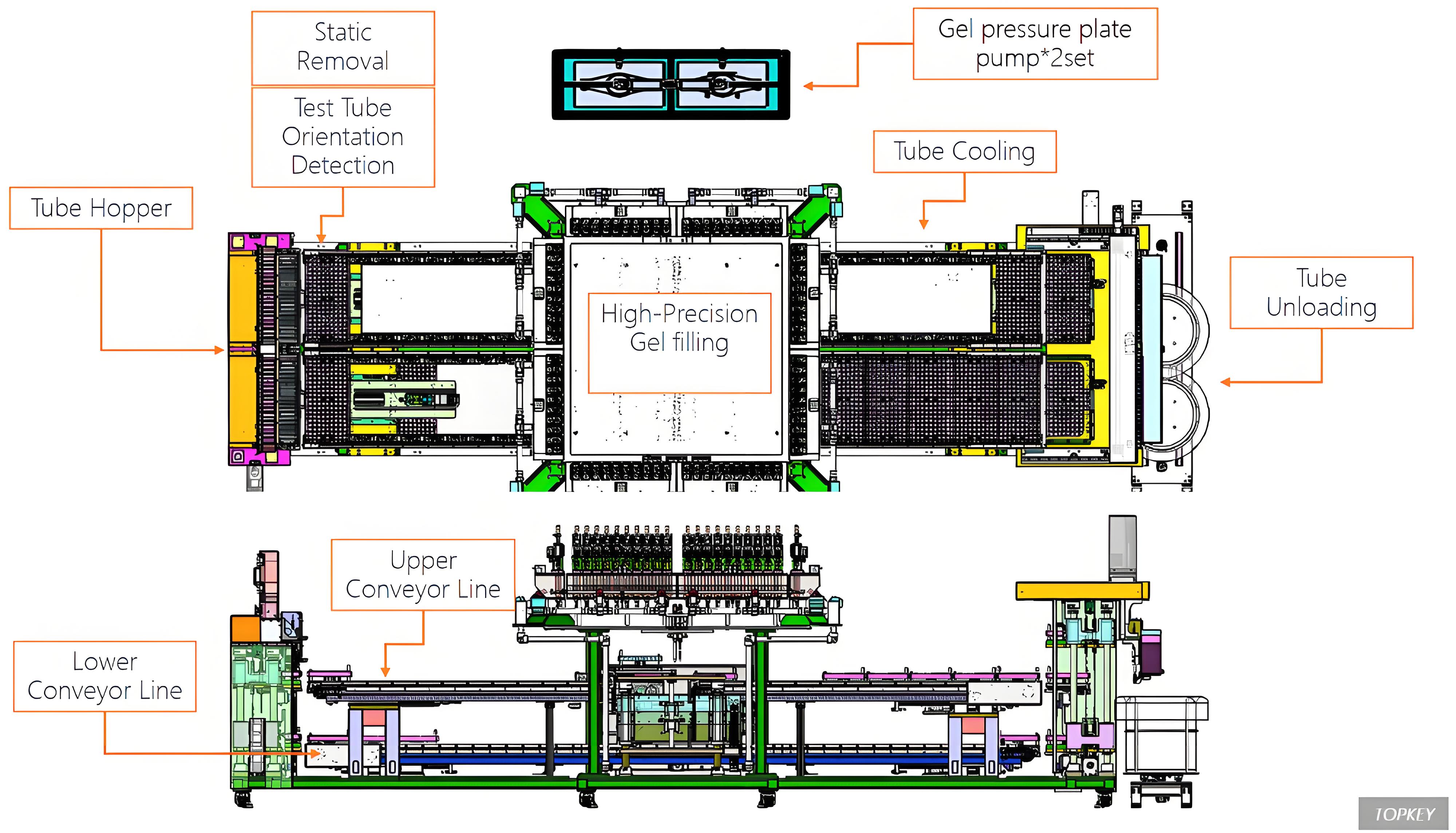

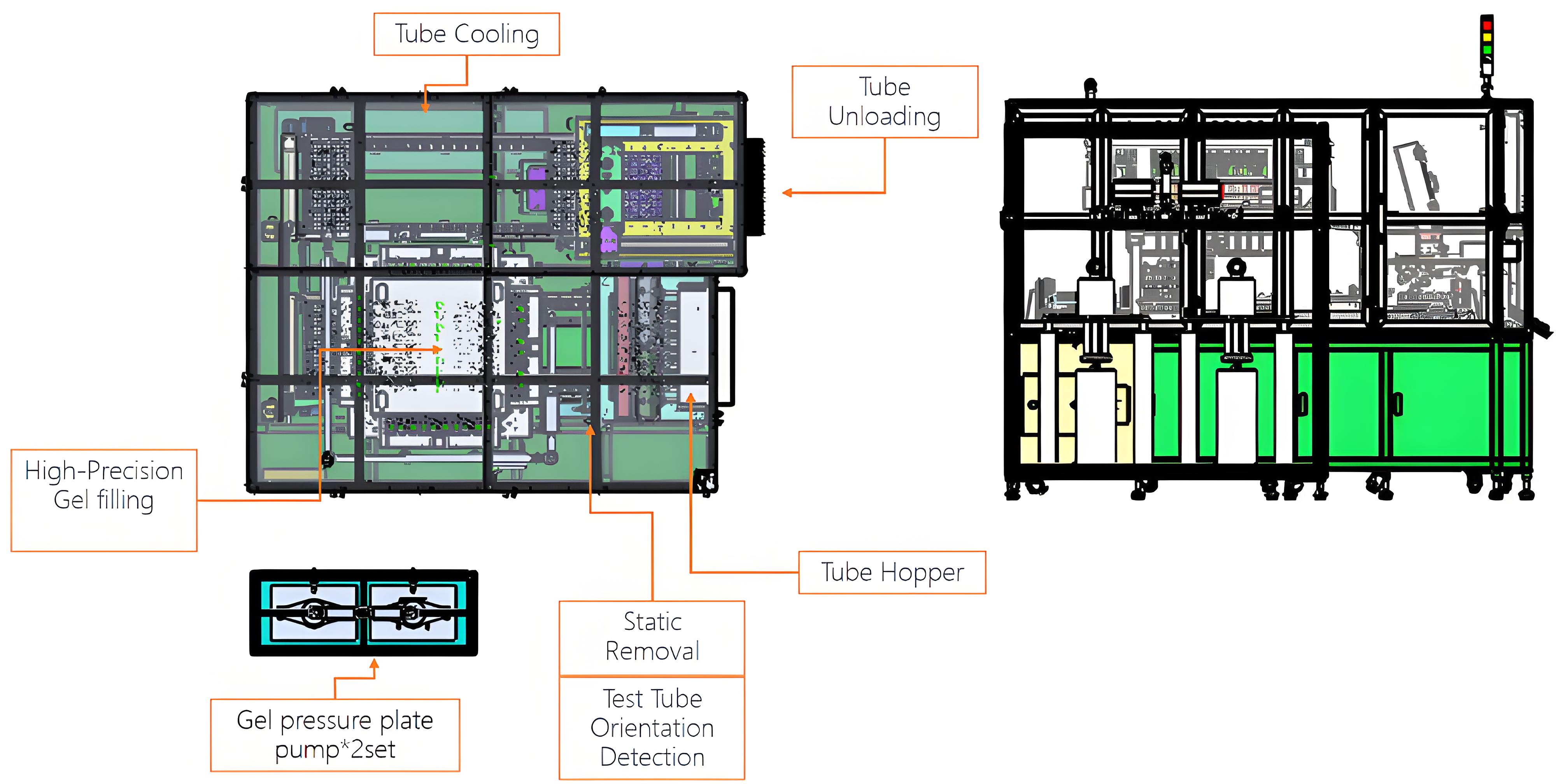

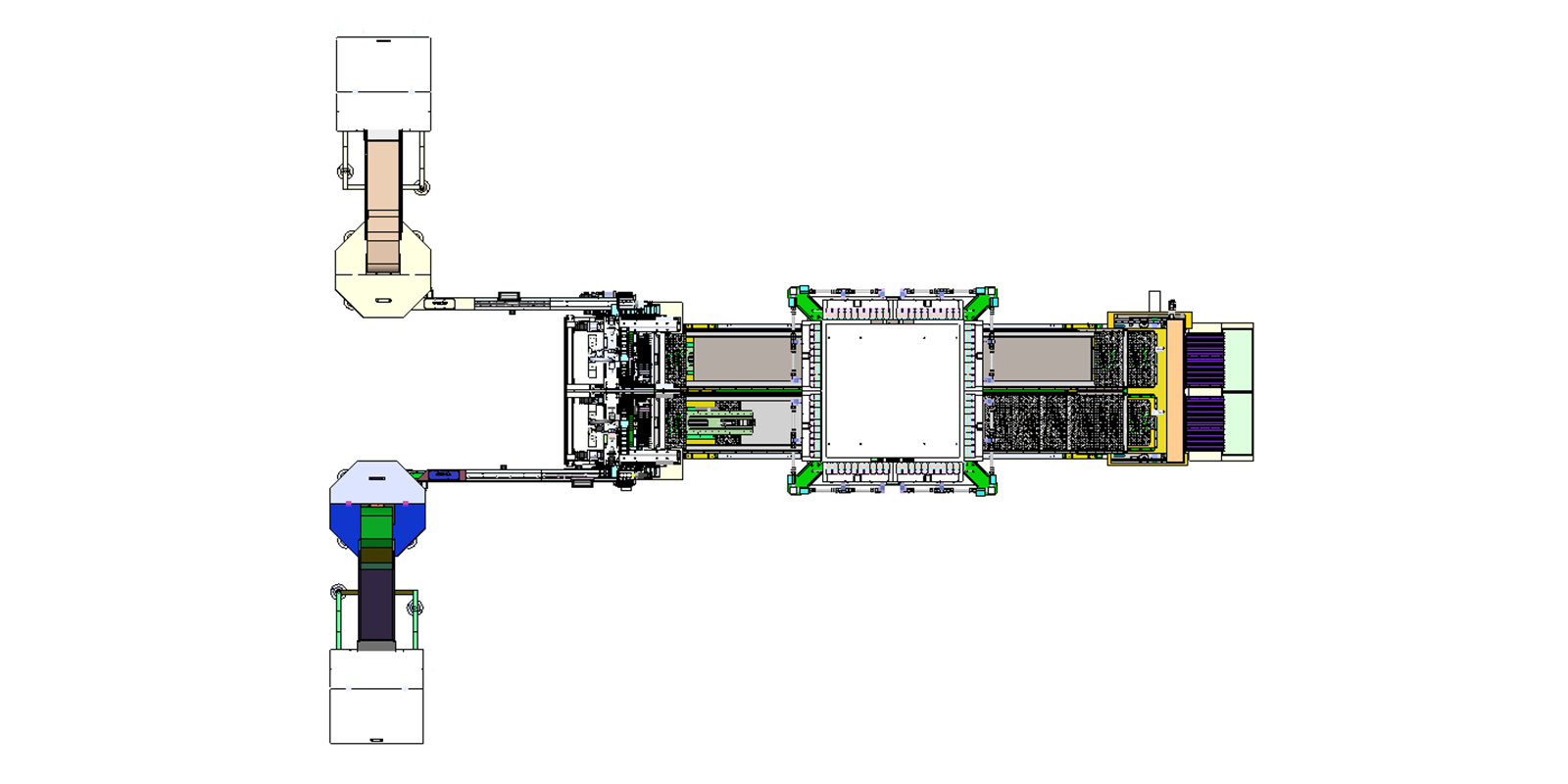

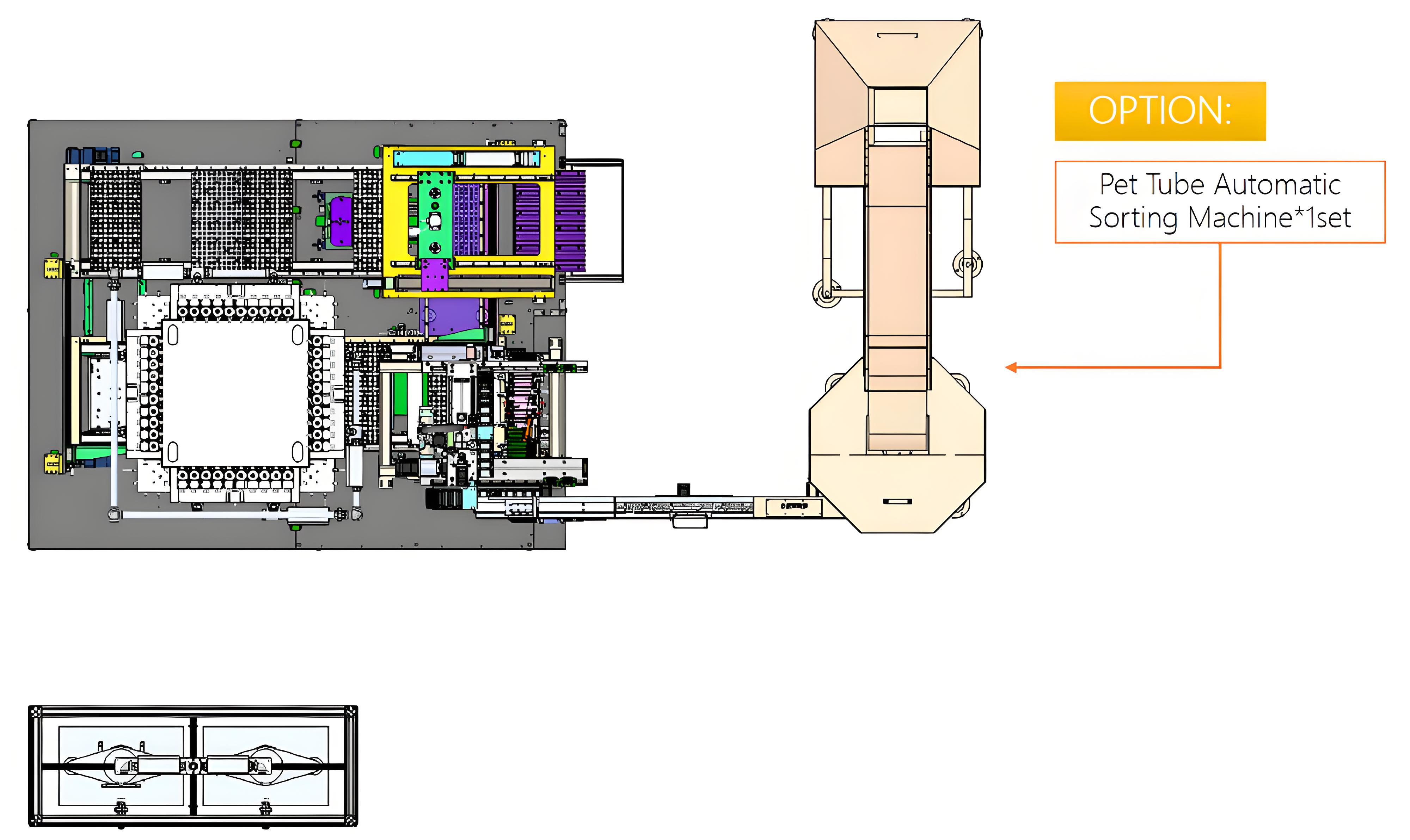

Layout Display

Effect Display

Company introduction

Our Technologies

TOPKEY specializes in medical automation technologies, with a focus on precision inspection and manufacturing solutions for medical devices. Our R&D team continuously innovates, combining medical device regulations with proprietary software to deliver solutions that adapt to evolving manufacturing standards.
Core Strengths

With numerous qualifications and more than 20 years of continuous development, As a market leader in the automated medical consumables production equipment industry, Topkey-tech is committed to providing advanced smart manufacturing solutions for medical consumables factories.
Blood Collection Tube Gel Filling Machine

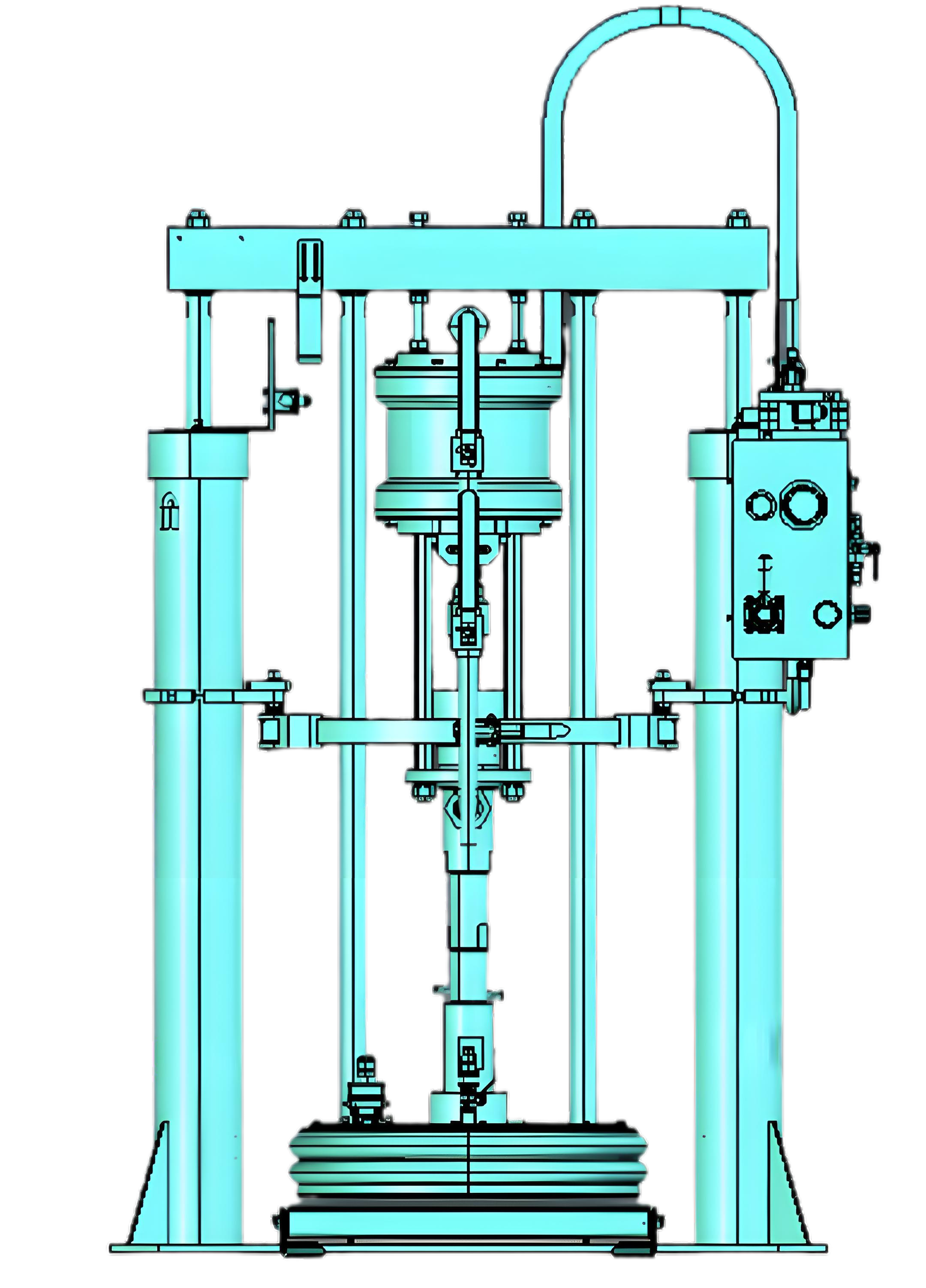

Pressure Plate Pump Glue Supply System:
1.The pressure plate pump body is heated to maintain the fluidity of the separation gel.
2.The pressure plate pump glue supply system is completely sealed without leakage.
3.Two sets of pressure plate pumps, A and B, work alternately.
4.There is a device for exhausting the air in the tank when replacing the two sets of pressure plate pumps, A and B.

Gel Filling System:
1. The gel preparation tank and filling pipeline are heated to maintain the fluidity of the separation gel.
2. The gel filling system and nozzles are heated to maintain the fluidity of the separation gel.
3. The filling volume can be finely adjusted by a separate mechanism in small amounts.
4. Specially - made nozzles and the control system prevent gel from stringing on the tube walls.
5. The upper and lower servos of the test tube tooling can adjust parameters according to the characteristics of the separation gel.
