Blood Collection Needle Assembly Machine

TOPKEY’s needle assembly machines are available in a variety of configurations depending on product design and assembly requirements. These machines are fully automated, with process and vision inspection during the assembly process, enabling customers to produce high quality products in a fully digitalized manner.

Quantity:
Availability:





Inquire Add to Basket

Product Description

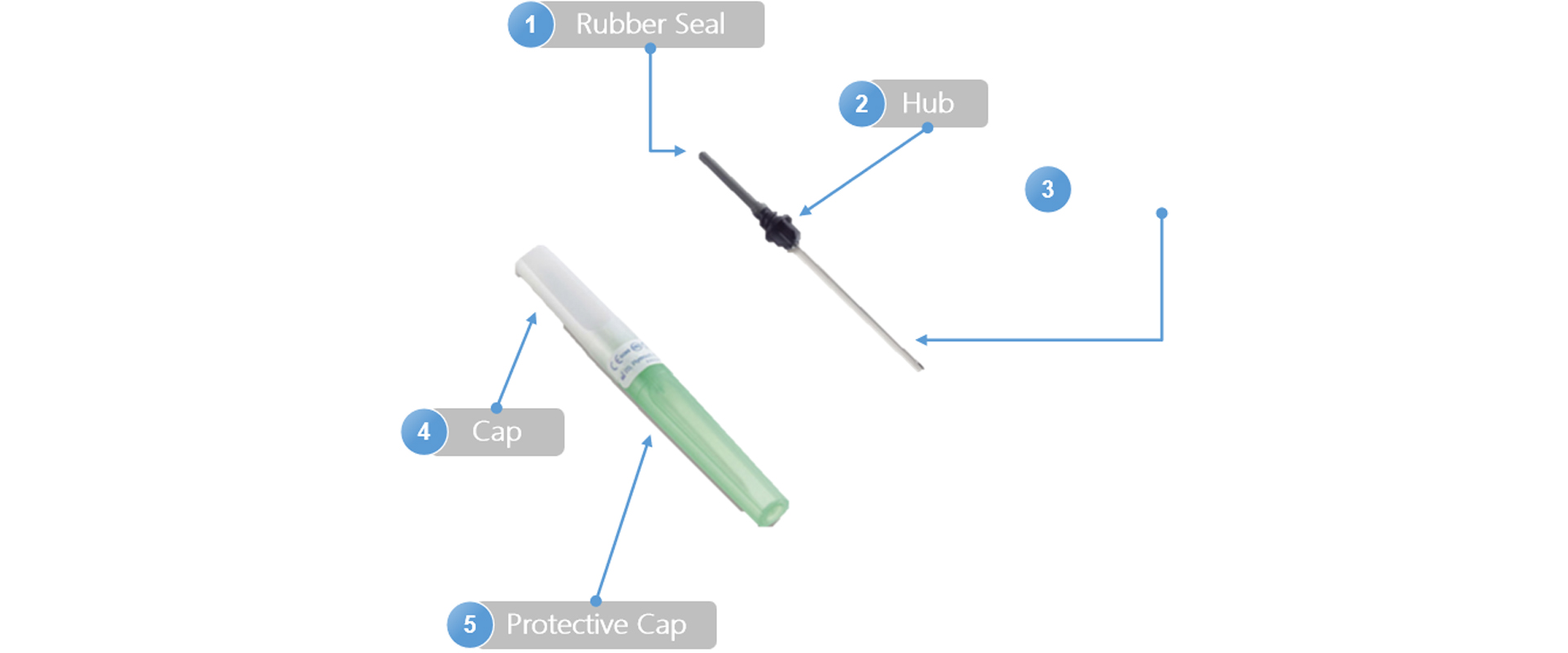

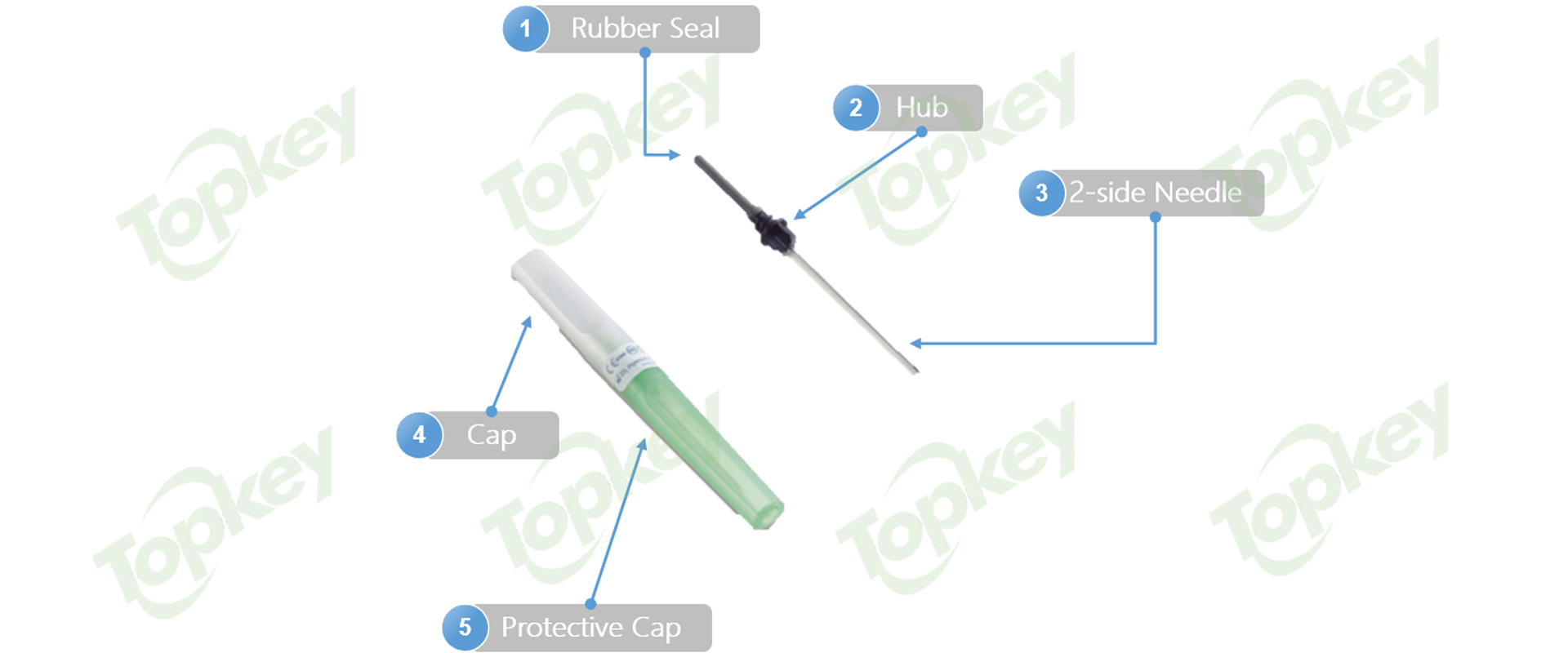

Blood Collection Needle Assembly Machine

Technical Information

1.Introduce

1)TOPKEY’s needle assembly machines are available in a variety of configurations depending on product design and assembly requirements. These machines are fully automated, with process and vision inspection during the assembly process, enabling customers to produce high quality products in a fully digitalized manner.

2)The product range is from 18G to 34G. In order to improve the assembly quality of the needles, TOPKEY has an original mechanical structure and high-quality machined parts. The original visual inspection technology detects 100% of the smallest defects in the tip of the needle and also detects blockages in the 34G holes. The entire assembly process is monitored by sensors and vision inspection systems, and various production data can be statistically analyzed on the HMI.
3)TOPKEY Automation can also produce "assembly machines for all kinds of needles".

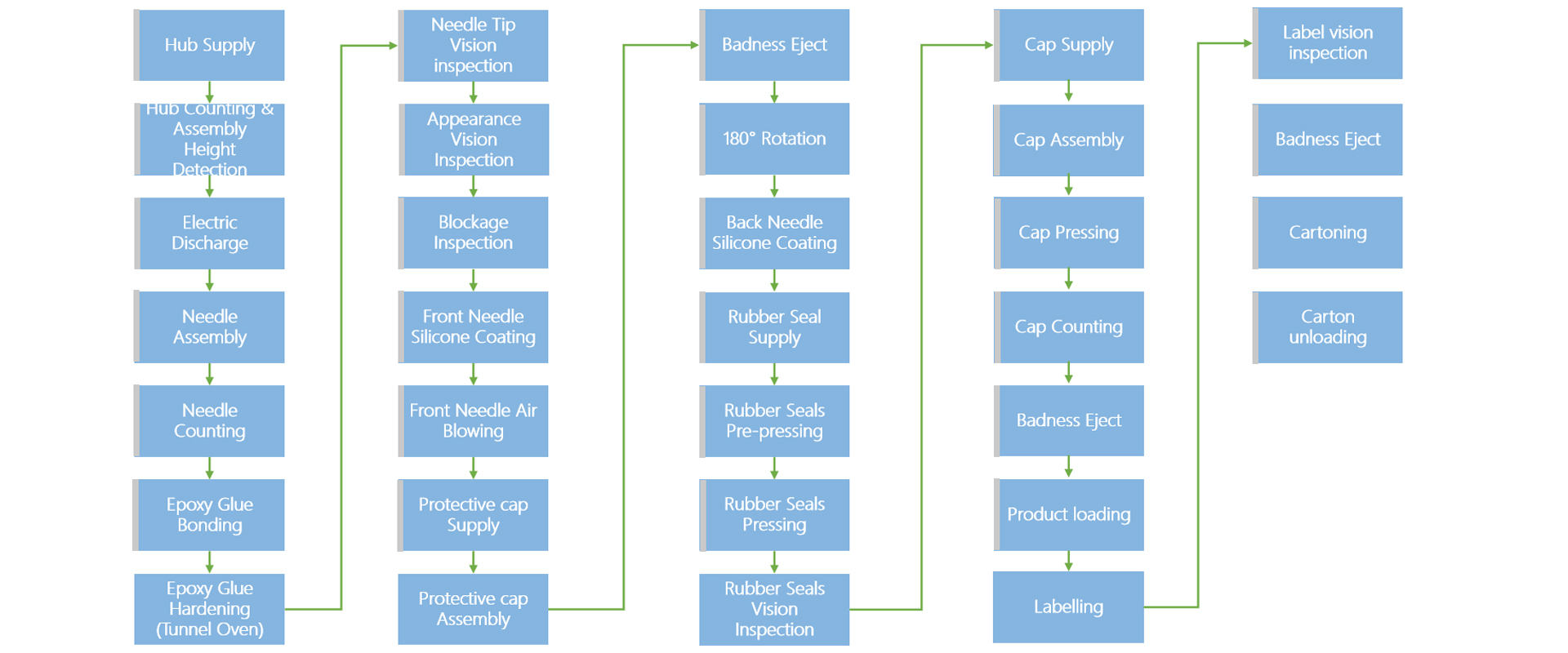

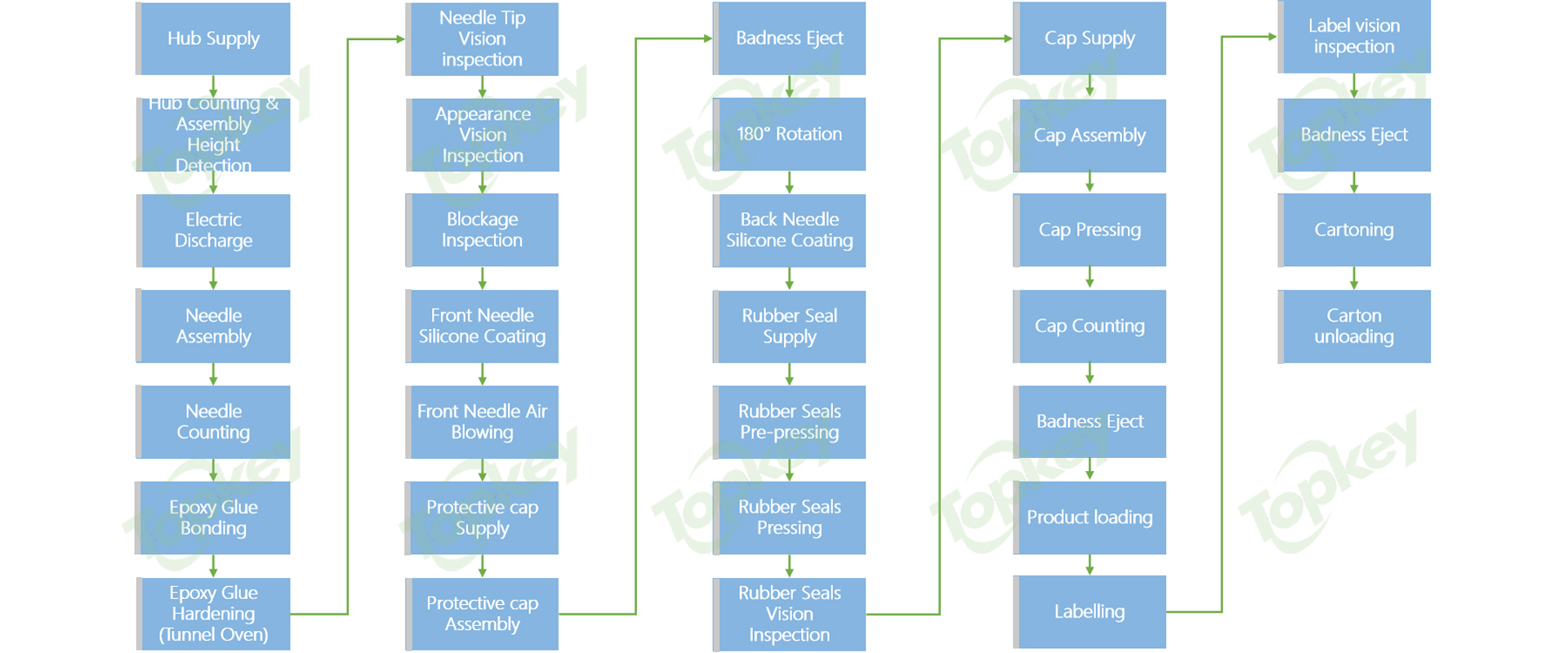

2.Flow Chart

3.Needle Vision Inspection System

Needle vision inspection capability

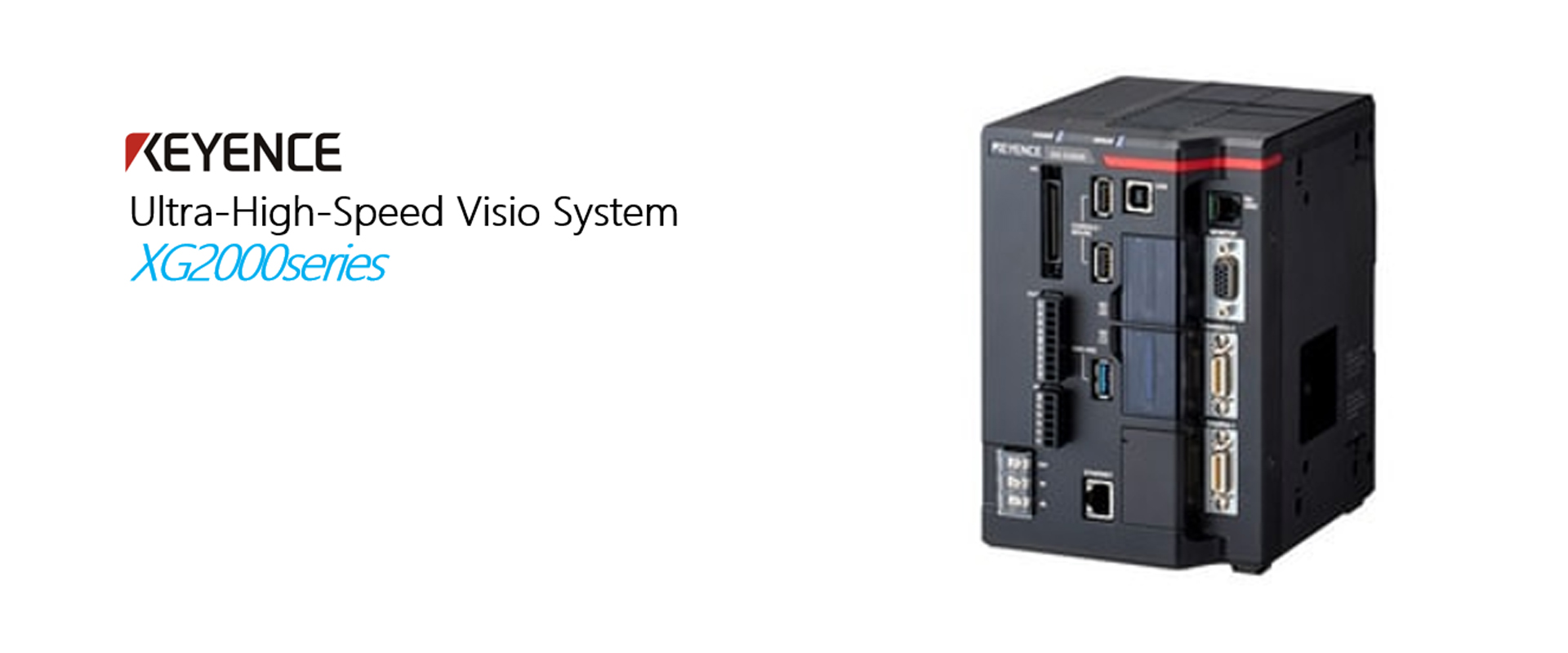

We have done secondary development on the KEYENCE XG vision system platform for defect detection of needles with a completely original vision algorithm, and it has passed the test of long-term operation and various challenging experiments.

KEYENCE

KEYENCE has the industry's fastest vision inspection system, powerful inspection capabilities and secondary development platform.

4.Needle Tip Vision Inspection System

The Needle Tip Vision Inspection System, which has been in operation at N Company's factory for more than a decade, is stable and reliable and is capable of identifying 100% of needle tip defects. Defects are recognised by detecting the shape of the needle tip and even small defects can be detected.

1)Inventor of Needle Vision Inspection System, NIPRO, Japan

2)Capable of detecting burr defects of various shapes

3)360°Visio inspection

4)Japan KEYENCE Ultra High Speed Vision System

5)Compatible Needle Size: 34G~18G

360° Vision Inspection System

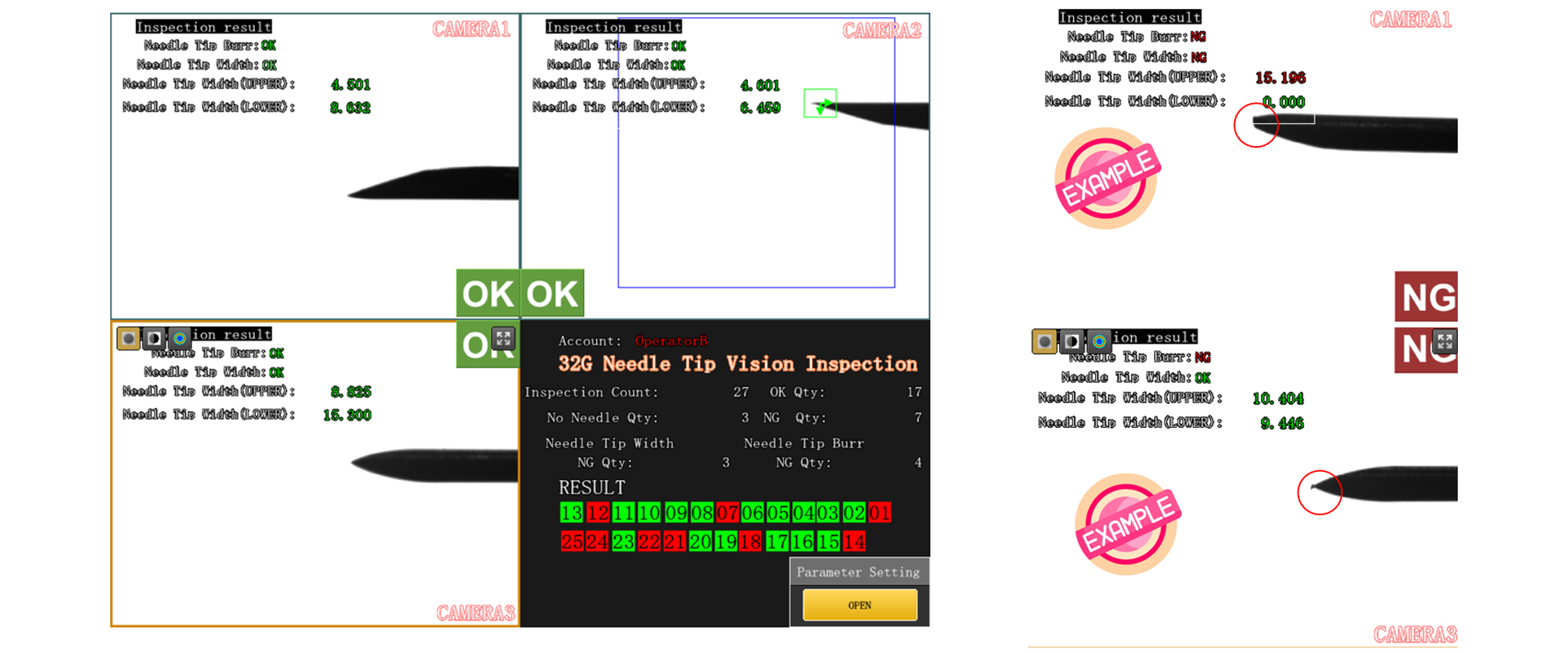

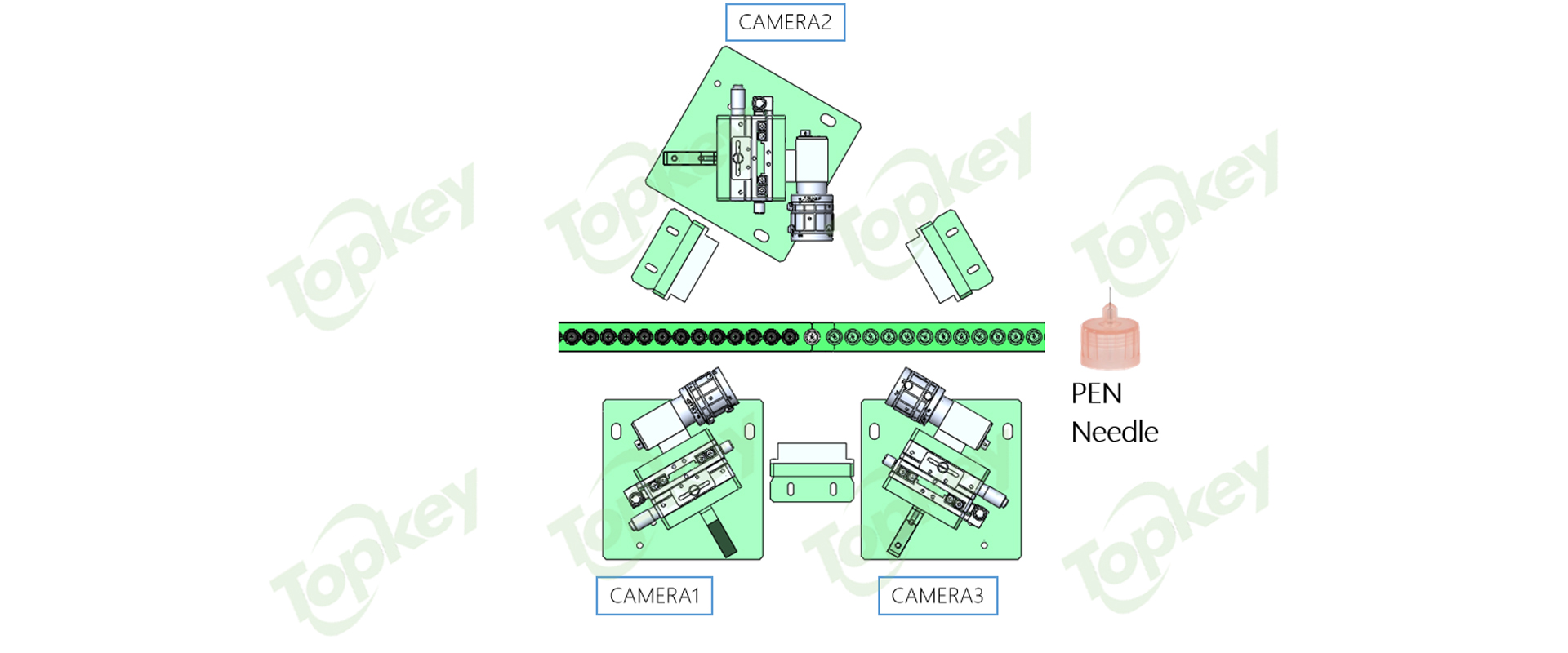

1)3-direction camera detects the shape of the needle tip in 360°
2)Ultra-high-speed processing capability,capable of completing a vision inspection in 35ms
3)Pictures of NG products can be saved
4)Built-in statistical analysis function

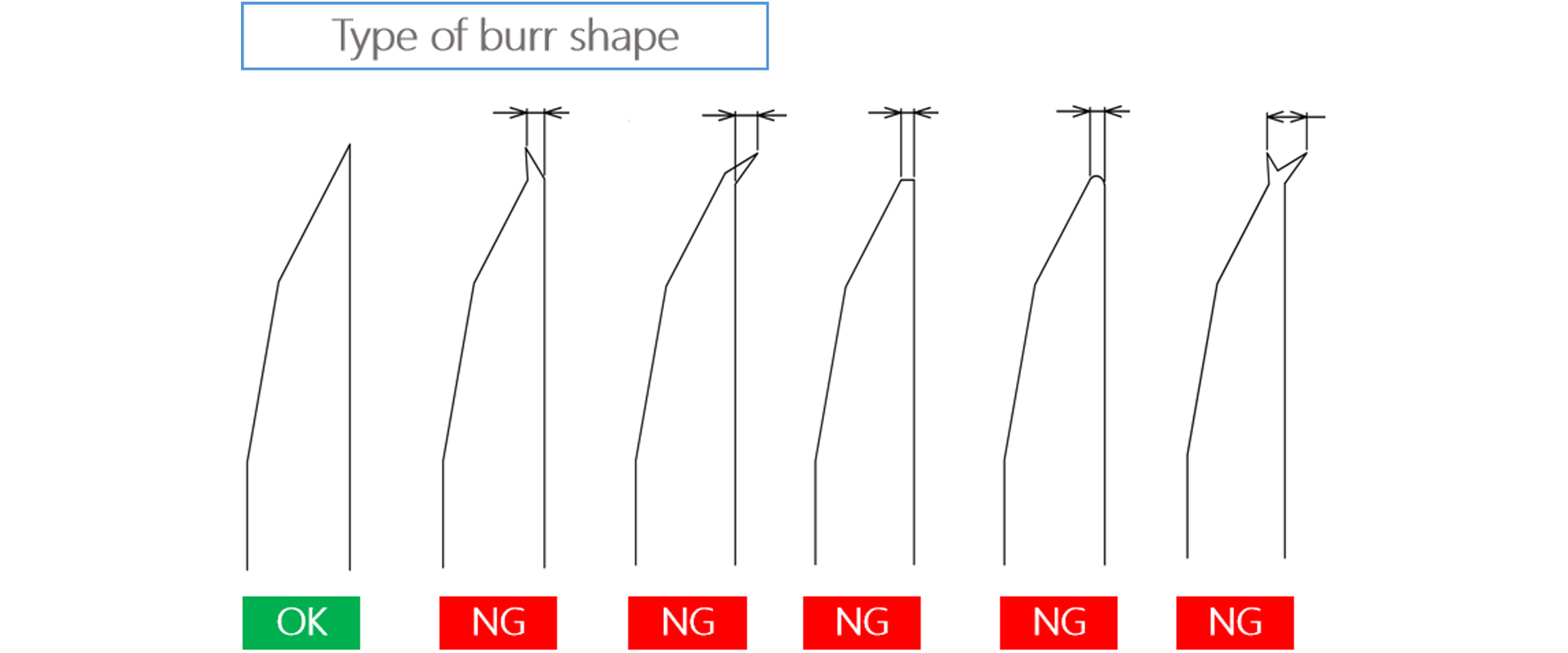

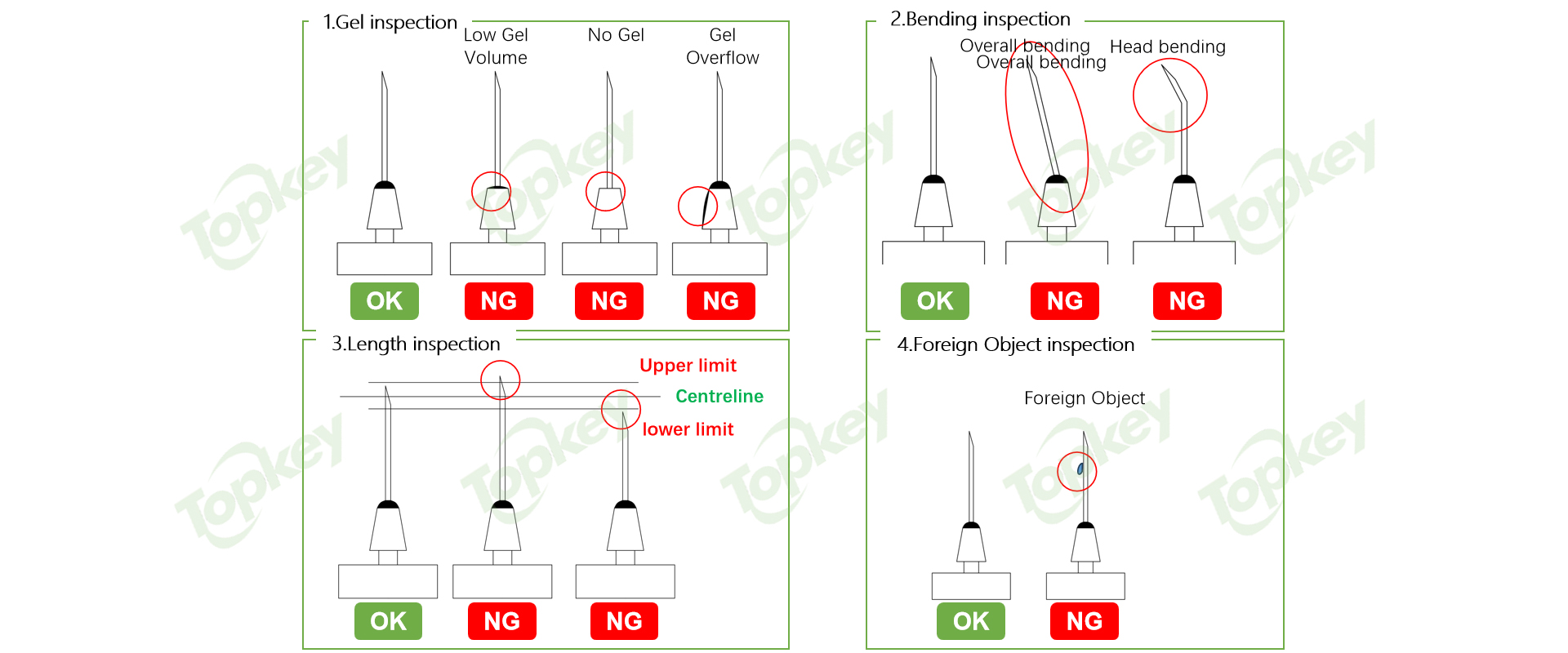

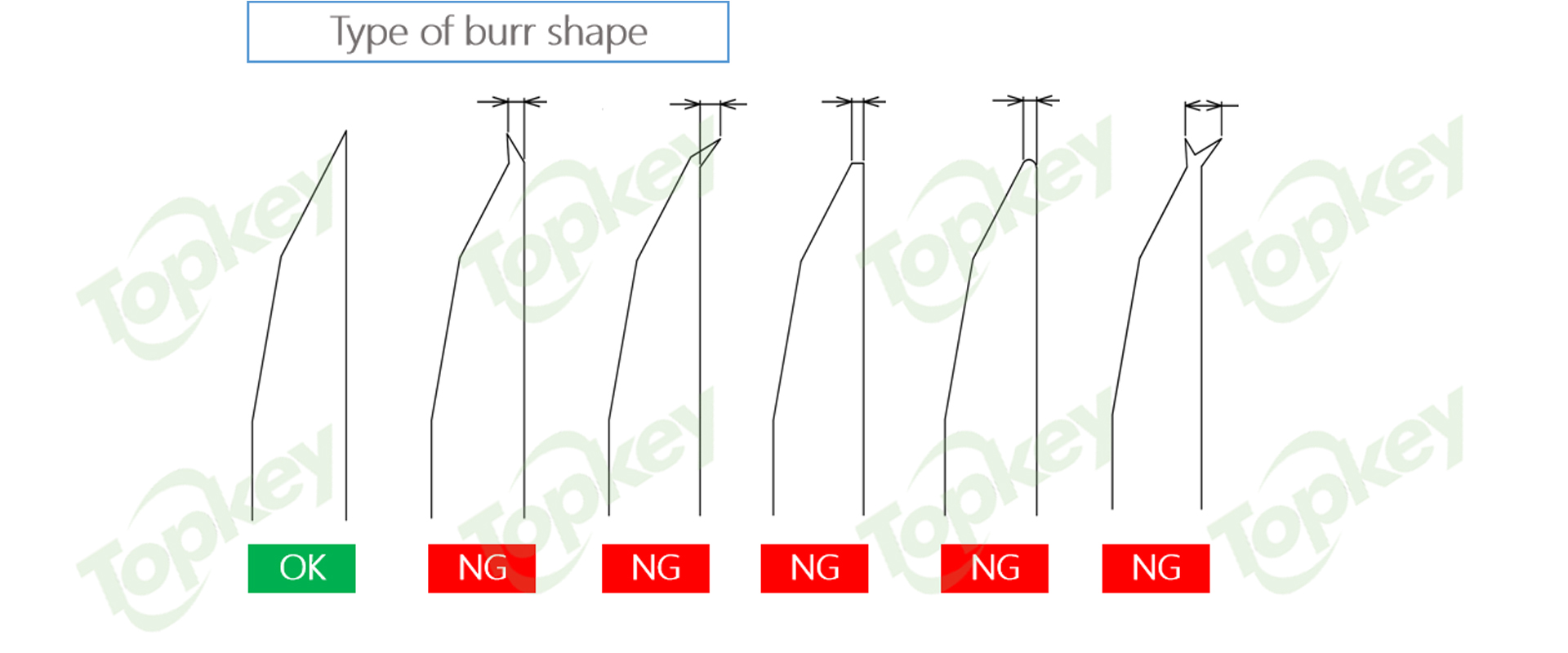

Needle tip inspection（Burrs）

5.Needle Appearance Vision Inspection system

The Needle Appearance Vision Inspection system detects 100% of the defects that occur during needle assembly and gluing, and the advanced inspection technology results in high quality products.

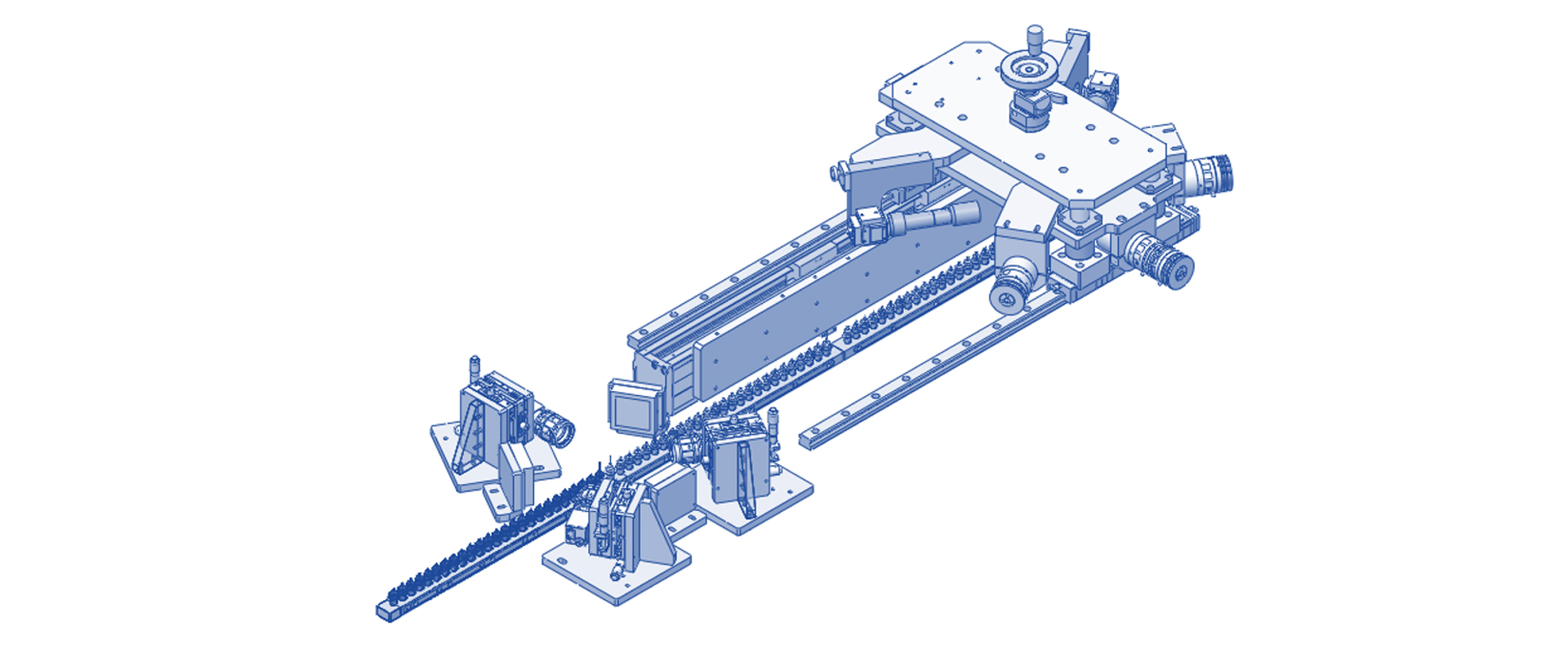

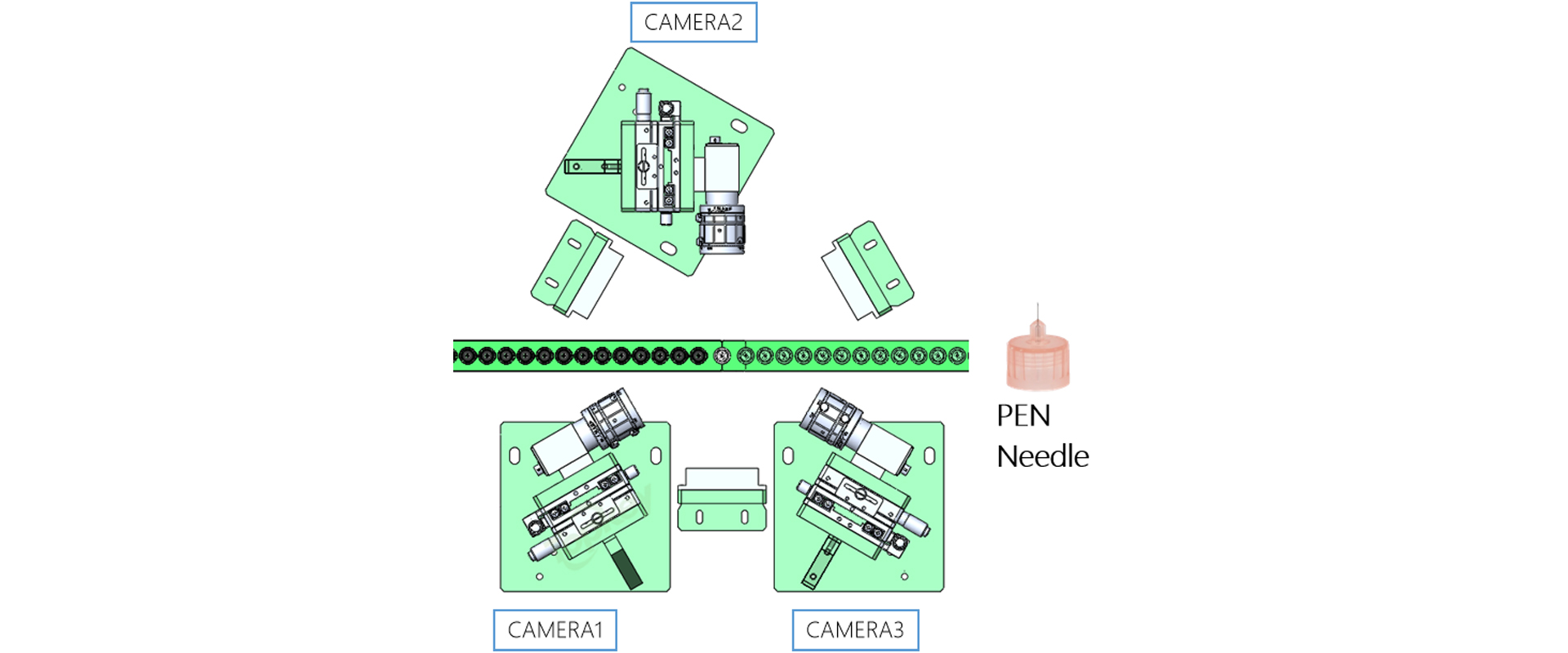

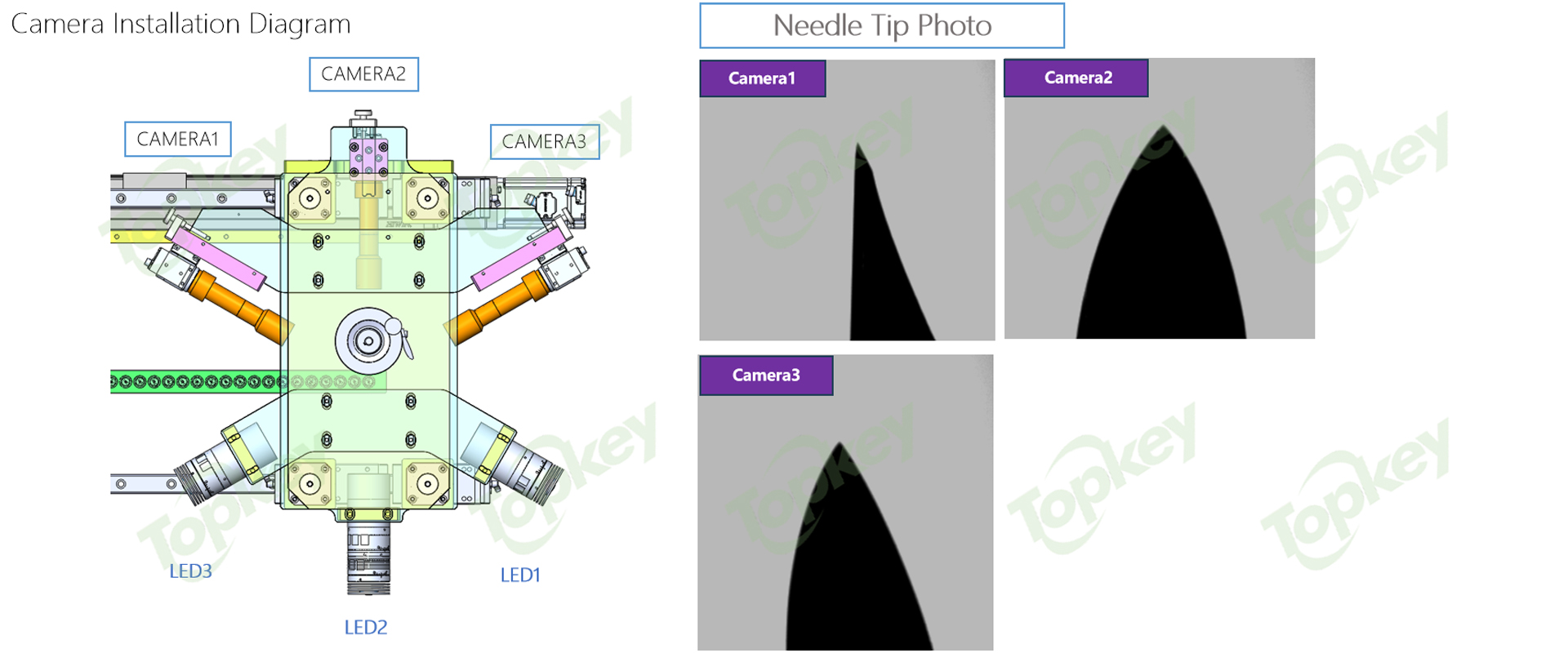

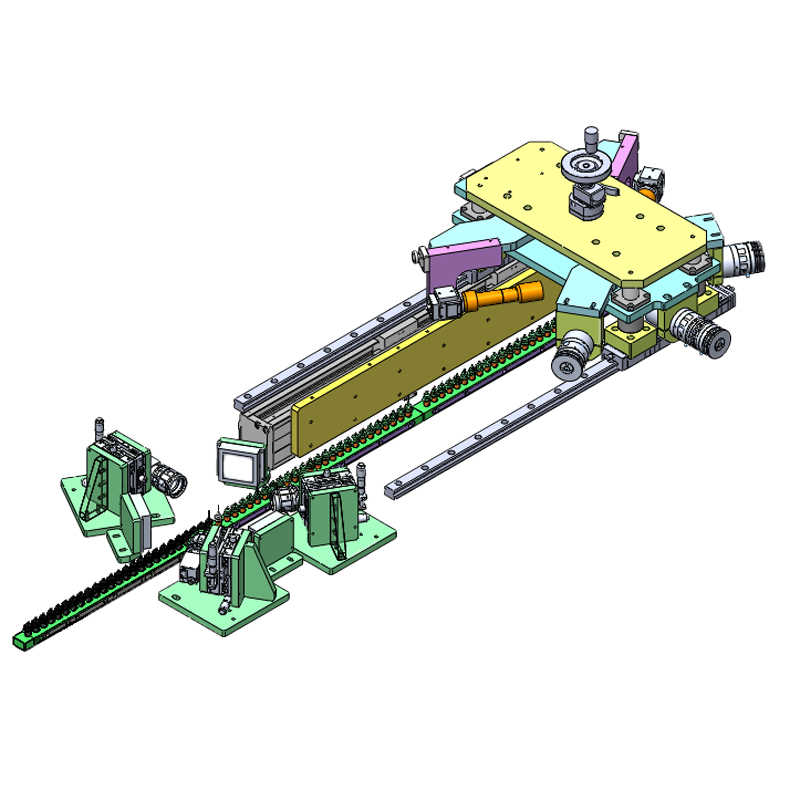

Camera Installation Diagram

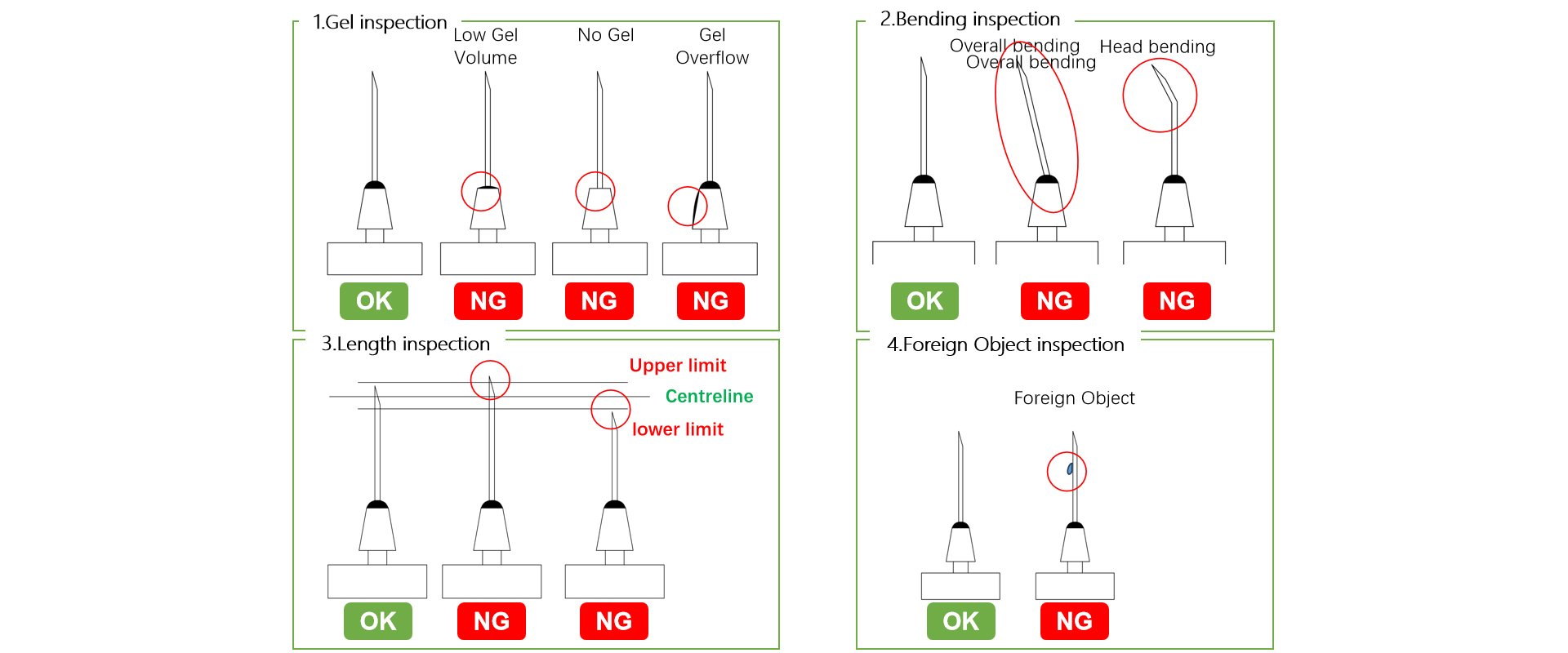

Needle appearance vision inspection

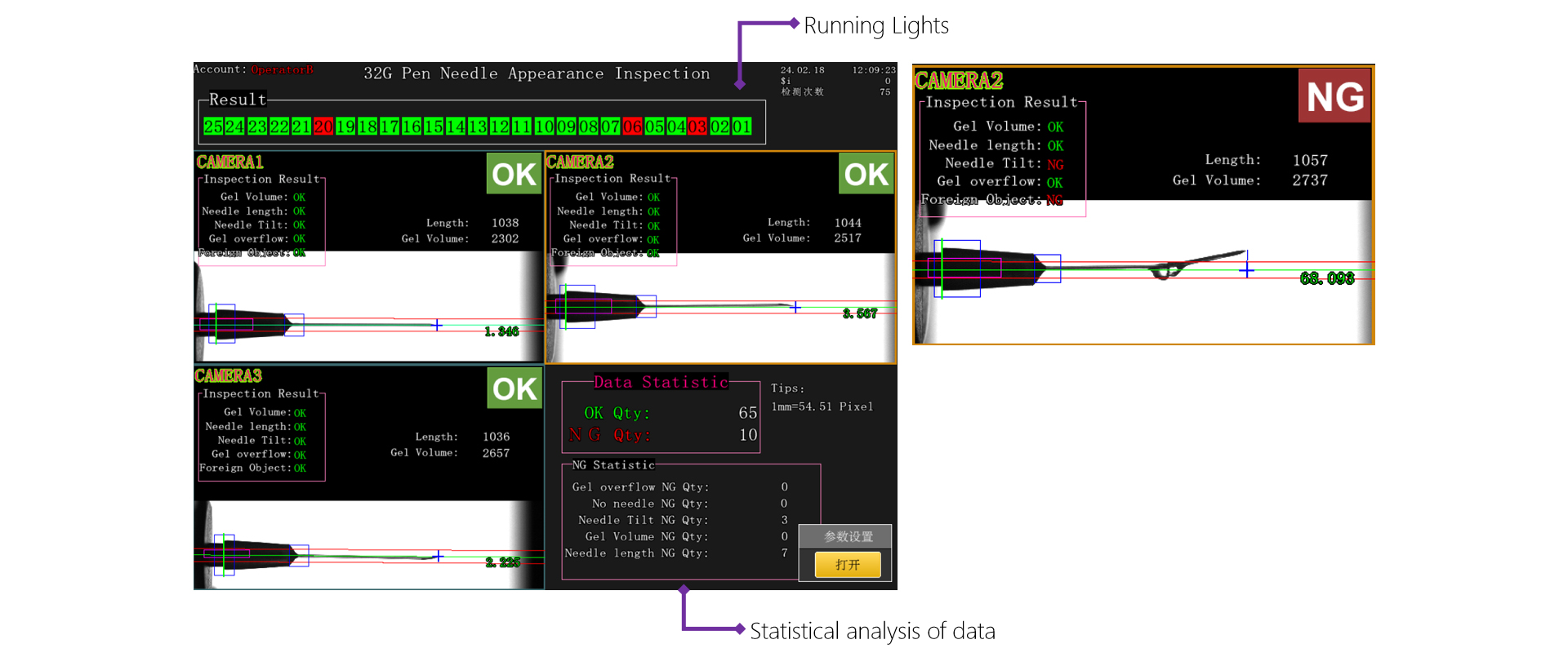

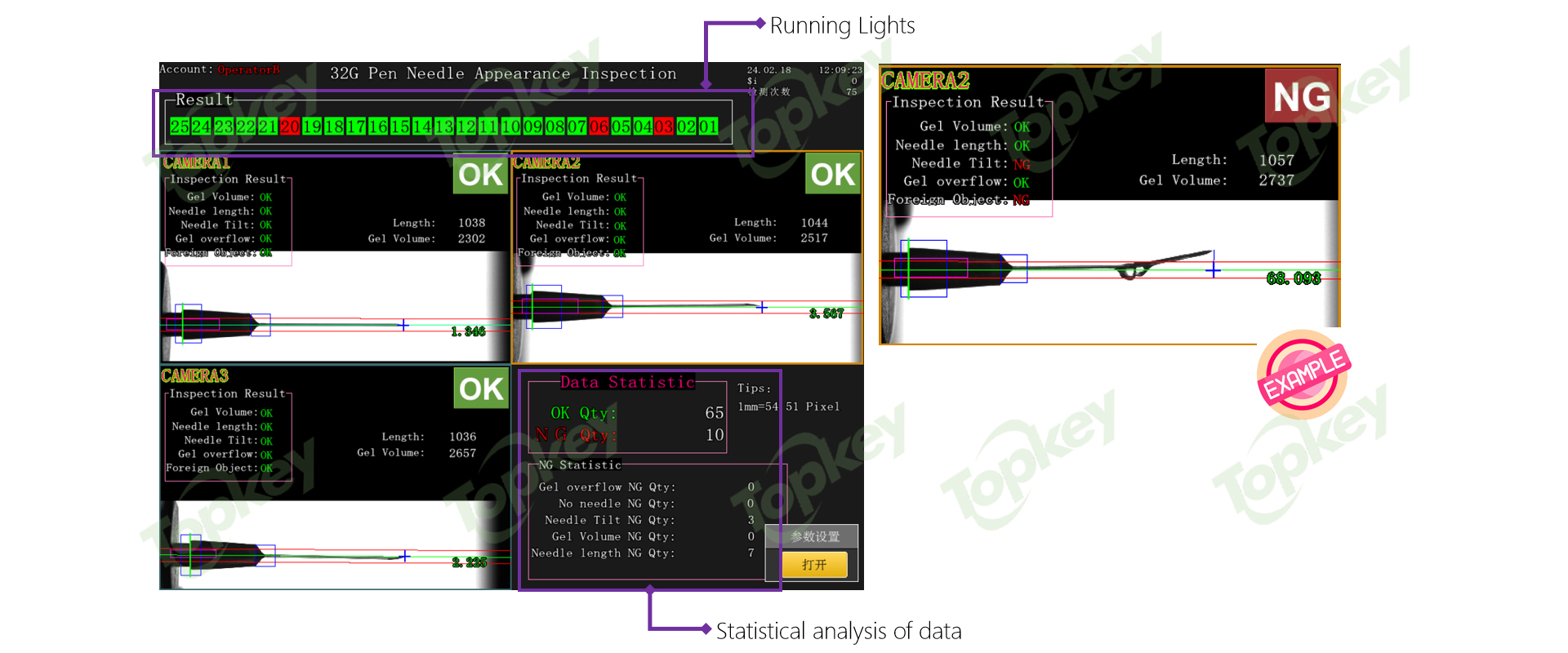

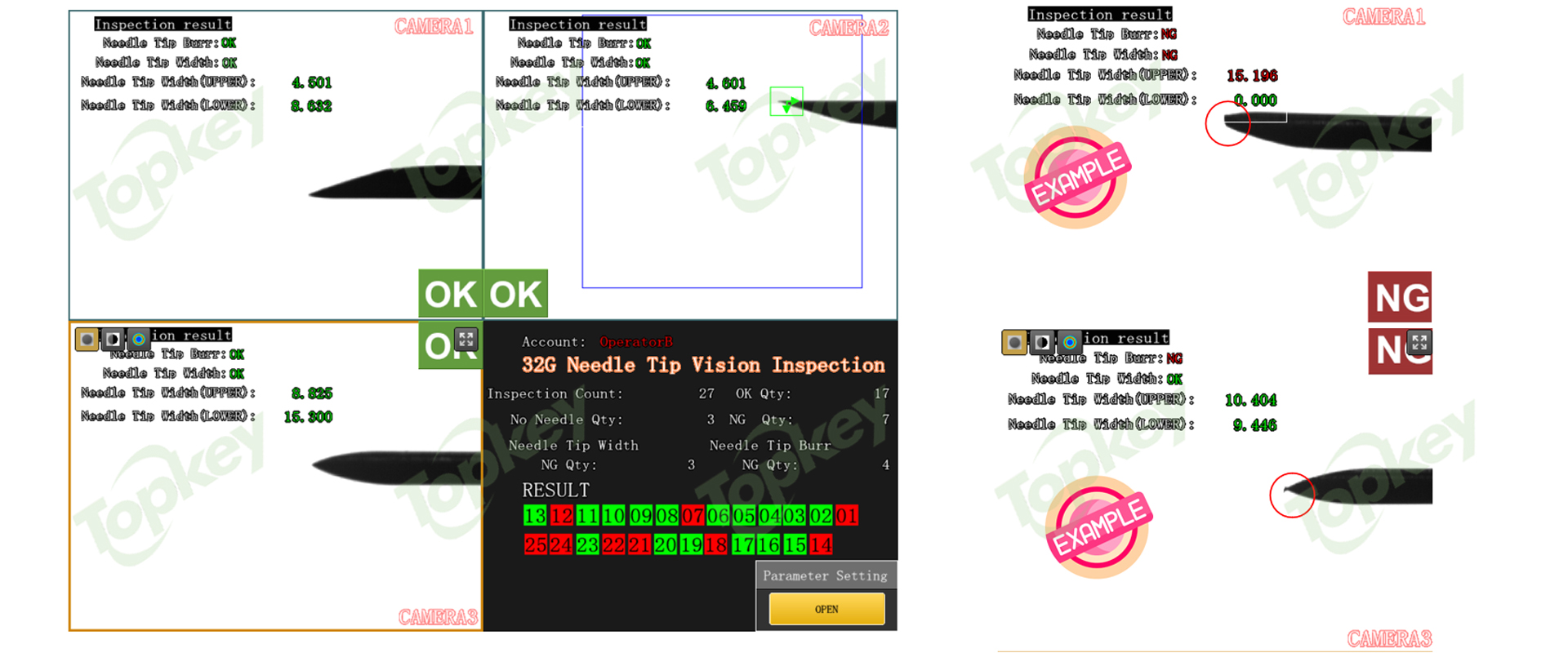

Vision inspection software has running lights, data statistics classification and other functions for easy viewing.

6.Needle Blocking Inspection System

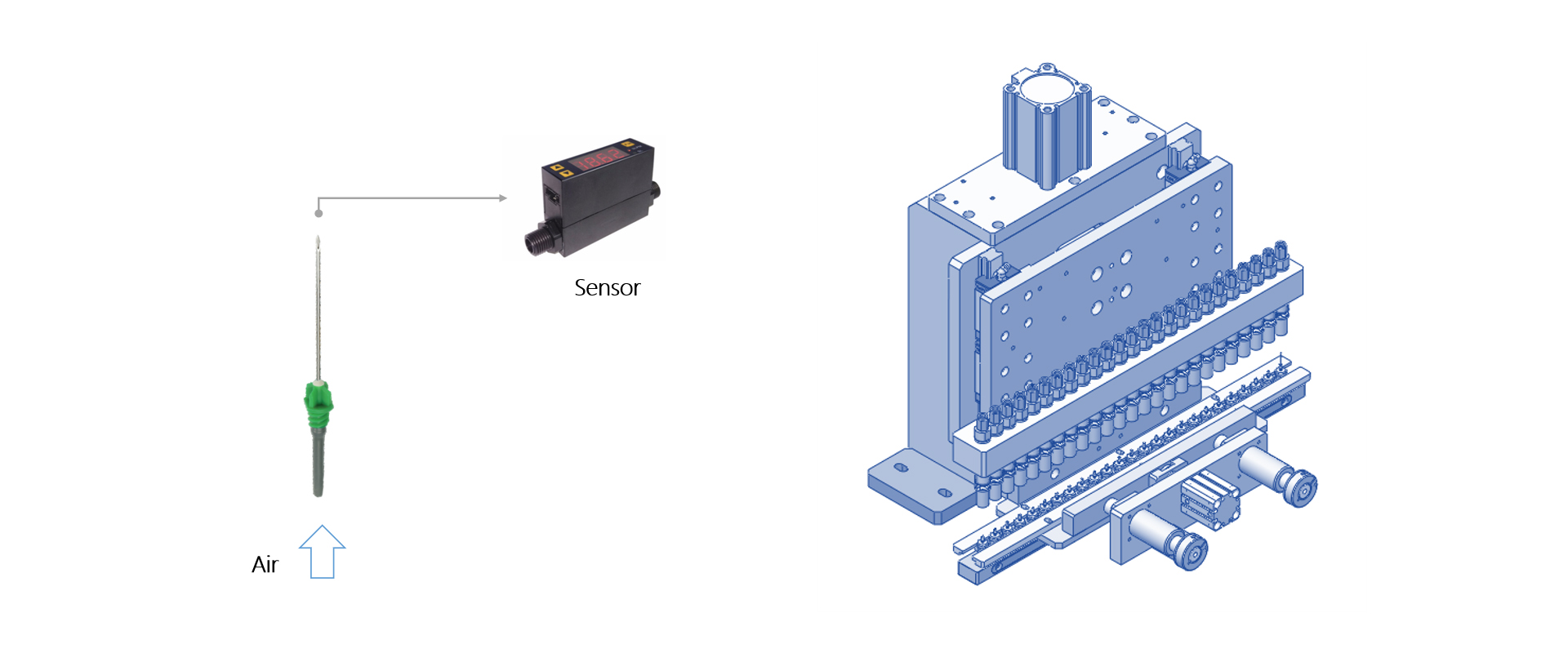

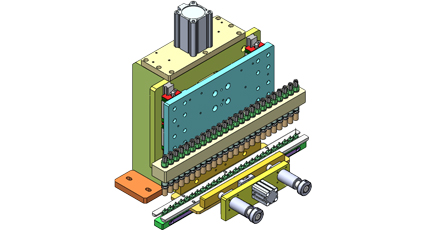

High-precision detection of needle blockage

For extremely fine diameter pen needles, we have developed the industry's highest precision pen needle blocking detection system, which is capable of detecting 100% of blocking defects.

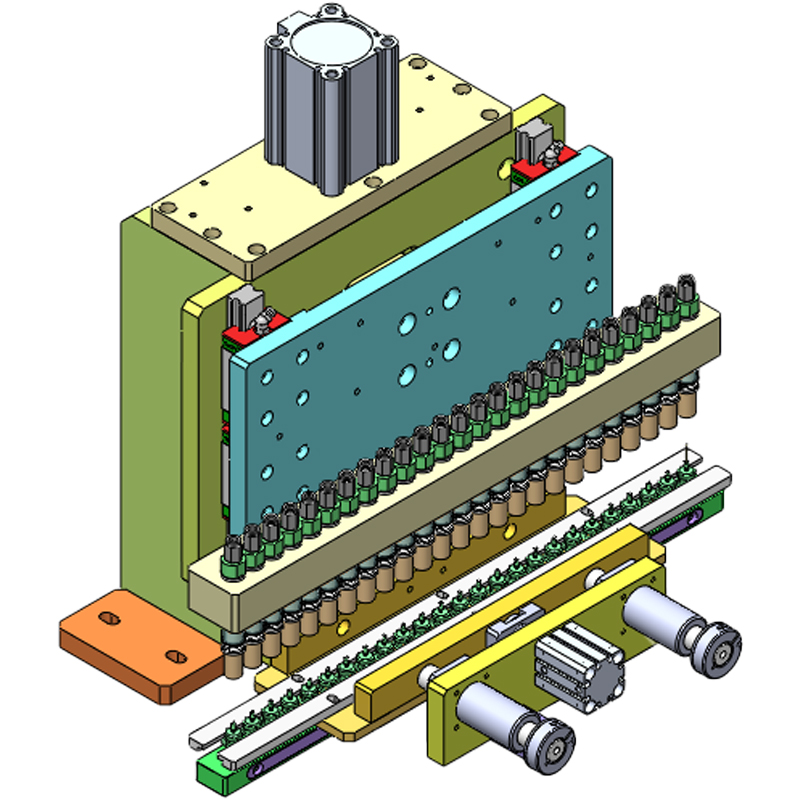

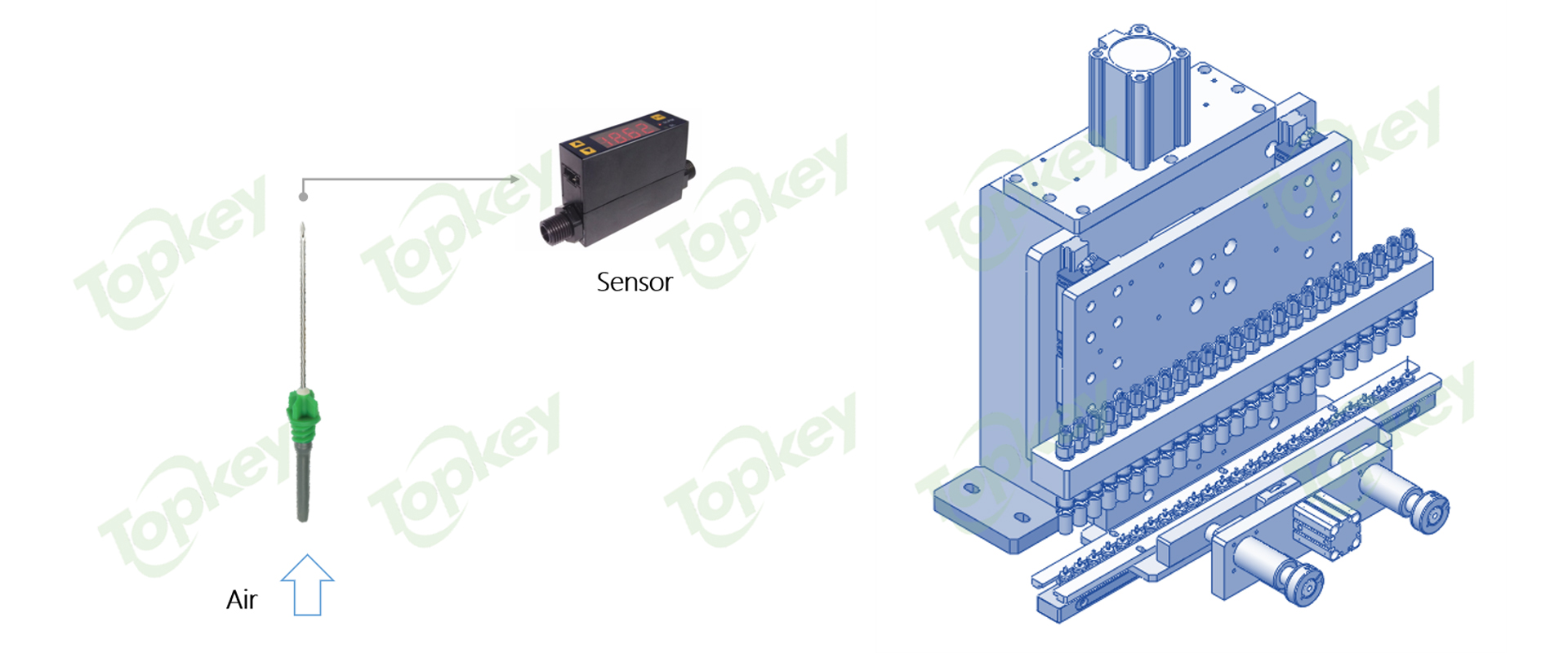

After the pen needles are completely sealed above and below, the blocking is detected by regulated precision pressure, using the industry's highest precision pressure sensors for one-to-one detection of the pen needles.

Company Introduction

Our Technologies

TOPKEY specializes in medical automation technologies, with a focus on precision inspection and manufacturing solutions for medical devices. Our R&D team continuously innovates, combining medical device regulations with proprietary software to deliver solutions that adapt to evolving manufacturing standards.
Core Strengths

With numerous qualifications and more than 20 years of continuous development, As a market leader in the automated medical consumables production equipment industry, Topkey-tech is committed to providing advanced smart manufacturing solutions for medical consumables factories.
Blood Collection Needle Assembly Machine

Blood collection needle assembly machine range is from 18G to 34G. In order to improve the assembly quality of the needles, TOPKEY has an original mechanical structure and high-quality machined parts. The original visual inspection technology detects 100% of the smallest defects in the tip of the needle and also detects blockages in the 34G holes. The entire assembly process is monitored by sensors and vision inspection systems, and various production data can be statistically analyzed on the HMI.
