Blood Collection Tube 360° Vision Inspection

Blood Collection Tube 360° Vision Inspection is a core technical solution for the production and pre-clinical quality control of medical blood collection tubes. It aims to eliminate the interference of blood collection tube quality defects on test results through full-dimensional visual inspection.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Blood Collection Tube 360° Vision Inspection

Technical Information

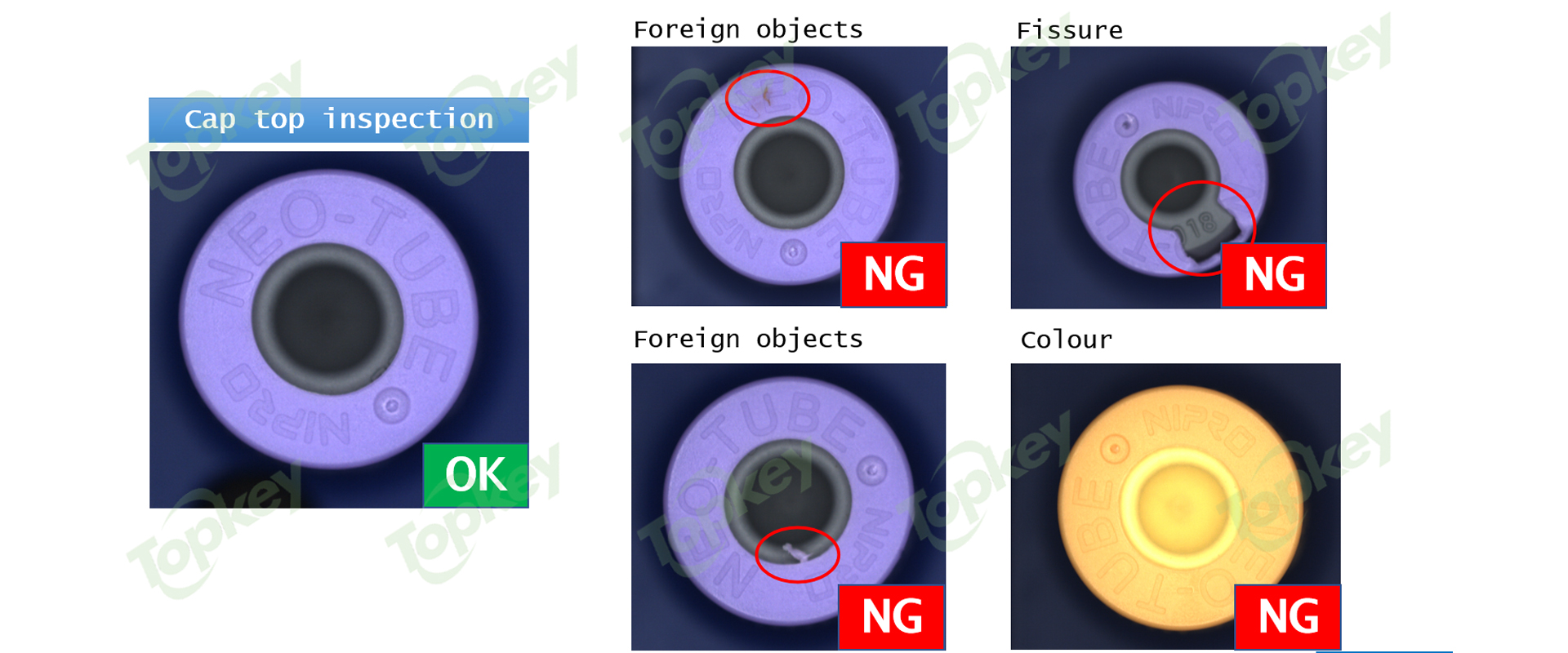

1.Cap top insection

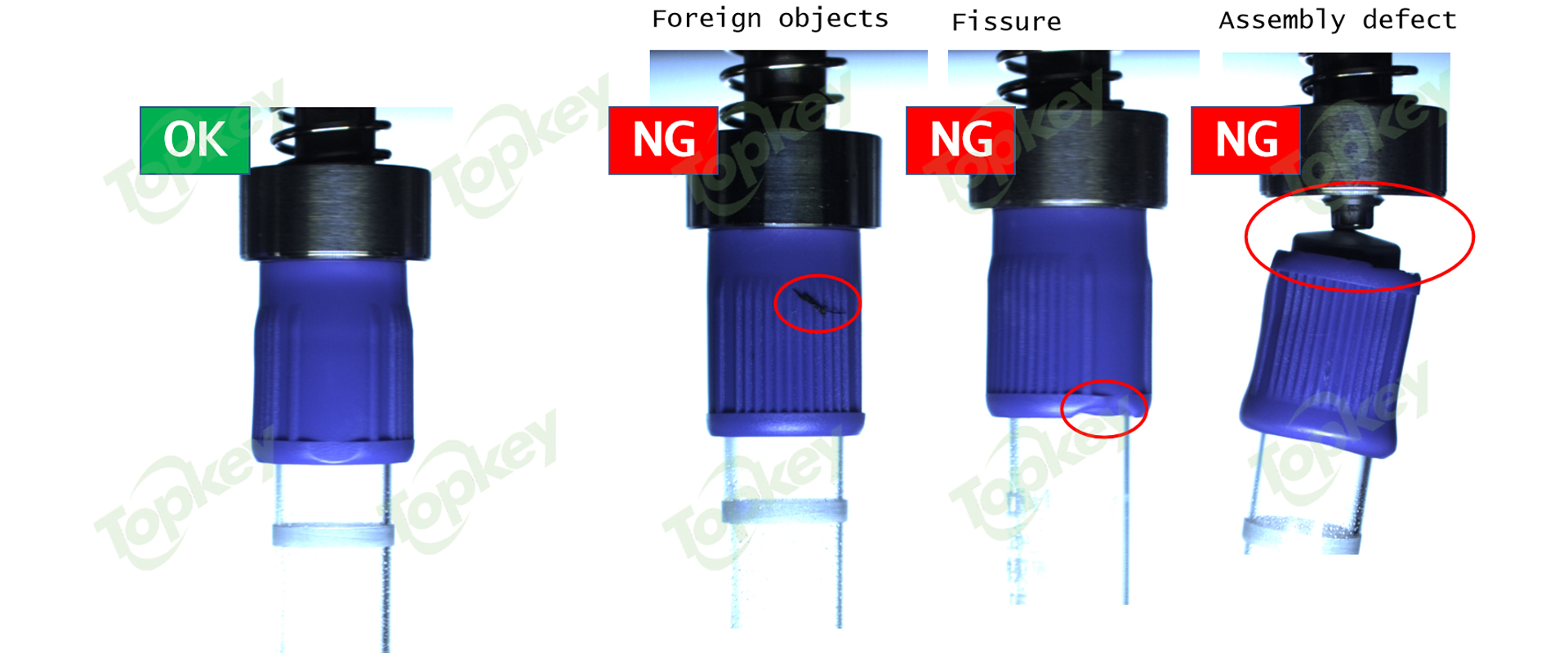

2.Cap side insection

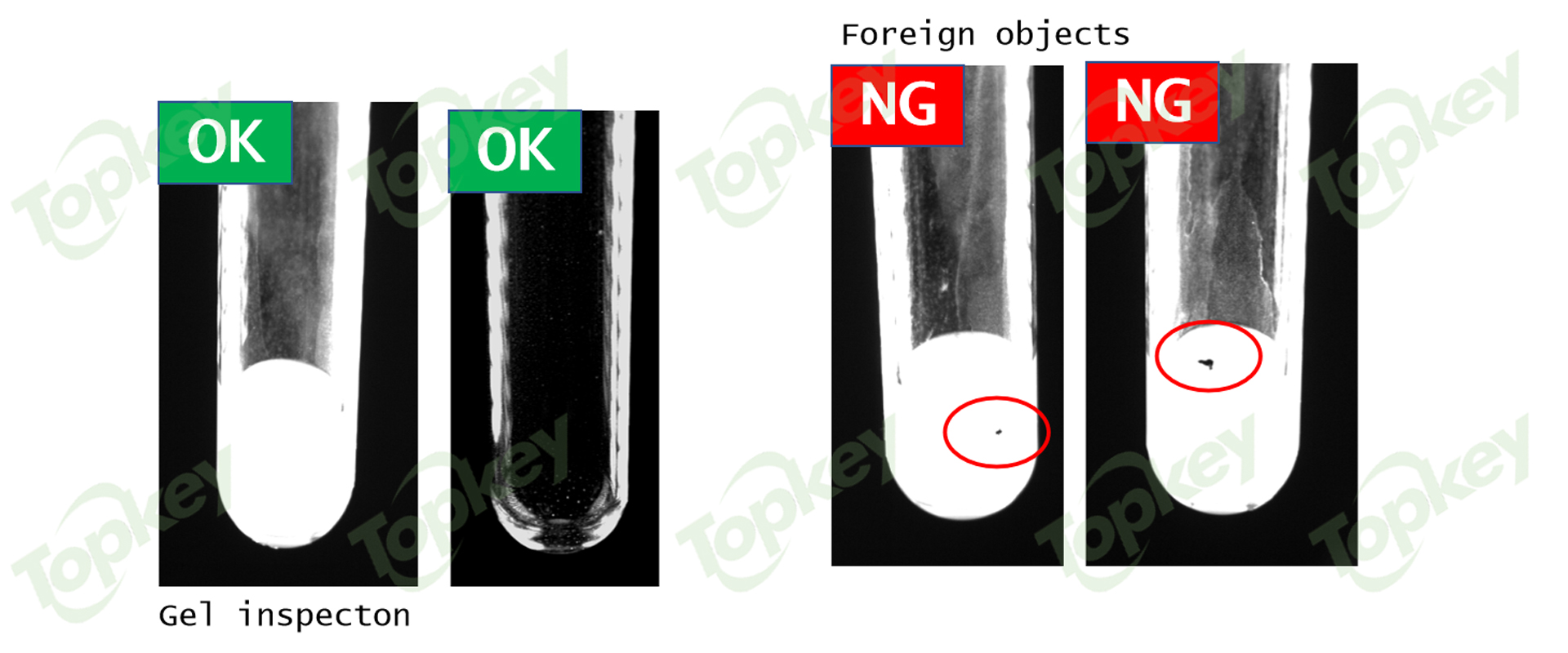

3 .Tube bottom insection

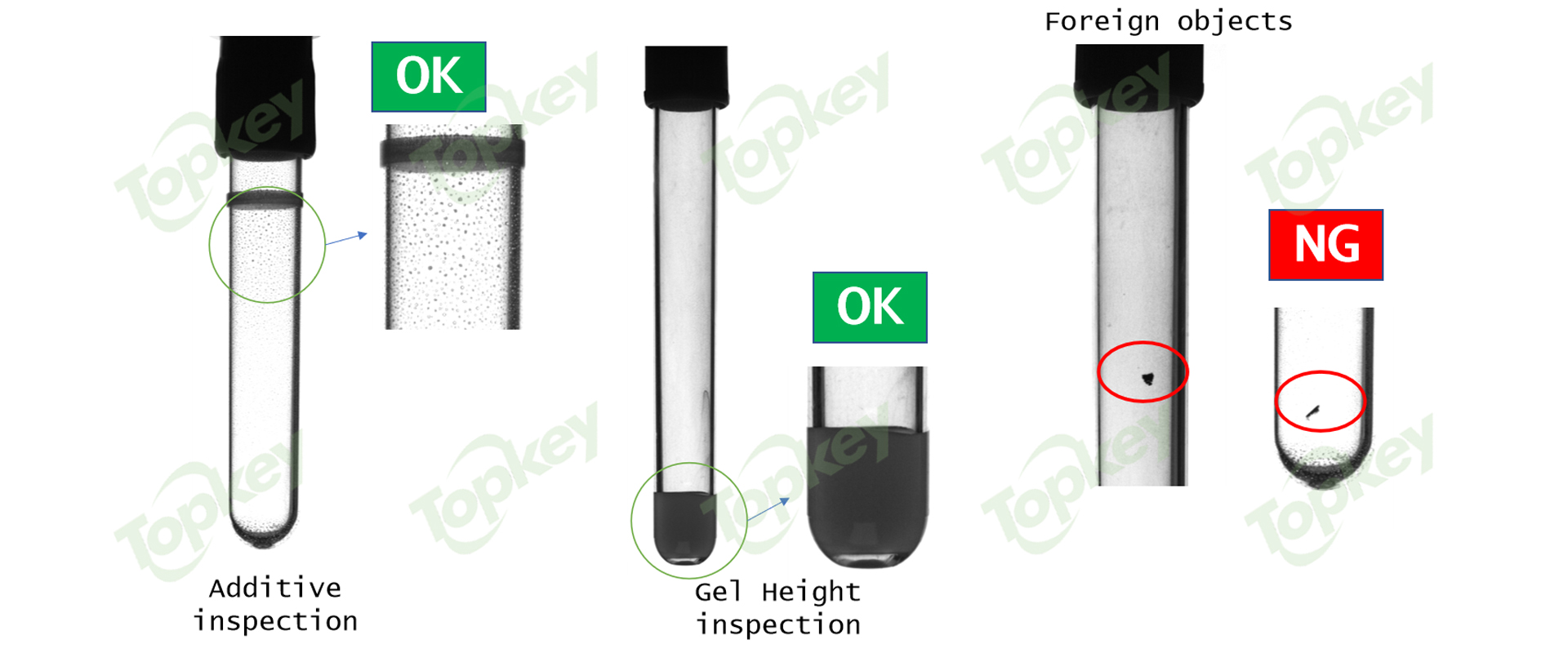

4.Tube side insection

5.Needle Tip Vision Inspection System

The Needle Tip Vision Inspection System, which has been in operation at Topkey Company's factory for more than a decade, is stable and reliable and is capable of identifying 100% of needle tip defects. Defects are recognised by detecting the shape of the needle tip and even small defects can be detected.

1)Inventor of Needle Vision Inspection System, NIPRO, Japan
2)Capable of detecting burr defects of various shapes
3)360°Visio inspection
4)Japan KEYENCE Ultra High Speed Vision System
5)Compatible Needle Size: 34G~18G

360° Vision Inspection System
1)3-direction camera detects the shape of the needle tip in 360°
2)Ultra-high-speed processing capability,capable of completing a vision inspection in 35ms
3)Pictures of NG products can be saved
4)Built-in statistical analysis function

Needle tip inspection（Burrs）

6.Needle Appearance Vision Inspection system

The Needle Appearance Vision Inspection system detects 100% of the defects that occur during needle assembly and gluing, and the advanced inspection technology results in high quality products.

Camera Installation Diagram

Needle appearance vision inspection

Vision inspection software has running lights, data statistics classification and other functions for easy viewing.

Hot Selling Machine

Company Introduction

Our Technologies

TOPKEY specializes in medical automation technologies, with a focus on precision inspection and manufacturing solutions for medical devices. Our R&D team continuously innovates, combining medical device regulations with proprietary software to deliver solutions that adapt to evolving manufacturing standards.

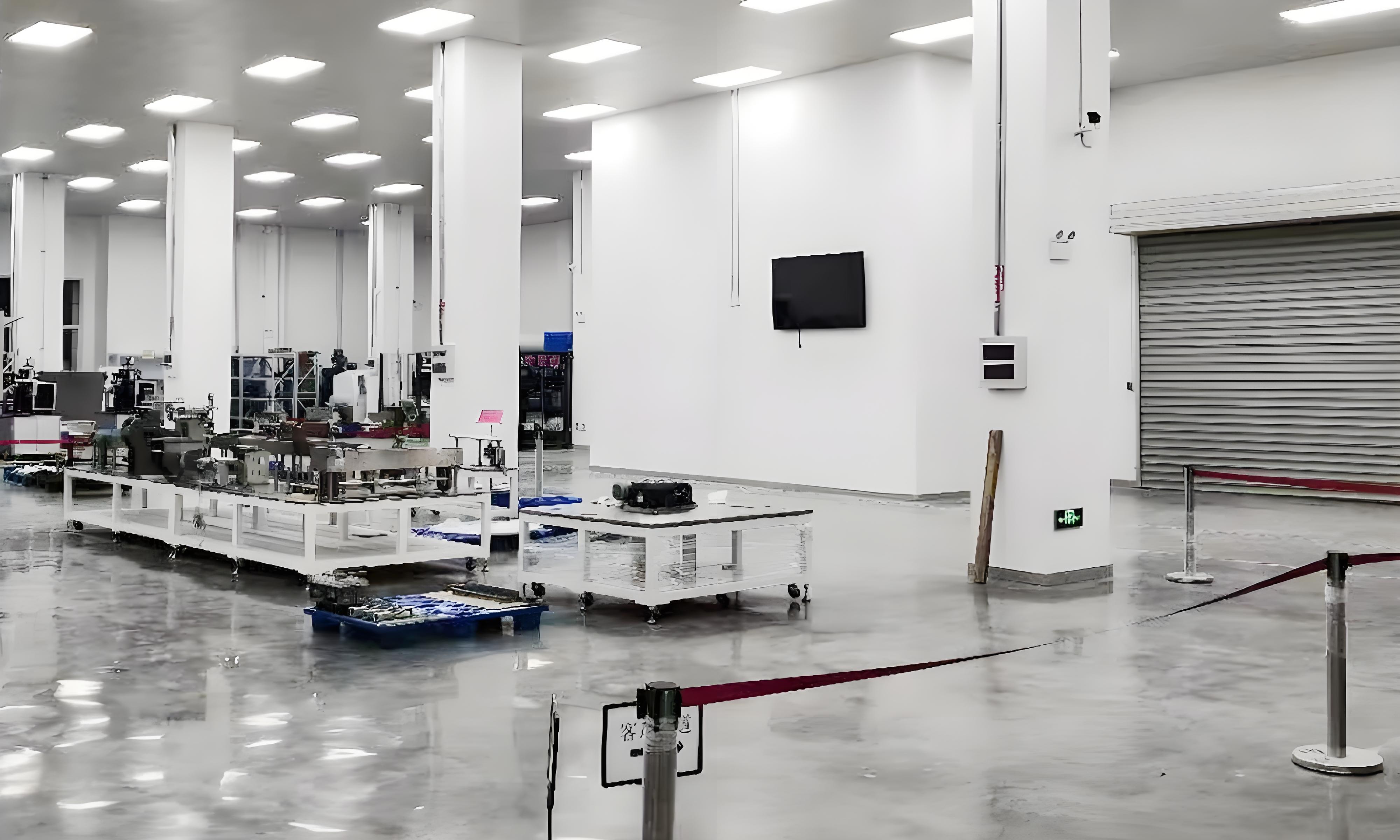

Core Strengths

With numerous qualifications and more than 20 years of continuous development, As a market leader in the automated medical consumables production equipment industry, Topkey-tech is committed to providing advanced smart manufacturing solutions for medical consumables factories.
Blood Collection Tube 360° Vision Inspection

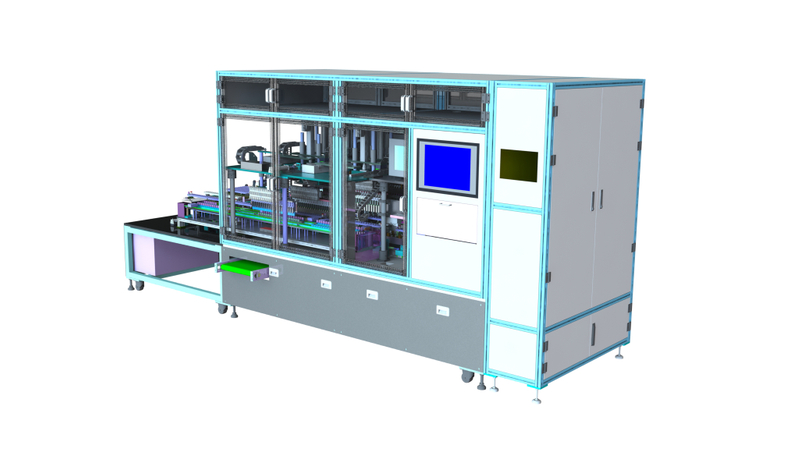

In the large-scale production process of medical blood collection tubes, the Blood Collection Tube 360° Vision Inspection Machine can ensure product quality compliance and prevent defective products from entering the market. Relying on high-resolution visual imaging and AI algorithms, this equipment enables full-dimensional and dead-angle-free defect detection of blood collection tubes, accurately identifying subtle flaws that may occur during the production process, and building a solid defense for the safety and accuracy of clinical blood sample collection and testing.
