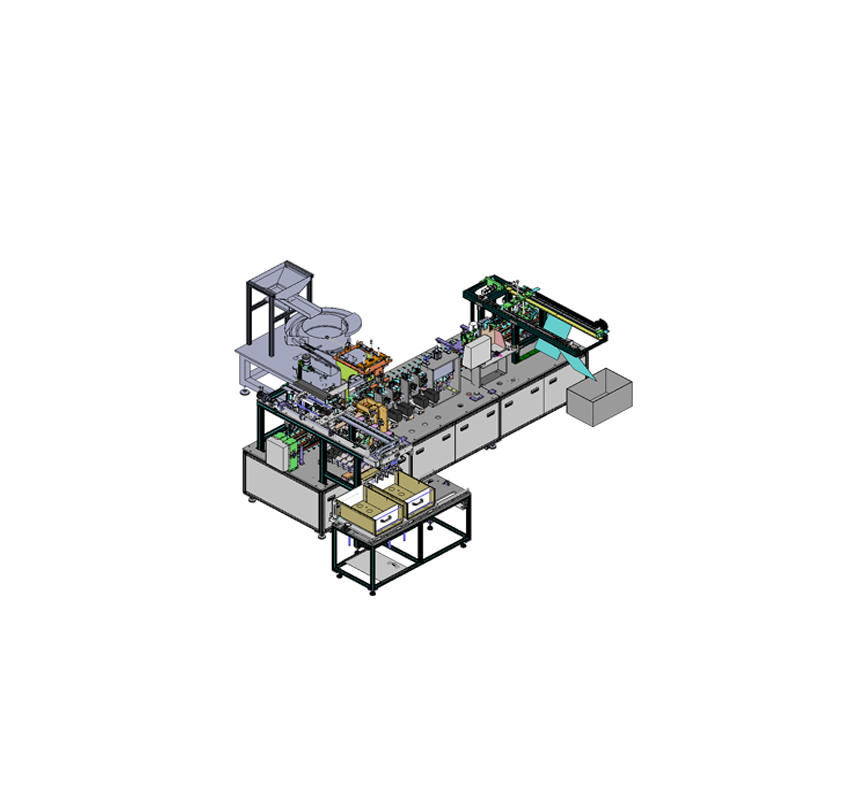

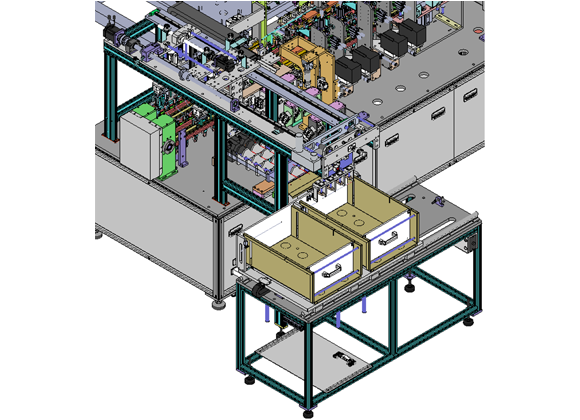

3.Our Technology 1）Tube Supply a.For cut tubes
b.2 sets of boxes can be switched from left to right *One set of boxes is used to load tubes while the other set of boxes can manually refill tubes
c.Sensors check that tubes are loaded
d.Compatible with the loading of tubes of different lengths by means of servo motors

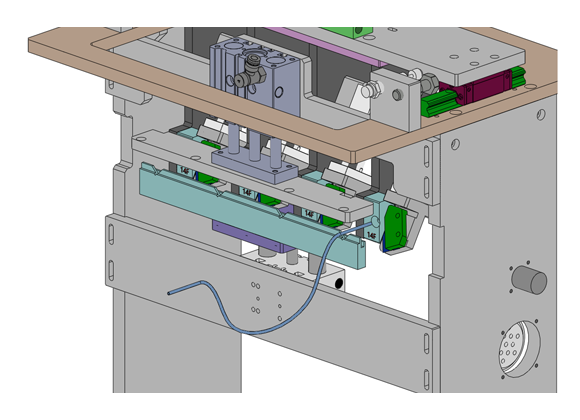

2)Tube Cutting a.Vertical or bevelled cuts according to requirements
b.Cutting process ensures stable tube head formation

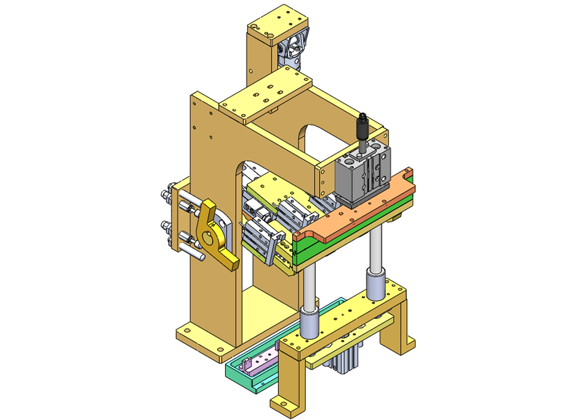

3)Silicone Coating
Silicone coating process provides lubrication during tube head forming process

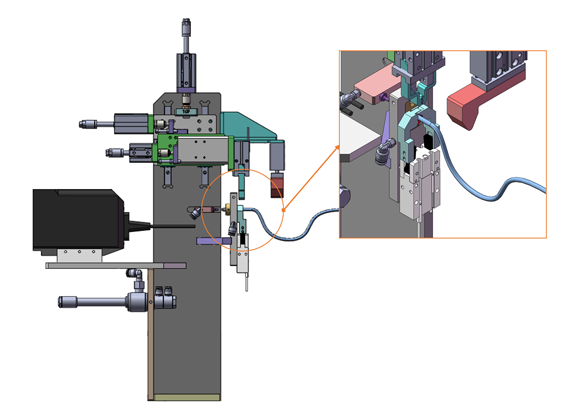

4)Tube Head Forming
a.Adoption of air-cooled radioffequency generator
b.Adopting vortex tube for rapid cooling of forming moulds
c.Positioning mechanism in tube forming
d.Forming parameters can be set on the HMI

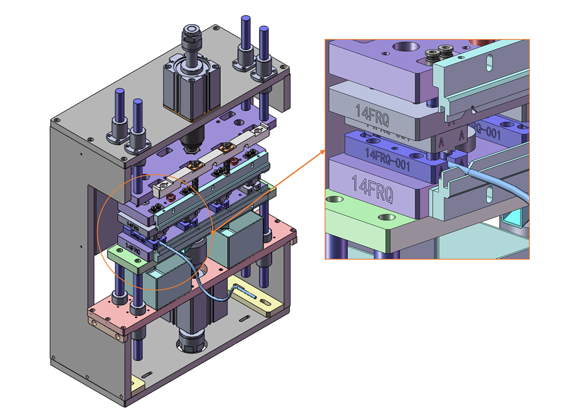

5)Hole Processing
Different punching mould can be changed according to specifications

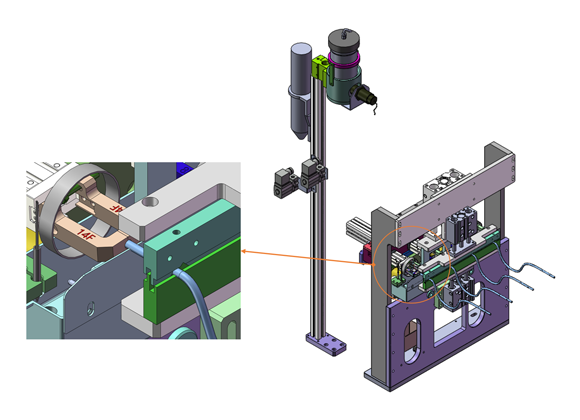

6)Cyclohexanone Adhesive Coating
Uniform amount of cyclohexanone coating

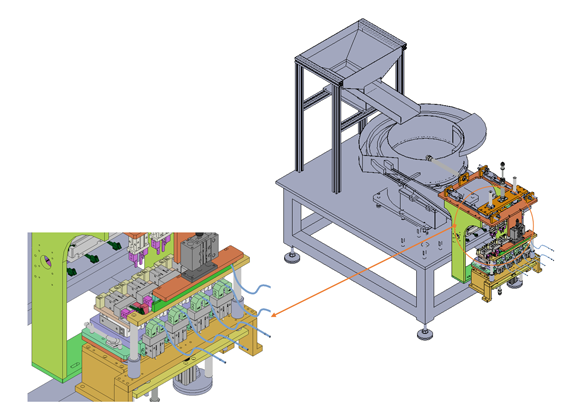

7)Connector supply
Depending on the shape of the connector, it is necessary to change the corresponding parts feeder

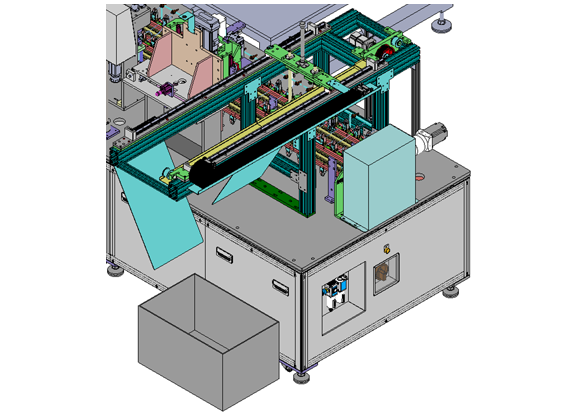

8)Product Unloading
After the NG is automatically rejected, the OK product falls into the plastic basket
