How Can Vision Inspection Improve Medical Device Assembly?

A tiny burr can turn a finished medical device into a rejected product. Manual checks may miss defects when lines move fast. A vision inspection system examines each part during assembly. It verifies shape, position, dimensions, labels, and surface quality. In this article, you will learn where vision adds value and how to integrate it well.

Key Takeaways

● A vision inspection system checks every presented part using fixed, repeatable acceptance rules.

● It can find scratches, cracks, burrs, blocked bores, bent needles, missing parts, and poor alignment.

● Multi-camera and rotating inspection can cover curved products that hide defects from one camera.

● Inline checks stop bad parts before filling, packaging, sterilization, or other costly steps.

● Saved defect images and live statistics support traceability, troubleshooting, training, and process improvement.

● Stable lighting, controlled handling, and validated thresholds are essential for reliable results.

● Recipe-based settings simplify inspection across different sizes, colors, and product configurations.

● The best system matches defect size, line speed, rejection timing, data needs, and future formats.

● Vision does not replace process validation. It strengthens control through objective inspection evidence.

How Does a Vision Inspection System Improve Medical Device Assembly?

A strong inspection strategy does more than find damaged products. It checks whether each assembly step produced the intended result. The system can inspect, classify, record, and signal the line before defects spread.

Detects Surface Defects Operators May Miss

High-resolution cameras can reveal small scratches, cracks, chips, burrs, and deformation. These faults may be hard to see during fast manual checks. Fixed optics and lighting also apply the same standard across shifts, reducing variation from fatigue or personal judgment.

Verifies Every Required Component

The system can confirm caps, hubs, plugs, needles, labels, and other required parts. Presence checks stop incomplete devices from reaching final packaging. They also expose feeding errors before many assemblies receive the same missing component.

Confirms Position, Orientation, and Alignment

Correct parts can still fail when they sit incorrectly. Vision can check cap seating, needle alignment, label position, hub attachment, and insertion depth. It compares each image against defined limits and flags assemblies outside the approved range.

Measures Dimensions and Assembly Tolerances

A vision inspection system can measure length, diameter, gaps, edge position, or component height. These measurements can reveal drift from worn tooling, unstable fixtures, or changed material. Teams can respond before the process creates a large defective batch.

Covers Curved Parts from Multiple Directions

One camera may miss defects on cylindrical tubes or narrow needles. Multiple cameras and controlled rotation provide broader coverage. They can inspect tube sides, bottoms, caps, needle tips, and bores while reducing shape-related blind spots.

Rejects Defects Before They Move Downstream

After inspection, the controller sends a pass or fail signal. A synchronized station removes the failed part. This protects filling, counting, packaging, and sterilization steps from spending resources on unusable products.

Which Medical Device Assembly Defects Can Machine Vision Detect?

The defect list depends on product risk and camera access. Manufacturers should define each defect, minimum size, and acceptance rule before selecting equipment.

Needle Tip, Bore, and Straightness Defects

Needle inspection can check damaged tips, grinding faults, burrs, blocked bores, bending, length, and inner diameter. These features need stable presentation and suitable magnification. Testing should include real defects near the acceptance limit.

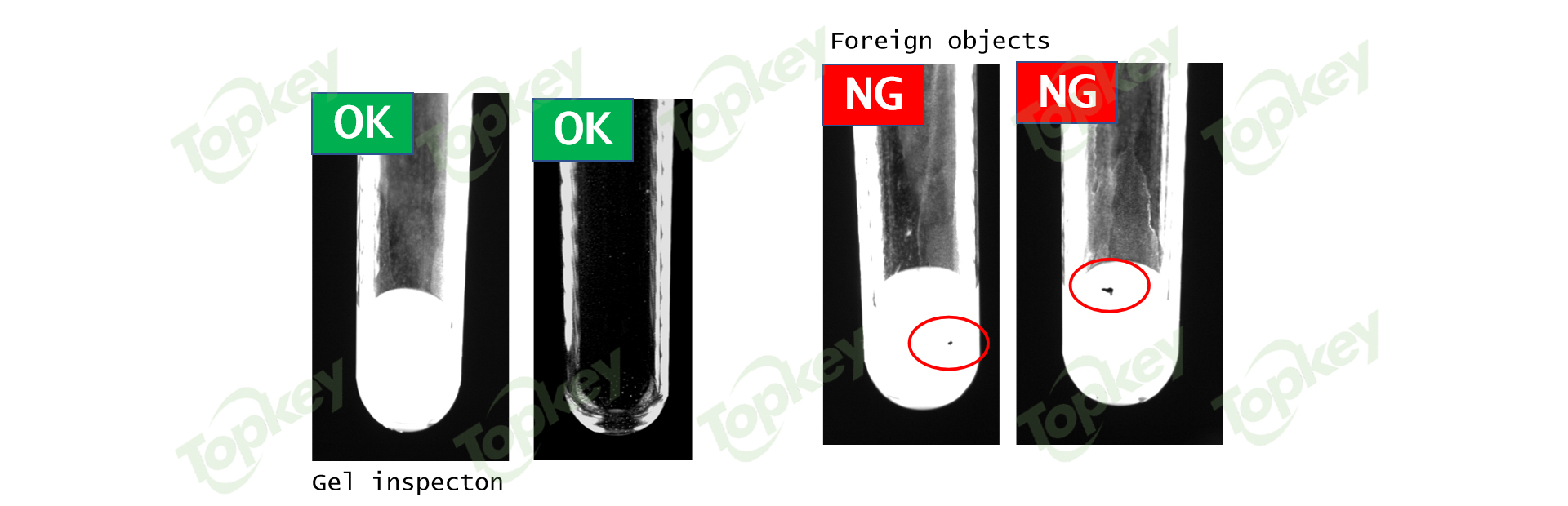

Tube and Cap Assembly Defects

Transparent tubes may show micro-cracks, scratches, contamination, poor cap placement, or dimensional variation. Multi-direction inspection helps because reflections and curved surfaces can hide flaws. Good lighting separates defects from normal plastic marks.

Label, Additive, and Configuration Errors

Vision can verify label presence, cap color, tube format, and visible additive conditions. It can also identify product mix-ups when visual differences are clear. Each recipe should match the intended production order.

Where Should Vision Inspection Be Added to an Assembly Line?

Inspection creates the most value near the process creating the defect. This placement shortens feedback time and simplifies root-cause analysis.

After Critical Assembly Operations

Add inspection after needle insertion, cap pressing, gluing, bonding, or fastening. An immediate check connects a defect to one step. Engineers can adjust tooling, feeding, pressure, alignment, or adhesive control faster.

Tip：Place the first inspection point after the operation carrying the highest defect risk and downstream cost.

Before Filling, Packaging, or Sterilization

Rejecting defects before expensive steps protects materials and capacity. A cracked tube should not receive additives, labels, packaging, or sterilization. Early removal also keeps failed products easier to trace.

At Final Release Inspection

Final inspection checks surface damage, missing parts, poor labels, and assembly errors. It should support earlier controls, not replace them. End-of-line inspection may find defects after most production costs are spent.

How Can Inline Vision Inspection Maintain Production Speed?

A fast camera is not enough. The cycle also includes handling, image capture, processing, rejection, and data storage.

Matches Inspection Time to Line Takt

The slowest inspection step must fit the available cycle time. Test every planned product size, not only the easiest format. Small features may require more images, stronger magnification, or longer exposure.

Uses Several Views Without Creating Bottlenecks

Synchronized cameras can capture several surfaces during one movement. Rotation can expose hidden areas without separate stations. The mechanical design must hold each part steadily because blur and changing angles reduce reliability.

Connects Decisions to Rejection and Buffering

The result must stay linked to the correct part at the reject point. Encoders, sensors, counting, and buffering maintain this link. Poor timing may reject a good part or release a failed one.

How Does a Vision Inspection System Improve Traceability?

Inspection data becomes useful when teams connect it to a time, batch, recipe, and defect class. This turns images into process evidence.

Saves Defect Images and Results

Stored images show why a unit failed. Quality teams can use them for investigations, training, audits, or complaint review. Storage rules should cover image quality, retention, access, and production-record links.

Converts Results into Production Insights

Live counts can show accepted units, rejects, defect categories, speed, and settings. A sudden rise in one defect may point to tool wear, poor feeding, or unstable material.

Detects Process Drift Earlier

Trend data can reveal rising defect rates before final yield drops sharply. Teams can set warning limits and review the process before a full stop becomes necessary.

How Can Manufacturers Reduce False Rejects and Changeover Time?

A sensitive system must separate real defects from acceptable variation. Poor setup may increase scrap even when the cameras are accurate.

Controls Lighting, Optics, and Part Presentation

Transparent plastic, metal glare, dust, condensation, and vibration can change an image. Use controlled lighting, clean optics, stable fixtures, and repeatable orientation. These basics often matter more than complex software.

Sets Thresholds Around Real Quality Needs

Acceptance limits should come from drawings, risk analysis, process capability, and approved samples. Test clear passes, clear failures, and borderline parts. This balances missed defects against unnecessary rejection.

Note：Never accept a zero-defect claim without a documented test method and representative challenge samples.

Uses Recipes for Different Product Formats

Stored recipes can change thresholds for size, color, gauge, label, or assembly type. Recipe control reduces manual entry and changeover time. Access rights also prevent unapproved settings from reaching production.

What Business Benefits Can Vision Inspection Deliver?

The main benefit is stronger process control. Savings follow when defects are found earlier and decisions become more consistent.

Reduces Scrap, Rework, and Added Processing

Early detection stops teams from adding labor and materials to failed products. Defect trends also support root-cause removal, reducing repeated sorting, rework, interruptions, and downstream waste.

Creates More Consistent Inspection

Automated vision applies defined rules to every correctly presented unit. Operators can focus on exceptions, maintenance, and improvement. Human review still matters for unusual defects and decisions outside the system’s inspection scope.

Protects Quality and Brand Confidence

Broader coverage and traceable records reduce the risk of unnoticed defects. They also support faster investigations. Manufacturers should describe this value as risk reduction, not a promise that no defect can escape.

How to Select and Integrate a Medical Device Vision Inspection System

Selection should begin with the product and process, not a camera specification. Clear requirements make supplier comparisons more useful.

Defines Defects and Critical Quality Attributes

Build a defect matrix listing location, type, minimum size, severity, inspection angle, and required action. Include acceptable variation. This document guides design, testing, training, and acceptance.

Tests the System with Real Production Samples

Use normal parts, known failures, borderline parts, color variation, and expected conditions. Test across speeds. Record false accepts, false rejects, repeatability, and rejection accuracy before approval.

Confirms Mechanical and Data Integration

Review feeding, fixtures, camera access, line controls, reject timing, space, and cleanability. Define recipe management, image storage, user access, alarms, reports, and production-system connections.

Evaluates Support and Future Flexibility

Choose a partner familiar with optics, lighting, software, handling, and medical assembly. Ask about training, maintenance, spare parts, remote support, and future formats.

Tip：Include representative defect samples in supplier testing, then retain the approved set for future verification.

Conclusion

A vision inspection system improves assembly by finding defects early and recording useful production data. It verifies dimensions, component placement, surfaces, labels, and needle features. Topkey Medical provides integrated inspection solutions using multi-direction imaging, stored defect pictures, statistical analysis, and flexible settings. Its engineering support helps manufacturers match inspection to line speed, product formats, and quality needs. The result is stronger process control, lower waste, and more reliable medical consumables.

FAQS

Q: What is a vision inspection system?

A: A vision inspection system uses cameras and software to check assemblies.

Q: How does a vision inspection system detect defects?

A: A vision inspection system compares images against approved limits.

Q: Why install a vision inspection system inline?

A: A vision inspection system stops defects before costly processing.

Q: What affects system price?

A: Cameras, speed, integration, validation, and data needs affect cost.

Q: Is vision better than manual inspection?

A: It is more repeatable; people handle exceptions.

Q: What causes false rejects?

A: Check lighting, lenses, fixtures, thresholds, and materials.
