Full-Chain Solution for Automated Production of Blood Culture Bottles

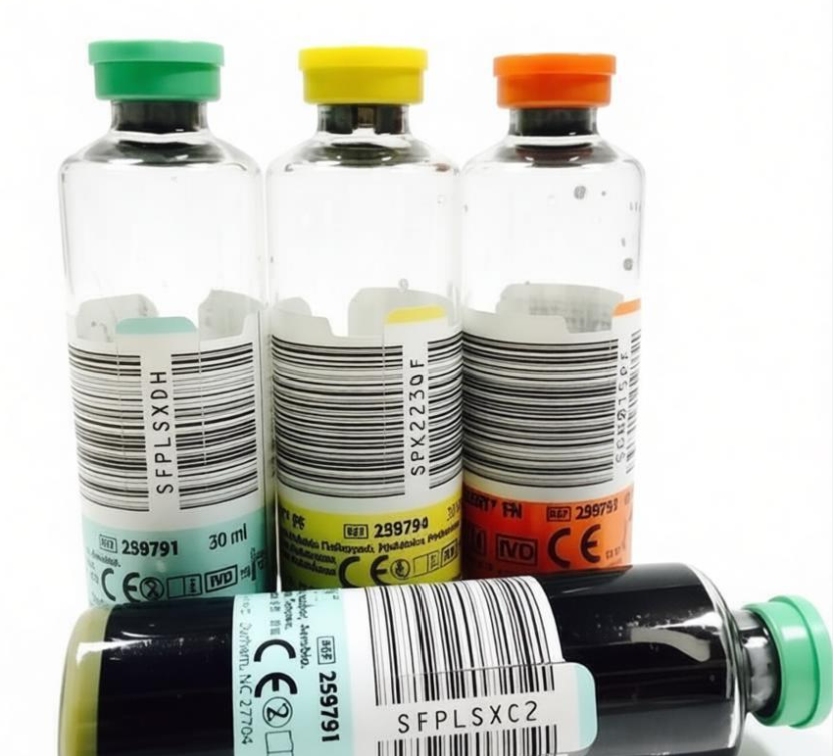

In the clinical diagnosis of sepsis and septicemia, blood culture bottles are essential consumables for ensuring pathogen detection accuracy and optimizing Turnaround Time (TAT). Benchmarked against the world's leading technical standards, high-quality blood culture bottles feature the following core characteristics:

1. Advanced Material & Safety Design

• Shatter-Resistant Plastic Vials: Modern blood culture bottles typically utilize a triple-layer plastic design. Compared to traditional glass, this is lightweight, cost-effective for logistics and disposal, and highly shatter-resistant, significantly reducing the risk of biohazard exposure for medical personnel.

• Triple-Layer Structural Protection: This design ensures a reliable, sealed environment optimal for microbial recovery.

2. Superior Detection & Recovery Capabilities

• Antibiotic Neutralization Technology: For the approximately 50% of patients who have already received antibiotics before blood collection, premium vials integrate advanced resin technology. By precisely filling the vials with macroporous and ion-exchange resins, antibiotic interference is neutralized, optimizing pathogen recovery and shortening detection time.

• Cell Lysis Technology: Products may contain ingredients like Saponin to lyse red and white blood cells, releasing intracellular microorganisms and accelerating microbial enrichment.

• Colorimetric Sensing Technology: Integrated colorimetric sensors at the bottle base are key to early detection. They monitor color changes resulting from microbial growth to provide real-time, early automated warnings, effectively reducing false-negative risks.

3. Diverse Clinical Application Coverage

Modern systems provide a full product matrix to meet various clinical challenges:

• Full Spectrum Environment: Covers Aerobic, Anaerobic, fungal, and mycobacterial detection needs.

• Pediatric Optimization: Small-volume vials (0.5–5.0 mL) designed specifically for pediatric patients to detect challenging pathogens like Kingella kingae.

• Precise Environmental Control: For anaerobic vials, the production process must achieve extreme vacuum levels (deviation mbar) and introduce precise mixed gas ratios to create the perfect micro-environment for anaerobic bacteria .

Leading Life Sciences Manufacturing: Topkey Automated Production Solutions

Topkey Medical Automation provides comprehensive, fully automated intelligent equipment—from reagent spraying and gel filling to vacuum assembly—to empower manufacturers to produce medical consumables that meet these global high standards.

Core Production Equipment: Topkey Intelligent Lines

We provide high-speed and high-quality automated production lines.

1. Reagent Spraying Machine

• Precision Atomization: Utilizes sterile atomization technology to ensure uniform reagent distribution at the bottom and along the lower interior walls of the vials.

• Controlled Dosage & Rapid Drying: Reagent dosage is strictly regulated for consistency. An integrated tunnel oven provides rapid, temperature-controlled drying to effectively preserve reagent activity.

2. Gel Filling Machine

• Foam-Free Process: Designed for solid or semi-solid media, utilizing vacuum technology to ensure filling without bubbles or wall-clinging.

• Thermal Stability: Equipped with an intelligent temperature control module and a low-temperature industrial chiller to maintain molten gel stability, with a filling precision of ±0.1g.

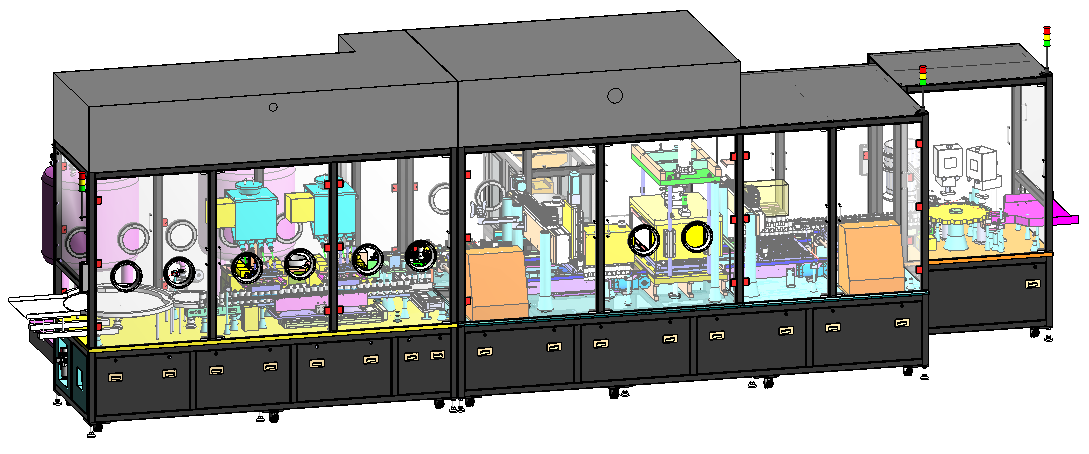

3. Automatic Culture Bottle Filling & Assembly System

As the "brain" of the production line, this system integrates complex control logic to complete the entire assembly in a closed sterile environment .

• Multi-Component Precision Filling: Achieves high-precision loading of macroporous and ion-exchange resins (accuracy±0.1g) and liquid media (accuracy±0.05ml).

• Advanced Vacuum & Gas Control: Topkey’s system manages vacuum extraction and mixed gas introduction with a deviation of 0.5 mbar. It includes online mixed gas ratio detection and adjustable cycles to ensure the perfect environment for every vial.

Why Choose Topkey Technology?

• [World-Class Breakthrough] Mastery of Micro-Resin Bead Filling: The precise dispensing of tiny resin beads was long a global manufacturing bottleneck. Topkey has successfully developed the world’s most advanced micro-bead filling system, overcoming electrostatic adhesion and material breakage to ensure optimal antibiotic neutralization.

• Unrivaled Equipment Quality: Constructed from SUS304/SUS316L medical-grade stainless steel. All material-contact components support quick disassembly and can withstand high-temperature steam sterilization (121℃ for 30 min).

• Full Compliance Support: As a global supplier, we provide factory layout consultation and rigorous IQ/OQ/PQ validation assistance to ensure your facility passes international quality audits.

Topkey Technology: Powering Precision Diagnostics with Masterful Engineering.
