Steps of Blood collection tubes Manufacturing Process

The global demand for precise diagnostic testing is accelerating rapidly. However, scaling up production introduces severe quality control risks for facility investors and operations managers. Inconsistent vacuums, chemical leaching, or poor machine synchronization often lead to batch rejections and regulatory penalties. Managing these technical hurdles is critical to remaining competitive and compliant. This guide deconstructs the complete blood collection tubes manufacturing process. You will discover the common technical failure points and evaluation criteria necessary for setting up a compliant, high-yield operation. Designed for C-level executives, facility investors, and operations managers, this resource helps you evaluate turnkey equipment effectively. You will also learn how to audit potential contract manufacturing partners to ensure long-term reliability and secure product viability.

Key Takeaways

• Regulatory Baseline: Commercial production requires an ISO Class 7 or 8 cleanroom environment and strict adherence to FDA Class II (510k) and ISO 13485 standards.

• Core Bottleneck: Precision in the dosing and vacuum-sealing stages determines product viability; minor machine synchronization errors compromise blood-to-additive ratios.

• Advanced Engineering: High-end applications (like PT double-wall tubes) require rigorous concentricity control, while advanced vacuum techniques increasingly utilize CO2 rather than standard inert gases to maintain blood sample stability.

• Vendor Evaluation: Equipment buyers must prioritize long-term machine synchronization and localized SLA support over baseline component costs.

Strategic Pre-Requisites: Cleanroom Standards and Regulatory Classification

Before procuring machinery, manufacturers must establish a compliant facility footprint. This prevents downstream regulatory roadblocks. You need an environment tailored specifically for medical-grade production. Poor facility planning often leads to contamination issues, which ultimately disrupt output and invite failed audits.

Facility Layout & Environmental Control

Airborne particulates pose a massive risk to diagnostic consumables. You must build out dedicated infrastructure to meet global medical device requirements.

• Cleanroom Infrastructure: Commercial production mandates an ISO Class 7 or 8 cleanroom. This controls particulate counts and minimizes environmental contamination. You must maintain strict airflow protocols around exposed tubes.

• ESG and Lean Manufacturing: Integrating environmental, social, and governance (ESG) goals improves brand reputation. Furthermore, adopting Just-In-Time (JIT) supply chains lowers operational holding costs. It ensures you order raw materials exactly when needed, reducing warehouse bloat.

Regulatory & Documentation Compliance

Machine hardware alone cannot bring a product to market. You must navigate stringent documentation rules.

• Classification: Most regulatory bodies classify these products as Class II medical devices. In the United States, you must navigate the FDA 510(k) clearance pathway.

• Documentation: You must maintain comprehensive Design History Files (DHF) and Device Master Records (DMR). The FDA mandates this under 21 CFR 820.30. These records prove your manufacturing methods remain consistent.

• Batch Traceability: Facilities must establish Unique Device Identification (UDI) readiness. UDI compliance guarantees hospital-level traceability if you need to execute a product recall.

Material Selection and Surface Treatment (Silanization)

Raw material choices directly dictate tube compatibility with biological samples. They also determine the complexity of your processing equipment. You cannot swap materials without recalibrating your entire machinery line.

Glass vs. High-Polymer Plastics

Modern production heavily favors high-polymer plastics, but glass still holds a vital niche. Each material presents distinct operational realities.

Stoppers and Closures

Rubber stoppers act as the primary barrier maintaining negative pressure. Top-tier facilities utilize highly biocompatible silicone rubber. Silicone ensures long-term airtightness and reliable vacuum retention. It also prevents unwanted chemical interactions between the stopper and the diagnostic additives.

The Silanization Step

Silanization is a critical pre-treatment process for plastic tubes. Standard plastics possess a high surface tension. If left untreated, red blood cells will adhere to the inner walls, ruining the sample. Silanization coats the tube interior to modify this surface tension. It prevents red blood cell adhesion and ensures smooth compatibility with various chemical additives.

Best Practice: Always validate your silanization fluid application. Uneven coating leads to micro-clotting in patient samples, triggering immediate batch rejections from hospital laboratories.

Step-by-Step Workflow of an Automatic Blood Tube Production Line

Operating an Automatic blood tube production line requires meticulous coordination. You must transform raw, empty cylinders into precision diagnostic consumables. This linear breakdown outlines the mechanical processes required to execute a high-yield production run.

1. Stage 1: Tube Loading and UDI Labeling: The line begins with high-speed, automated sorting. Hoppers align the empty tubes and feed them onto the conveyor. The machinery then applies precise UDI labels. This ensures absolute hospital-level traceability before any chemicals enter the tube.

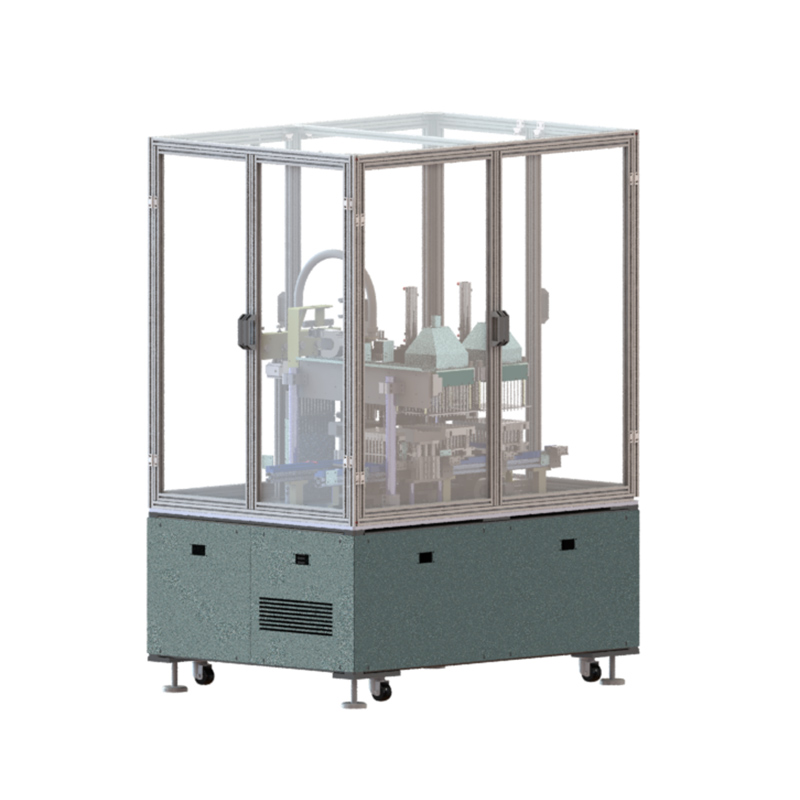

2. Stage 2: Dosing and Additive Application: The system injects specific chemical agents. These include EDTA, Citrate, Heparin, or separation gels. Implementation Detail: High-end machinery uses an inline centrifuge process. This applies radial force to the tubes. The force ensures liquid or spray additives coat the inner wall uniformly without pooling at the bottom.

3. Stage 3: Drying: Wet additives require immediate stabilization. The line routes tubes through controlled thermal or air-drying systems. These modules stabilize the chemical additives without degrading their active diagnostic properties. Overheating here will destroy the reagents.

4. Stage 4: Cap and Stopper Assembly: Automated mechanics merge the silicone stopper with the plastic safety cap. Equipment typically employs up-press or push-down servo mechanics to firmly seat the closure unit just above the tube opening.

5. Stage 5: Vacuum Creation and Sealing: This step determines final product accuracy. The machine draws negative pressure, typically controlled between 150-600 mmHg. This guarantees precise blood draw volumes. Technical Nuance: Advanced lines may flush tubes with CO2 instead of standard nitrogen or argon. CO2 flushing prevents the "wash-out" of inherent carbon dioxide from patient blood samples. This crucial step preserves accurate testing results.

6. Stage 6: Shrink Packaging: The sealed tubes undergo automated batching. Equipment uses heat-shrink mechanisms and aluminum-plastic packaging. This creates secure, transit-ready trays protected from moisture and physical impacts.

Overcoming High-End Manufacturing Risks: PT Double-Wall and Vacuum Stability

Standard production lines often run smoothly until facility managers attempt to scale complex products. Adapting to niche diagnostic tubes, such as those used for coagulation testing, introduces severe failure risks.

The PT Double-Wall Challenge

Coagulation (PT) tests have zero tolerance for draw-volume fluctuations. Standard plastic tubes lose trace amounts of vacuum over time. Therefore, manufacturers require double-wall designs. These feature an inner chemical-stable tube combined with an outer mechanical-strength tube. This dual structure permanently prevents vacuum leakage.

Concentricity Control

Assembling double-wall tubes represents the highest technical hurdle in manufacturing. You must maintain absolute concentricity control. If the inner tube misaligns even slightly during high-speed insertion, the machine causes micro-cracks. These invisible cracks lead to immediate batch failure and compromised sterile barriers.

Machine Synchronization vs. Material Blame

Facility managers frequently misattribute defective vacuums to poor rubber stoppers. In reality, materials rarely cause sudden vacuum drops. The root cause usually involves poor machine synchronization. If the servo motors controlling the vacuum draw and the capping mechanism fall out of sync by fractions of a second, the tube seals at the wrong pressure. You must audit motor synchronization regularly to maintain yield rates.

Quality Control, Sterilization, and Compliance Testing

Releasing medical consumables requires stringent exit criteria. You must establish multi-dimensional evaluation protocols to catch defects before market release.

Physical Integrity Testing

Every batch requires rigorous physical stress tests. You must execute leak testing to verify airtightness. A compromised seal introduces atmospheric air, ruining the drawn volume ratio. Additionally, you must conduct strength testing. The tubes face intense centrifuge forces in hospital laboratories; they must demonstrate high breakage resistance under stress.

Chemical and Biocompatibility Analysis

Product safety relies on material purity. You must perform batch testing for trace heavy metals. Unintended plasticizer leaching can fundamentally alter blood sample chemistry. You must isolate and test tubes from different production runs to verify long-term chemical stability.

Industrial Sterilization Protocols

You cannot ship unsterilized medical products. Facilities execute post-packaging sterilization to ensure a completely microbe-free product. Common protocols utilize Ethylene Oxide (EO) gas or Gamma/Electron-beam Radiation.

Common Mistake: Choosing a sterilization method without verifying additive compatibility. Certain chemical gels degrade under Gamma radiation. Always cross-reference your reagent properties with your sterilization vendor.

How to Evaluate a Blood Tube Manufacturer and Equipment Partner

Investing in turnkey production lines requires rigorous vetting. You need criteria for shortlisting equipment vendors or selecting an OEM partner.

Specialization over Generalization

Many machinery vendors assemble generic conveyor belts and rebrand them. Avoid this. Look for a vendor that designs proprietary tooling for critical stages. They must demonstrate profound expertise in silanization mechanics and centrifuge dosing. When evaluating a Blood tube manufacturer, ask to see their proprietary engineering blueprints for vacuum retention stations.

Automation and Yield Rates

Do not judge a line solely by its maximum theoretical speed. Assess the line's continuous output capacity and documented defect rates. Focus heavily on vacuum stability over a 12-month shelf life. A machine running at maximum speed is useless if it generates a five percent vacuum failure rate.

Support and SLA Architecture

As established earlier, machine synchronization is vital. Mechanical drift happens. You must prioritize partners offering robust Service Level Agreements (SLAs). They should provide extensive operational training for your local engineers. Furthermore, demand rapid replacement parts availability. A delayed servo motor replacement can halt your entire facility, causing massive operational downtime.

Conclusion

Transitioning into diagnostic consumable manufacturing is highly lucrative but technically unforgiving. Success hinges on much more than acquiring raw materials. You must master fluid dynamics, understand vacuum physics, and enforce perfect electro-mechanical synchronization across your facility.

To move forward successfully, take the following action steps:

• Commission a tailored feasibility study mapping out your specific facility constraints.

• Focus heavily on designing your ISO Class 7 or 8 cleanroom requirements before buying machinery.

• Identify your specific diagnostic additive capabilities to ensure equipment compatibility.

• Secure an SLA-backed partnership focused on long-term machine synchronization and rapid maintenance.

FAQ

Q: What is the standard ISO requirement for manufacturing blood collection tubes?

A: Production typically requires an ISO Class 7 or 8 cleanroom environment to meet ISO 13485 quality management standards and prevent sample contamination.

Q: How does an automatic blood tube production line maintain exact draw volumes?

A: Draw volume is dictated by precise negative pressure (vacuum). The automated line uses highly synchronized servo-driven vacuum and capping stations to trap exact pressure levels (e.g., 150-600 mmHg) before the stopper is fully seated.

Q: Can the same production line handle both PET plastic and glass tubes?

A: While some hybrid systems exist, handling mechanisms usually need to be specialized. Glass requires softer, slower handling to prevent micro-fractures, whereas PET lines can run at much higher speeds.

Q: Why is silanization necessary in plastic blood tubes?

A: Silanization modifies the surface tension of the inner wall, preventing red blood cells from adhering to the plastic and ensuring additives mix smoothly with the drawn blood.
