Transitioning from manual or legacy systems to a fully automated blood collection tube production machine requires significant technical planning. Success requires balancing precision engineering with compliance across cGMP and ISO standards. You must eliminate human error and ensure absolute sterility. Manufacturing clinical-grade consumables demands flawless execution. Investors, facility directors, and procurement managers often struggle to map exact hardware requirements. You need a realistic, evidence-based breakdown of the machinery required to meet strict medical standards. Selecting the right equipment defines your output reliability. It also determines how quickly you can scale operations to meet clinical demands.
We will explore the complete production ecosystem, from component fabrication to automated assembly. You will learn how to evaluate critical machinery modules. We will also outline quality control integration and implementation risks when specifying a new production line.
A complete manufacturing setup is divided into front-end component fabrication (injection molding) and multi-station automated assembly lines.
Selecting the right blood collection tube production machine requires anchoring hardware choices (e.g., dosing pump types, drying mechanisms) to specific yield targets and spatial footprints.
Quality control integration—specifically CCD vision inspection and automated vacuum leak testing—is non-negotiable for meeting clinical safety standards.
Shortlisting an equipment OEM should follow a strict methodology: define output capacity, map process modules, and match hardware to specific tube consumables (PET vs. glass, gel types).
Making a blood collection tube requires two distinct phases. Buyers must first decide their operational scope. Will you manufacture raw components in-house? Or will you strictly assemble pre-made parts? Understanding this distinction helps you allocate resources effectively.
Front-end production focuses on creating the physical tubes and caps. You rely on all-electric injection molding machines for this task. These machines manufacture durable PET plastic tubes and specific plastic caps. Top-tier molding systems utilize servo-closed-loop controls, such as those designed by Siemens, to guarantee precise material distribution.
High-precision molding severely reduces physical defects. It prevents micro-cracks in PET tubes. Additionally, modern electric machines use energy-regenerative circuits. These circuits recover kinetic energy and reduce operational power demands across the facility. This creates a highly efficient manufacturing baseline before assembly even begins.

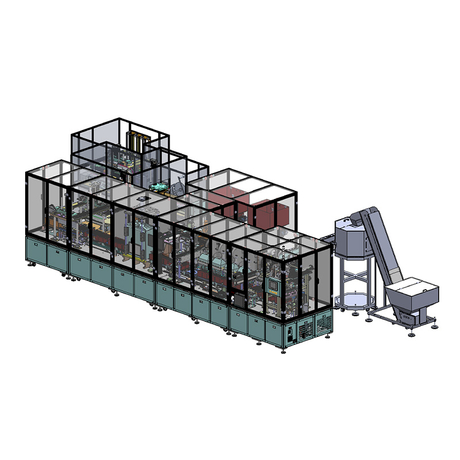

Once you secure raw tubes and caps, back-end assembly takes over. This phase utilizes the core automated assembly line. Here, machines integrate raw tubes, rubber stoppers, and specific chemical additives. They transform basic components into finished clinical products ready for hospital use.
A standard industrial assembly line processes between 8,000 to 12,000 tubes per hour. Achieving this speed requires highly synchronized sequential machinery stations. Each module executes a precise function without disrupting continuous flow.

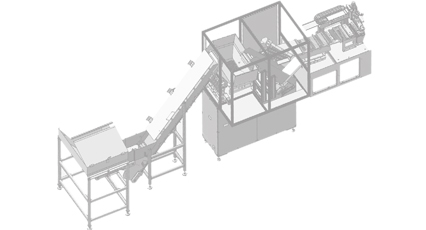

The assembly journey begins here. You utilize an Automatic Tube Sorting Machine to organize bulk inventory. Hopper systems hold thousands of raw tubes. Robotic sorting mechanisms systematically align them. They ensure scratch-free, standardized orientation for both PET and glass tubes entering the primary track.
Chemical integration dictates the clinical utility of the tube. A dedicated Blood Collection Tube Liquid Filling Machine handles this sensitive task. Exact volumetric dosing remains critical. Additives like EDTA, Sodium Citrate, and Heparin require microscopic precision to maintain proper blood-to-additive ratios.
After liquid dosing, the line must handle thixotropic separation gels. You rely on offline or inline centrifuge machines for this step. Centrifuges apply radial force. This force evenly distributes heavy gels at the exact bottom of the tube. They prevent the gel from adhering to the side walls.
Finally, the drying stations process sprayed reagents, such as internal silicone coatings. They use high-pressure fans combined with PTC heating elements. They dry the interior quickly without melting or compromising the plastic tube integrity.
Machines securely unite the rubber stopper and the plastic cap using a cap-and-stopper combination module. This machinery accommodates both up-press and push-down cap designs. Once assembled, the tubes enter the vacuum sealing station.
Vacuum sealing is the defining feature of these clinical devices. The machine places the unsealed tubes inside a controlled atmospheric chamber. It draws specific negative pressures before pressing the stopper completely shut. This precise negative pressure guarantees the exact "draw volume" required in clinical settings.
Before leaving the sterile zone, the tubes undergo inline high-speed labeling. Batch coding mechanisms print expiry dates and lot numbers directly onto the labels. Afterward, shrink packaging systems group the tubes. They use heat-shrink trays or robust aluminum-plastic blister packs. This packaging protects the final products during transit. It also maintains essential sterility before bulk Ethylene Oxide (EO) or Gamma sterilization occurs.
You must look beyond basic spec sheets when evaluating a vendor's equipment. Hardware choices directly influence daily production reliability. You need specific evaluation criteria to make informed procurement decisions.
Space utilization remains a critical metric. You must assess floorspace against expected hourly yields. When evaluating footprints, consider these configurations:
Compact cGMP-Compliant Systems: These require only 3 to 4 operators. They suit medium-volume operations and fit inside smaller cleanroom environments.
Modular Large-Scale Lines: These handle continuous flow manufacturing. They demand more floor space but allow for rapid output scaling and future module additions.
You must choose dosing hardware based on the specific chemicals processed. Highly viscous gels require completely different pump tolerances compared to liquid anticoagulants.
Pump Type | Best Used For | Key Characteristic |
|---|---|---|
Ceramic Pumps | Highly viscous thixotropic gels | High wear resistance and zero chemical degradation over time. |
FMI Metering Pumps | Liquid anticoagulants (EDTA, Heparin) | Valveless operation providing micro-liter volumetric precision. |
Pinch Valves | Sterile silicone coatings | Prevents fluid from touching moving mechanical parts. |
Many facilities install standard rotary pumps for all additives. This degrades separation gels and causes micro-bubbles. You must match the pump architecture to the fluid viscosity to ensure clinical validity.
Modern production cannot rely on human visual inspection. You must evaluate the integration of CCD Vision Inspection systems. High-resolution cameras scan every tube moving down the track. They autonomously detect under-filled additives, misaligned caps, or cracked glass. The machine must physically eject these defective units into a rejection bin without halting the entire line.
Medical consumables carry strict liability. The production machinery must inherently support regulatory validation. Quality assurance is not an optional upgrade; it serves as the foundation of your manufacturing process.
Ensure the machinery design supports international compliance standards. The hardware architecture must align with ISO 13485 protocols. If you target global markets, the equipment must also meet FDA registration standards and satisfy CE marking requirements. This involves rigorous Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ).
Top-tier machines execute critical inline testing. They perform automated vacuum leak tests to verify atmospheric stability. They also conduct additive volume verification using infrared or vision sensors. These protocols prevent downstream clinical errors. For example, they eliminate the risk of lab sample rejections caused by improper blood-to-additive ratios.
Production lines frequently switch between different tube types. You might transition from Lavender EDTA tubes to Light Blue Citrate tubes in a single afternoon. The machinery requires specific design features to prevent the aerosolization of chemicals between runs. Closed-loop flushing systems and isolated dosing nozzles ensure zero cross-contamination.
Purchasing the machine represents only step one. Installation, tooling development, and continuous operation carry high implementation risks. You need a structured approach to evaluate Original Equipment Manufacturers (OEMs).
Anchor Output Targets: Define the minimum viable volume for your facility. Determine your Minimum Order Quantity (MOQ). This metric dictates the baseline machine speed you require.
Define Process Modules: Map out exactly what chemical gels you plan to use. Opt for non-standard customizations if you handle unique cap designs or highly specialized reagents.
Finalize Consumable Specifications: Ensure the OEM calibrates the line specifically for your chosen material. They must adjust track sensors based on whether you use fragile glass or drop-resistant PET. They must also calibrate grippers to your exact rubber stopper dimensions.
Demand complete transparency from potential vendors. Ask for detailed timelines regarding prototype development and customized tooling requirements. Furthermore, mandate the availability of Factory Acceptance Testing (FAT). You should physically inspect the machine running at the vendor's site. Follow this up with Site Acceptance Testing (SAT) once they install the line in your facility.
Always request a live demonstration using your specific plastic tubes and chemical additives. Do not rely on generic factory testing materials. This reveals the actual mechanical tolerance of their sorting hoppers and dosing pumps.
Investing in automated tube manufacturing is an exercise in strict risk management and precision scaling. You must evaluate every station, from the initial sorting hopper to the final vacuum sealing chamber. Aligning hardware specifications with regulatory validation ensures continuous, reliable output.
Your next step requires an internal audit. Audit your required tube variations, noting the specific "Order of Draw" color codes you intend to produce. Contact prospective manufacturers and request capability demonstrations. Focus specifically on their automated dosing accuracy and long-term vacuum stability metrics.
A: Yes, but it requires specific tooling and sensor adjustments. Glass is fragile and requires different handling tolerances compared to shatter-resistant PET. You must recalibrate robotic grippers and track speeds when switching materials.
A: To force heavy, viscous additives—like thixotropic separation gels—to the bottom of the tube evenly. This prevents the gel from adhering to the tube walls before a nurse introduces the blood sample.
A: Vacuum sealing stations operate in highly controlled, enclosed chambers. The system draws specific negative pressure matching the desired blood draw volume (e.g., 2ml vs 5ml) precisely as the rubber stopper is mechanically seated.
A: Assembly machines typically package the tubes into shrink-wrapped trays. Operators then process these trays offline in bulk. They use Ethylene Oxide (EO) gas or Gamma irradiation to eliminate pathogens.
