Views: 322 Author: Site Editor Publish Time: 2026-02-21 Origin: Site
Setting up a professional blood collection tube production line is a complex undertaking that requires a perfect balance of medical-grade precision and industrial efficiency. For manufacturers entering the diagnostic market or scaling their current operations, the challenge lies in integrating multiple sophisticated modules into a cohesive workflow. It is not just about buying machines; it is about designing a system that ensures vacuum stability, chemical dosage accuracy, and sterile integrity.
In this expert guide, we will break down the essential components of a modern Automatic assembly system. We will explore how to plan your factory layout to minimize contamination risks and how to calculate capacity to meet growing global demands for EDTA tubes and Serum separating solutions. Whether you are aiming for a High speed output or an Energy efficient smaller operation, the following insights will provide the technical roadmap needed for a successful setup.

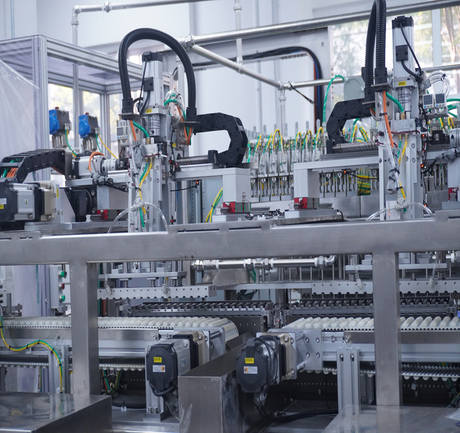

Every blood collection tube production line consists of several critical stations. Each station must function with absolute synchronization to prevent bottlenecks. Understanding these modules is the first step in hardware selection.
Tube Loading and Orientation: This initial phase involves feeding raw tubes into the system. An Automatic loader ensures tubes are positioned correctly for chemical spraying and vacuuming.

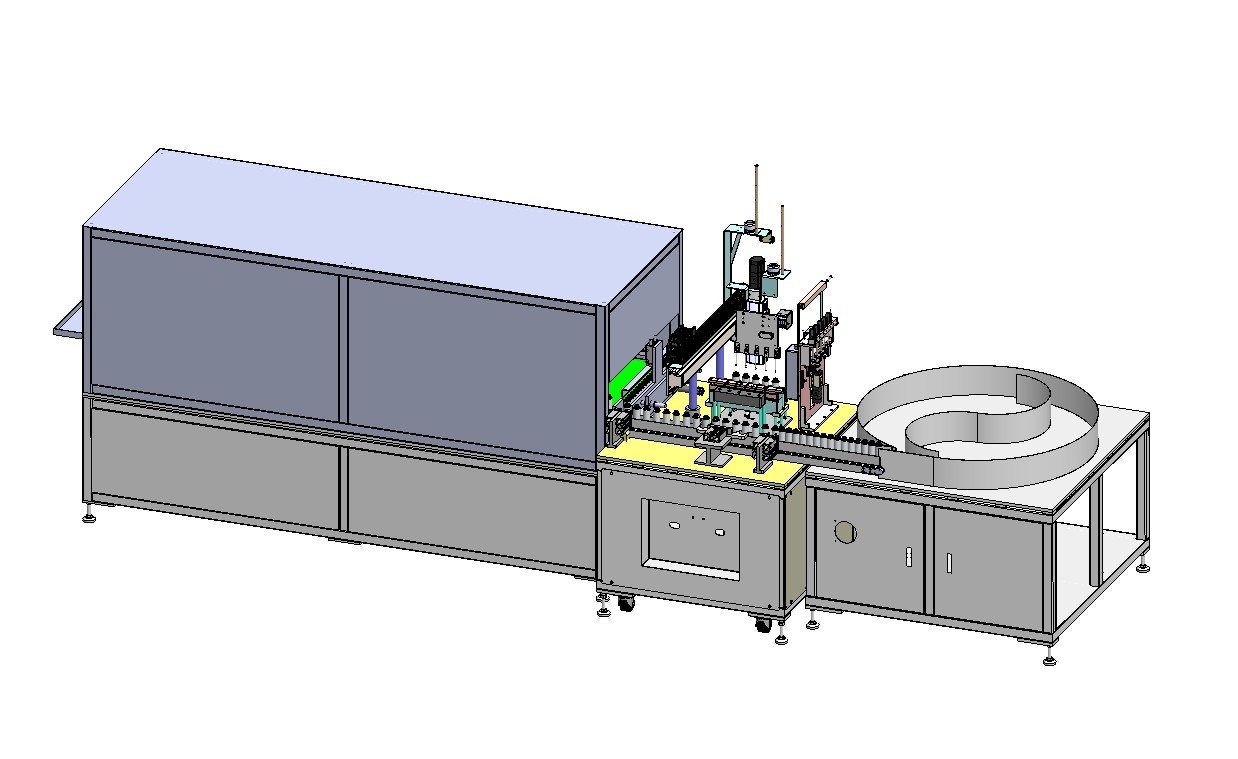

Chemical Dosing (Clot Activator and Anticoagulants): This is the heart of the line. Precision nozzles spray specific reagents. For example, creating an EDTA tube requires micro-liter accuracy to ensure blood samples do not clot prematurely during later diagnostic tests.
Drying System: After chemical application, tubes pass through a drying tunnel. Modern lines utilize Energy efficient infrared or hot air circulation to remove moisture without degrading the chemical additives.
Capping and Vacuuming: This module inserts the rubber stopper and extracts air to create a precise vacuum level. The vacuum determines the blood draw volume, making this a critical quality control point.
Tray Loading and Packaging: Finally, the finished products are arranged into foam or plastic trays, ready for secondary packaging and sterilization.
The physical arrangement of your blood collection tube production line significantly impacts both your yield and your compliance with Medical grade standards. You cannot simply place machines in a row; you must consider the "flow" of materials and personnel.
Most regulatory bodies require these lines to operate within a Class 100,000 (ISO 8) cleanroom or higher. We recommend a U-shaped or L-shaped layout. These designs allow for a single entry point for raw materials and a separate exit point for finished goods. This separation prevents "cross-flow," where dirty packaging materials might come near the open tubes during the dosing phase.
An often-overlooked aspect of layout planning is the proximity to utilities. High speed lines require significant pneumatic power and stable electrical grids. By placing your air compressors and vacuum pumps in a secondary utility room adjacent to the cleanroom, you reduce noise and heat dissipation within the sterile environment. This setup makes the entire operation more Energy efficient by reducing the load on your HVAC system.
| Layout Type | Space Efficiency | Contamination Risk | Best For |
| Straight Line | Low (requires long halls) | Moderate | Small-scale manual labs |
| U-Shape | High | Low | High speed mass production |
| L-Shape | Moderate | Low | Facilities with architectural constraints |
When we discuss capacity for a blood collection tube production line, we look at "Cycles Per Minute" (CPM). However, raw speed is useless if the rejection rate is high. Capacity planning must account for maintenance downtime and quality checks.
A standard High speed line can produce between 12,000 and 18,000 tubes per hour. To find your true capacity, use the formula:
Total Output = (Theoretical Speed x Efficiency Rate)- Quality Rejects
If your line runs at 15,000 tubes per hour with an 85% efficiency rate, your actual hourly yield is 12,750 tubes. Over three shifts, this allows for massive scale-out.
Your capacity planning must also consider "changeover time." If you switch from producing Serum separating tubes (which require gel and clot activator) to EDTA tubes, the machines need cleaning and recalibration. Automatic systems with digital recipe management reduce this downtime from hours to minutes, significantly boosting your annual capacity.
The term Medical grade isn't just a label; it represents a set of technical tolerances that your blood collection tube production line must hit every single time.
For additives like Heparin or EDTA, the line uses ultrasonic atomization. This technology breaks the liquid into a fine mist. Why does this matter? It increases the surface area of the chemical inside the tube. When the blood enters, it reacts instantly. If your dosing module is inconsistent, the vacuum tube becomes a liability for the doctor using it.
The vacuum is the "engine" of the tube. An Automatic line includes an online vacuum testing module. It checks the internal pressure of every 10th or 20th tube. If the pressure deviates from the set point (e.g., 2ml or 5ml draw), the system flags the batch. This ensures that the Serum separating tubes you produce provide consistent results in centrifuges across the globe.
As energy costs rise, manufacturers are looking for an Energy efficient blood collection tube production line. High-speed automation used to mean high electricity bills, but new technology has changed the game.
Older lines relied heavily on pneumatic cylinders. They are loud and leak air. Modern High speed lines now use servo motors for capping and tray loading. Servo motors only consume power when they move. They provide better torque control and are significantly more Energy efficient over a 24-hour production cycle.
The drying station is usually the biggest energy consumer. New systems incorporate heat recovery loops. They capture the hot exhaust air from the drying of EDTA tubes and recirculate it to pre-heat the incoming air. This reduces the heater's workload by up to 30%.
Benefit 1: Reduced operational costs.
Benefit 2: Longer lifespan for heating elements.
Benefit 3: More stable temperature control for sensitive chemicals.
Even the best Automatic blood collection tube production line will fail without a proactive maintenance strategy. You need a modular approach to upkeep.
Modern lines are equipped with sensors that monitor vibration and heat in the motors. They tell you when a bearing is about to fail before it actually breaks. This "predictive" approach is vital for High speed environments where one hour of downtime can cost thousands of dollars in lost production.
Because you are producing Medical grade devices, the cleaning process is rigorous. Components that touch chemicals, especially in the production of Serum separating tubes, must be made of 316L stainless steel. These parts should be easily removable for ultrasonic cleaning or sterilization.
Expert Tip: Always keep a "critical spares" kit on-site. This should include vacuum gaskets, dosing nozzles, and PLC backup batteries. Having these on hand turns a potential two-day delay into a twenty-minute fix.
A blood collection tube production line must produce items that pass ISO 6710 standards. Quality control is not the final step; it is integrated into every H2 and H3 module we have discussed.
High-speed cameras now replace human inspectors. These Automatic vision systems check for:
Correct cap color (e.g., Purple for EDTA tube, Red for Serum).
Proper gel levels in Serum separating tubes.
Presence of physical defects like cracks in the plastic.
In the medical world, if it isn't documented, it didn't happen. Your production line software must log every batch's parameters. This includes the vacuum pressure, the batch of reagent used, and the operator on duty. This data is essential for CE marking and FDA audits.
Different diagnostic tests require different tubes. An expert setup allows for quick customization between different types of blood collection tube production line outputs.
Producing an EDTA tube is about anticoagulant distribution. The line must ensure the K2 or K3 EDTA is sprayed evenly on the interior walls. If it pools at the bottom, it won't mix with the blood fast enough.
Serum separating tubes are more complex because they require the injection of a thixotropic gel. The gel must have the exact density to stay between the cells and the serum during centrifugation. Your line needs a specialized gel heating and pumping station to handle the high viscosity of this material.
The best setups use "plug-and-play" stations. If you need to add a labeling module or a secondary additive station, the conveyor system should allow for easy expansion. This modularity makes your investment future-proof.
Building a blood collection tube production line is a journey that starts with rigorous planning and ends with life-saving diagnostic tools. By focusing on Automatic modules, a strategic layout, and Energy efficient technology, you create a facility that is both profitable and compliant. Remember, the goal is to produce Medical grade tubes that doctors can trust for every patient. From the precision of an EDTA tube to the complexity of Serum separating gel injection, every detail matters in the quest for High speed excellence.
Q1: What is the average footprint required for a high-speed line?
A typical High speed blood collection tube production line requires approximately 150 to 200 square meters of cleanroom space, excluding the packaging and warehouse areas.
Q2: How many operators are needed for an Automatic line?
Usually, 2 to 3 skilled technicians can manage a fully Automatic line. Their primary roles are monitoring the HMI (Human Machine Interface), refilling raw materials, and performing periodic quality checks.
Q3: Can one line produce both glass and plastic tubes?
Yes, but it requires different grippers and loading systems. Plastic tubes are more common today because they are shatterproof and lighter for transport, but many Medical grade lines can be customized for both.
